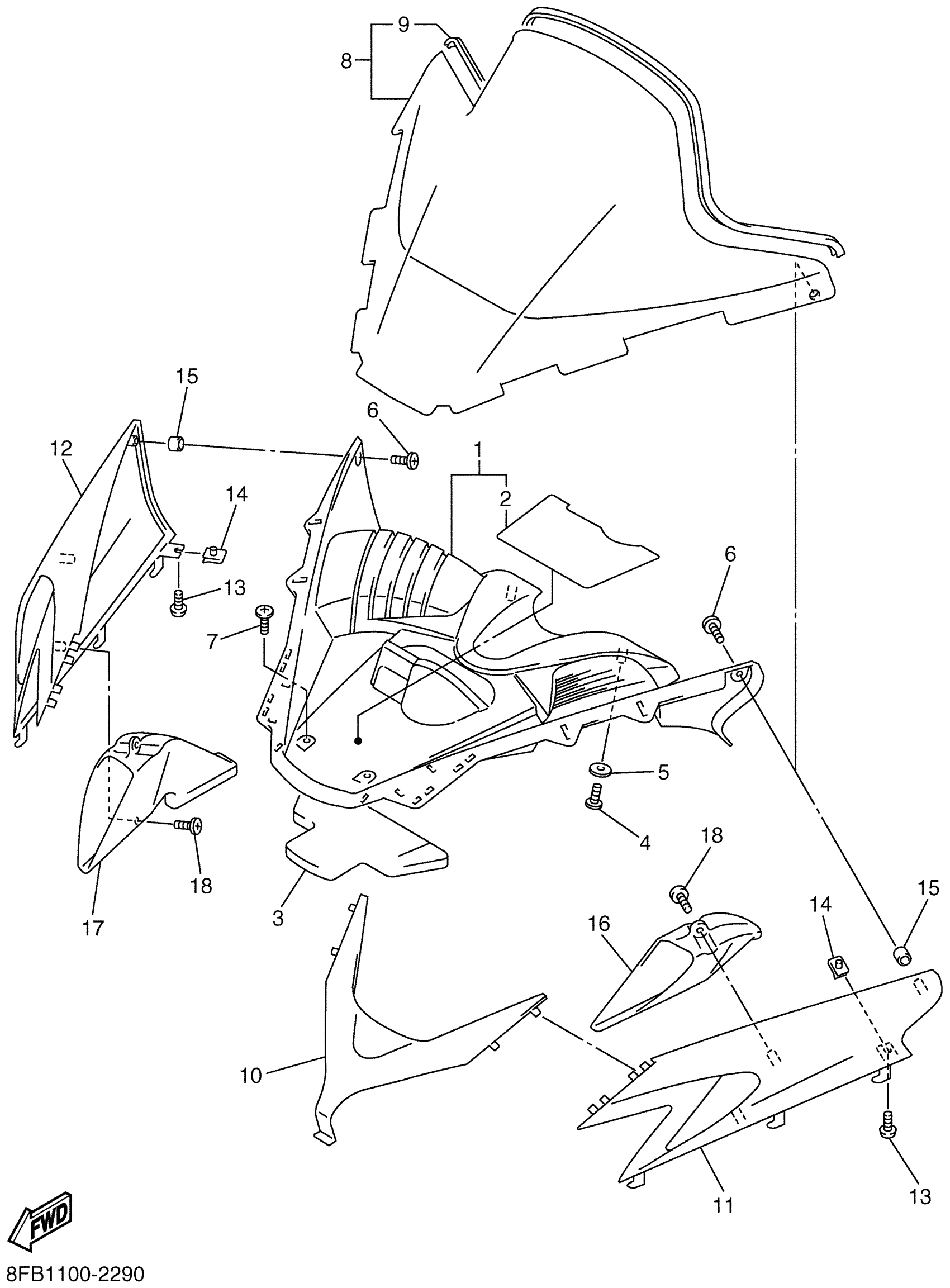

Yamaha SXV700G (SXVIPER) 8EK1 2002 WINDSHIELD Diagram

#

Description
Price

1

COVER, HEADLIGHT

8EK-W7725-10-00

$344.99

2

DAMPER 1

8EK-77198-00-00

$44.99

3

DAMPER, NOISE 17

8EK-77277-00-00

Unavailable

4

SCREW, TAPPING(4TV)

90167-05078-00

$8.49

5

WASHER, PLATE 8067717800

90201-05029-00

$8.49

6

SCREW, TAPPING

90167-05079-00

$4.14

7

SCREW, BINDING

98907-06014-00

$7.99

8

WINDSHIELD COMP.

8EK-K7210-00-00

Unavailable

9

. TRIM, UPPER

8EK-K7213-00-00

Unavailable

10

FAIRING

8EK-77231-00-00

Unavailable

11

FAIRING 2

8EK-7723A-00-00

Unavailable

12

FAIRING 3

8EK-7723B-00-00

Unavailable

13

SCREW, BINDING

98907-06020-00

$8.49

14

NUT, SPRING(4ES)

90183-06069-00

Unavailable

15

DAMPER

8EK-77238-00-00

Unavailable

16

DUCT 1

8EK-2838N-00-00

Unavailable

17

DUCT 2

8EK-2838R-00-00

Unavailable

18

SCREW, TRUSS TAP.

97707-50012-00

Unavailable
