Description

Price

1

GEAR, IMPELLER SHAFT

8DF-12459-00-00

Unavailable

2

BRG,R-B 6001 28MM 28G KY

93306-00105-00

$30.99

3

BRG,R-B 6000 26MM 19G KY

93306-00004-00

$37.99

4

SEAL, MECHANICAL

11H-12438-10-00

$62.99

5

OIL SEAL(8CP)

93102-12461-00

$11.49

6

CIRCLIP (3Y1)

93420-28055-00

$9.49

7

IMPELLER, WATER PUMP

8CH-12451-02-00

Unavailable

8

BOLT, FLANGE

95817-06012-00

$1.43

9

WASHER, SEAL

90210-06001-00

Unavailable

10

COVER, HOUSING

8CH-12422-01-00

Unavailable

11

O-RING

8CH-12439-00-00

$55.99

12

BOLT, FLANGE

95817-06020-00

$3.81

13

BOLT, FLANGE(4LN)

95817-08025-00

$8.49

14

BOLT, FLANGE

95814-06025-00

Unavailable

15

GASKET (4V2)

90430-06166-00

$3.76

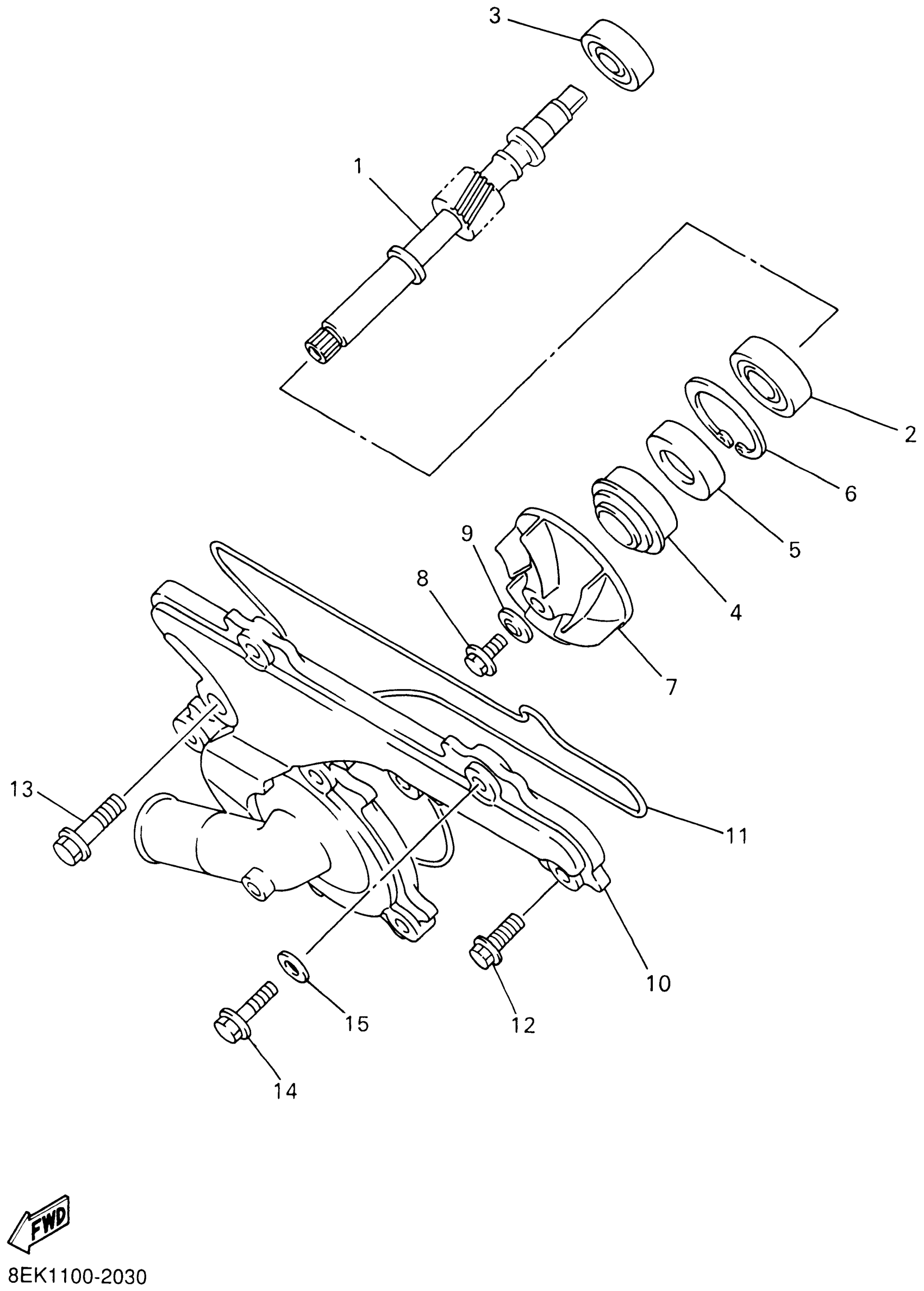

Yamaha SXV700G (SXVIPER) 8EK1 2002 WATER PUMP Diagram

GEAR, IMPELLER SHAFT

BRG,R-B 6001 28MM 28G KY

BRG,R-B 6000 26MM 19G KY

SEAL, MECHANICAL

OIL SEAL(8CP)

CIRCLIP (3Y1)

IMPELLER, WATER PUMP

BOLT, FLANGE

WASHER, SEAL

COVER, HOUSING

O-RING

BOLT, FLANGE

BOLT, FLANGE(4LN)

BOLT, FLANGE

GASKET (4V2)
