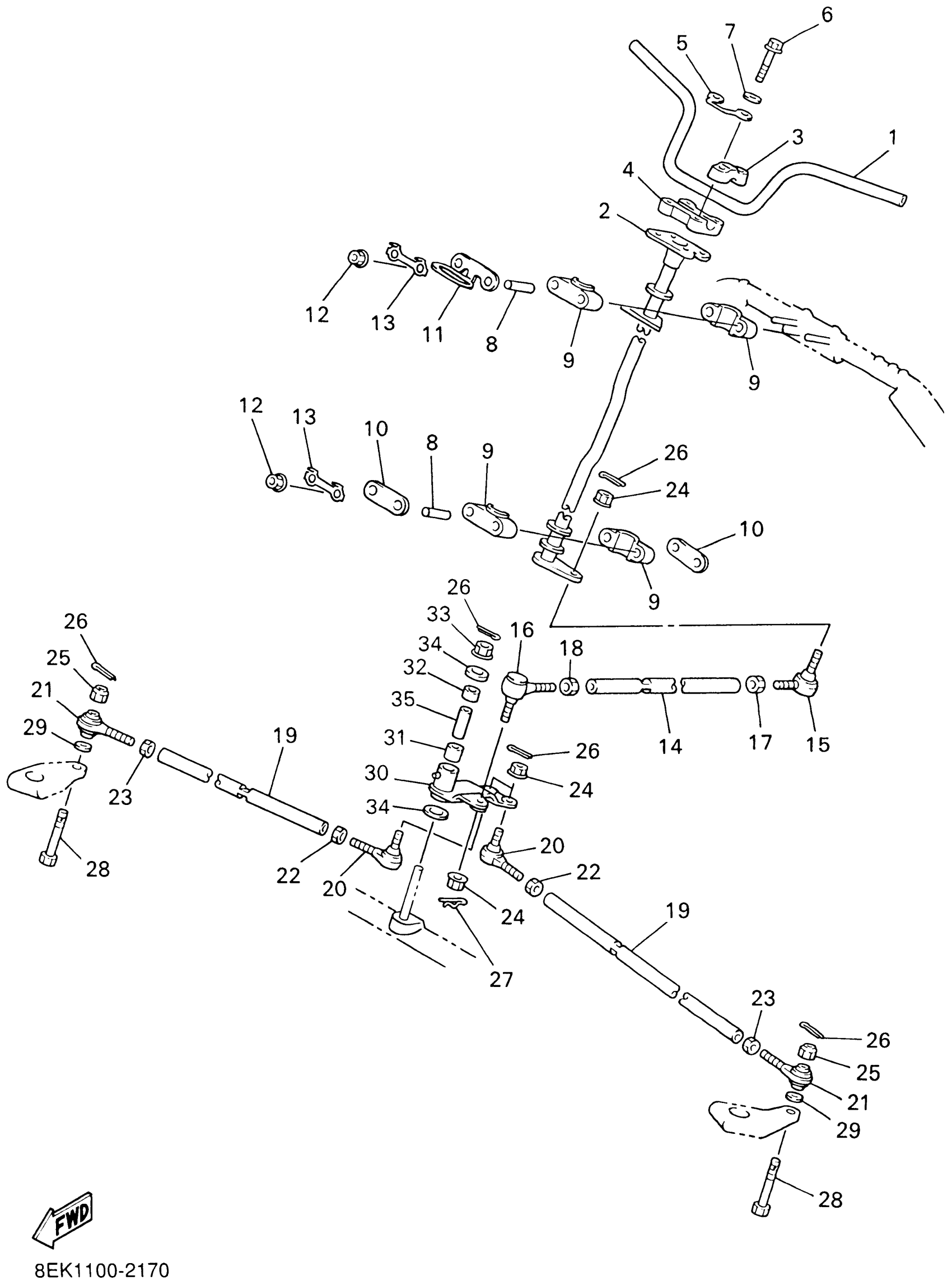

Yamaha SXV700G (SXVIPER) 8EK1 2002 STEERING Diagram
#
1
HANDLE COMP.
8EK-26110-11-00
$64.99
2
COLUMN, STEERING 2
8EG-23813-00-00
Unavailable
3
HOLDER, HANDLE UPPER
1E6-23441-00-00
$27.99
4
HOLDER, HANDLE LOWER
8ED-23442-00-00
Unavailable
5
HOLDER
8DF-23857-00-00
$63.99
6
BOLT, HEXAGON
97017-08055-00
$9.49
7
WASHER(6TA)
92907-08600-00
$3.03
8
COLLAR(85G)
90387-106T4-00
$14.99
9
PLANE BEARING, STEERING
8DF-23812-00-00
$8.99
10
HOLDER, BEARING
8CR-23872-00-00
Unavailable
11
HOLDER, BEARING
8CJ-23872-00-00
$11.99
12
NUT, NYLON
95717-08300-00
$2.70
13
WASHER, LOCK 1
1UY-23894-01-00
$7.99
14
ROD, STEERING RELAY
8CR-23821-00-00
Unavailable
15
JOINT, UNIVERSAL 2
8CR-23845-10-00
$62.99
16
JOINT, UNIVERSAL 3
8CR-23847-00-00
Unavailable
17
NUT (3WP1)
95317-10700-00
Unavailable
18
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
19
ROD, TIE
8CR-23831-00-00
Unavailable
20
JOINT, UNIVERSAL 2
8CR-23845-10-00
$62.99
21
JOINT, UNIVERSAL 3
87S-23847-01-00
Unavailable
22
NUT (3WP1)
95317-10700-00
Unavailable
23
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
24
NUT, FLANGE(8AB)
95707-10500-00
Unavailable
25
NUT, NYLON
95707-10300-00
Unavailable
26
PIN, COTTER
91490-25020-00
Unavailable
27
CLIP 136253750000
90468-12006-00
Unavailable
28
BOLT, PIN HOLE (8M6)
90102-10044-00
Unavailable
29
WASHER PLATE (3L6)
90201-08759-00
Unavailable
30
ARM, IDLER
8EK-23826-00-00
Unavailable
31
BEARING, CYLINDRICAL(3VR)
93317-41767-00
Unavailable
32
BEARING
93317-41785-00
Unavailable
33
NUT, U FLANGE
95607-12200-00
Unavailable
34
WASHER, PLATE
90201-121U3-00
Unavailable
35
COLLAR
8DF-2412G-00-00
Unavailable
