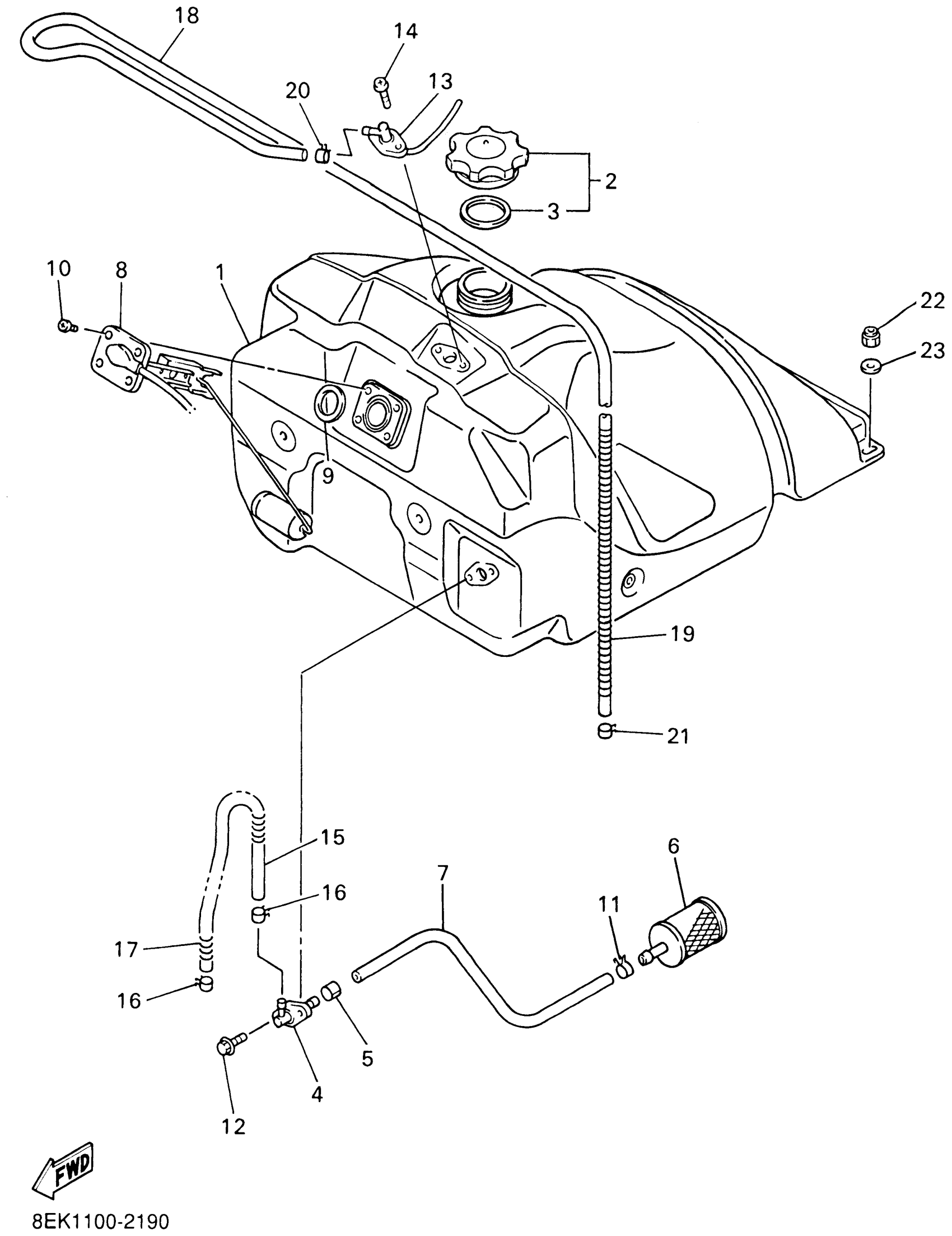

Yamaha SXV700G (SXVIPER) 8EK1 2002 FUEL TANK Diagram
#
Description
Price
1
TANK, FUEL
8EK-24111-00-00
Unavailable
2
GAS CAP ASSY, W/O GAUGE
8CW-24610-01-00
Unavailable
4
SUCTION PIPE COMP. 1
8CR-24301-01-00
Unavailable
5
CLIP
90468-04092-00
Unavailable
6
FILTER ASSY
8H5-24560-00-00
Unavailable
8
SENDER UNIT ASSY, FUEL METER
8CW-85752-00-00
Unavailable
13
BREATHER COMP.
8CR-2418A-00-00
Unavailable
15
PIPE, FUEL 1
8CR-24311-10-00
Unavailable
17
SPRING, COMPRESSION (10L)
90501-08668-00
Unavailable
18
TUBE, FLEXIBLE VINYL(8AT)
91A20-05145-00
Unavailable
19
SPRING, COMPRESSION (10L)
90501-08668-00
Unavailable
20
CLIP (2A6)
90468-02078-00
Unavailable
21
CLIP
90467-09001-00
Unavailable
22
NUT, NYLON
95717-08300-00
Unavailable
23
WASHER, PLATE (3L7)
90201-08784-00
Unavailable
