- SXV700G (SXVIPER) 8EK1 2002
ALTERNATE ELECTRICAL 1

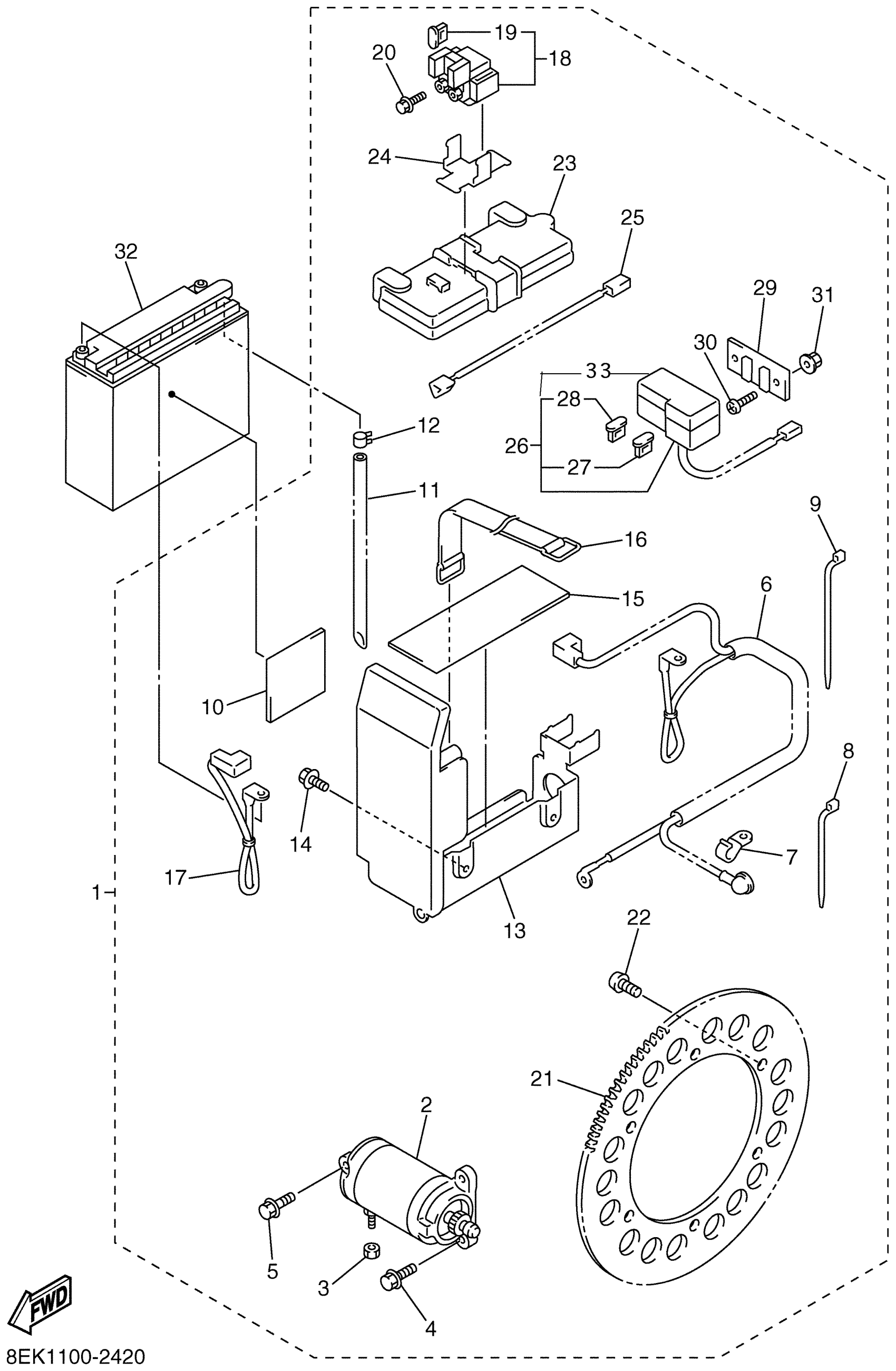

Yamaha SXV700G (SXVIPER) 8EK1 2002 ALTERNATE ELECTRICAL 1 Diagram
#
1
ELECTRIC START KIT
8EK-W8180-01-KT
Unavailable
2
STARTING MOTOR ASSY
8CW-81800-01-00
Unavailable
3
NUT(6TA)
95317-06600-00
$3.55
4
BOLT, SMALL FLANGE
95027-08030-00
$3.76
5
BOLT, FLANGE(4ES)
95027-08080-00
Unavailable
6
HARNESS, WIRE
8EK-82105-00-00
Unavailable
7
CLAMP
90462-08016-00
$26.99
8
CLAMP(4FM)
90464-15195-00
$4.41
9
CLAMP(4FM)
90464-15195-00
$4.41
10
DAMPER
8CW-82176-00-00
Unavailable
11
PIPE (L320)
8CW-8235W-01-00
Unavailable
12
CLIP(41W)
90467-08092-00
$9.49
13
. BATTERY BOX COMP
8FB-8212X-00-00
Unavailable
14
BOLT (796)
90109-06513-00
$3.55
15
. SEAT, BATTERY
8DM-82122-00-00
Unavailable
16
BAND, BATTERY
8DM-82131-10-00
Unavailable
17
WIRE, PLUS LEAD
8DY-82115-00-00
Unavailable
18
STARTER RELAY ASSY (RC19-005)
4BH-81940-02-00
Unavailable
19
FUSE (12V 30A)
1AE-82151-00-00
Unavailable
20
BOLT, SMALL FLANGE
95027-06008-00
Unavailable
21
GEAR 1
8DM-1760A-18-00
Unavailable
22
SCREW, CROSSRECESSED ROUND
90150-08008-00
Unavailable
23
COVER, BATTERY
8DM-82129-01-00
Unavailable
24
. HOLDER, RELAY
8CY-81952-00-00
Unavailable
25
. WIRE, LEAD
8EK-82541-00-00
Unavailable
26
. FUSE BOX ASSY
8EK-82170-00-00
Unavailable
27
. FUSE (10A)
67F-82151-40-00
Unavailable
28
FUSE
5JJ-82151-20-00
Unavailable
29
BRACKET
JT1-83614-00-00
Unavailable
30
SCREW, PAN
98507-06014-00
Unavailable
31
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
32
Y50N18LA YUASA BATTERY
Y50-N18LA-00-00
Unavailable
33
. BOX, COVER
1AE-82172-00-00
Unavailable
