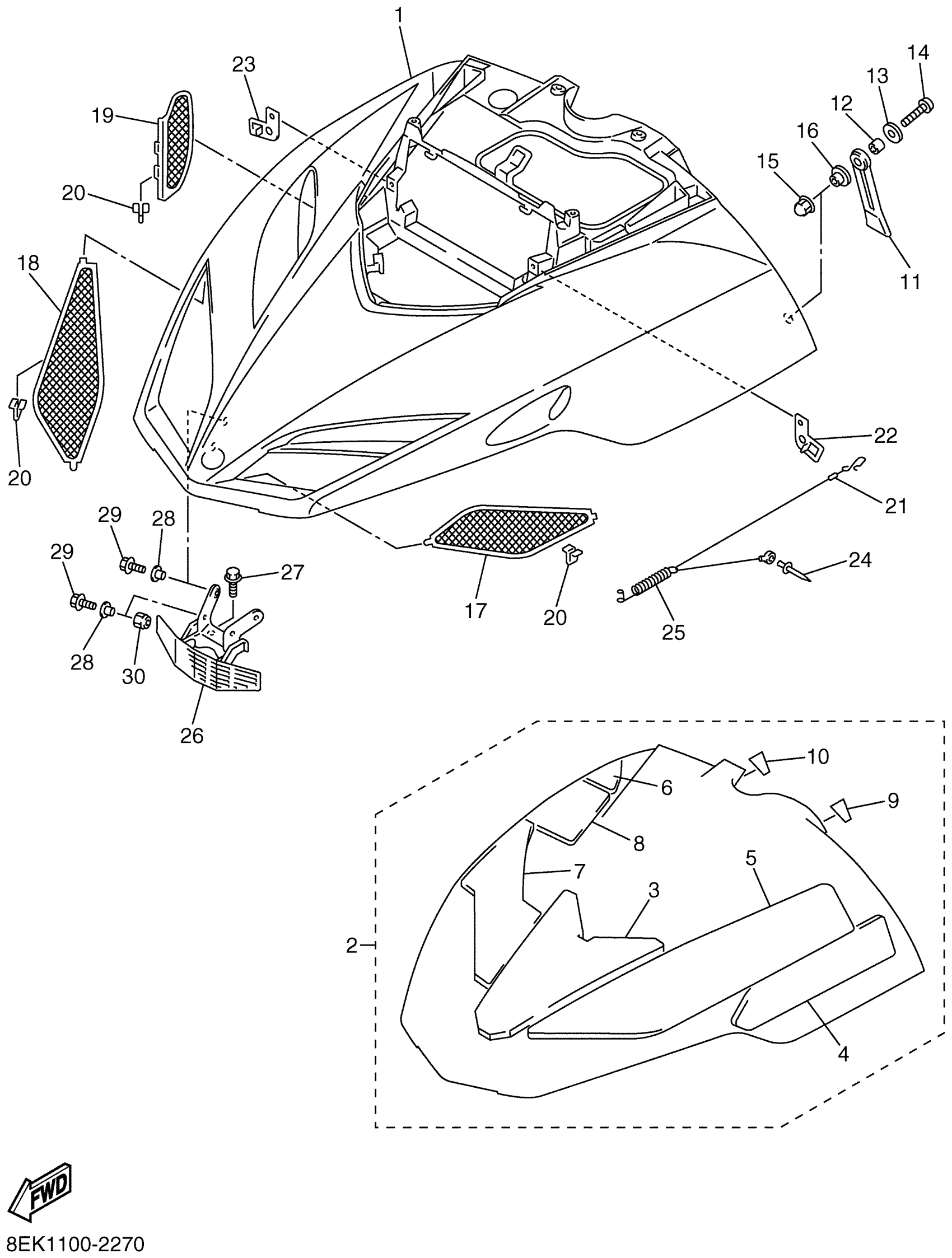

Yamaha SXV700ERG (SXVIPER ER (ELEC START)) 8FB1 2002 SHROUD Diagram
#
1
SHROUD
8FB-77111-01-00
Unavailable
2
LINING SET
8EK-W7726-00-00
Unavailable
3
DAMPER, NOISE 11
8EK-77271-00-00
Unavailable
4
. DAMPER, NOISE 13
8EK-77273-00-00
Unavailable
5
. DAMPER, NOISE 14
8EK-77274-00-00
Unavailable
6
. DAMPER, NOISE 15
8EK-77275-00-00
Unavailable
7
. DAMPER, NOISE 16
8EK-77276-00-00
Unavailable
8
DAMPER, NOISE 18
8EK-77278-00-00
Unavailable
9
DAMPER, SHROUD
8EK-77196-00-00
Unavailable
10
DAMPER 2
8EK-77199-00-00
Unavailable
11
BODY, LATCH 1
8V0-77171-00-00
$21.99
12
COLLAR (420)
90387-06241-00
$8.49
13
WASHER, PLATE
90201-06557-00
$3.30
14
SCREW, BINDING
98907-06025-00
$8.49
15
NUT, CROWN(1FN)
90176-06055-00
$5.60
16
C0LLAR
90387-062M9-00
Unavailable
17
LOUVER 1
8EK-77131-00-00
Unavailable
18
LOUVER 2
8EN-77132-00-00
Unavailable
19
LOUVER 3
8EK-77133-00-00
Unavailable
20
CLIP
90468-06001-00
Unavailable
21
STOPPER, SHROUD
8EK-77118-00-00
Unavailable
22
STAY 1
8EK-77125-00-00
Unavailable
23
STAY 2
8EK-77126-00-00
Unavailable
24
RIVET, BLIND
90267-48018-00
Unavailable
25
CLAMP, ROD
89A-77159-00-00
Unavailable
26
HINGE ASSY
8EK-77140-00-00
Unavailable
27
BOLT, FLANGE
95817-06016-00
Unavailable
28
COLLAR (8G8)
90387-06681-00
Unavailable
29
BOLT, FLANGE
95817-06016-00
Unavailable
30
NUT, SELF-LOCKING
95617-06100-00
Unavailable
