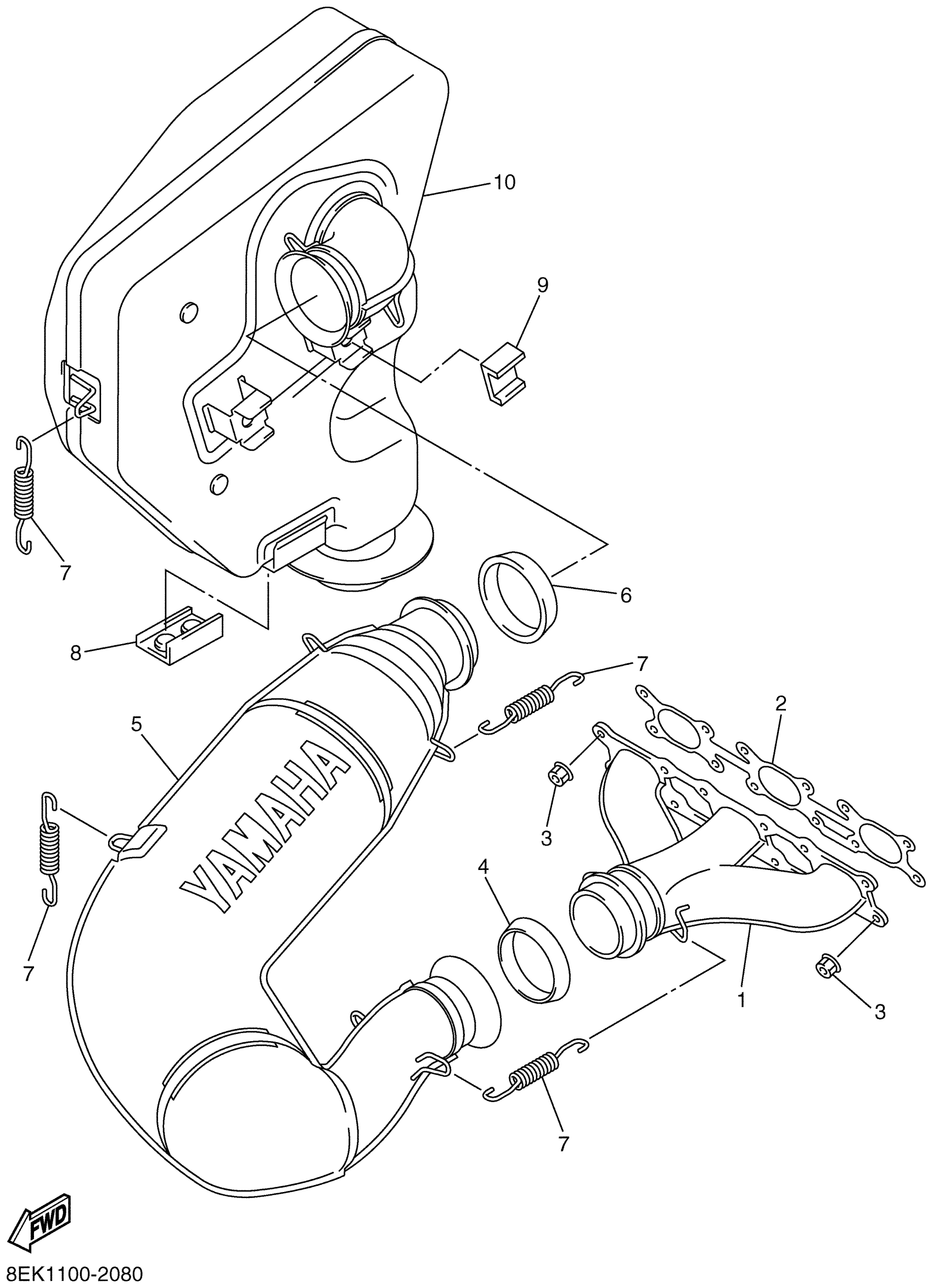

Yamaha SXV700ERG (SXVIPER ER (ELEC START)) 8FB1 2002 EXHAUST Diagram

#

Description

Price

1

EXHAUST PIPE ASSY 1

8EK-14610-00-00

Unavailable

2

GASKET, EXHAUST PIPE

8EK-14613-00-00

$67.58

3

NUT, FLANGE(4MV)

95707-06500-00

$0.73

4

GASKET, MUFFLER

8CA-14714-00-00

$49.64

5

EXHAUST PIPE ASSY 2

8EK-14620-00-00

Unavailable

6

GASKET, MUFFLER

8EK-14714-00-00

Unavailable

7

SPRING, TENSION (8R7)

90506-20272-00

$8.78

8

PROTECTER, MUFFLER 3

8EK-14738-00-00

Unavailable

9

PROTECTOR, MUFFLER 2

8EK-14728-00-00

Unavailable

10

SECOND SILENCER, MUFFLER

8EK-14640-00-00

Unavailable
