- SXV700ERG (SXVIPER ER (ELEC START)) 8FB1 2002
CYLINDER HEAD

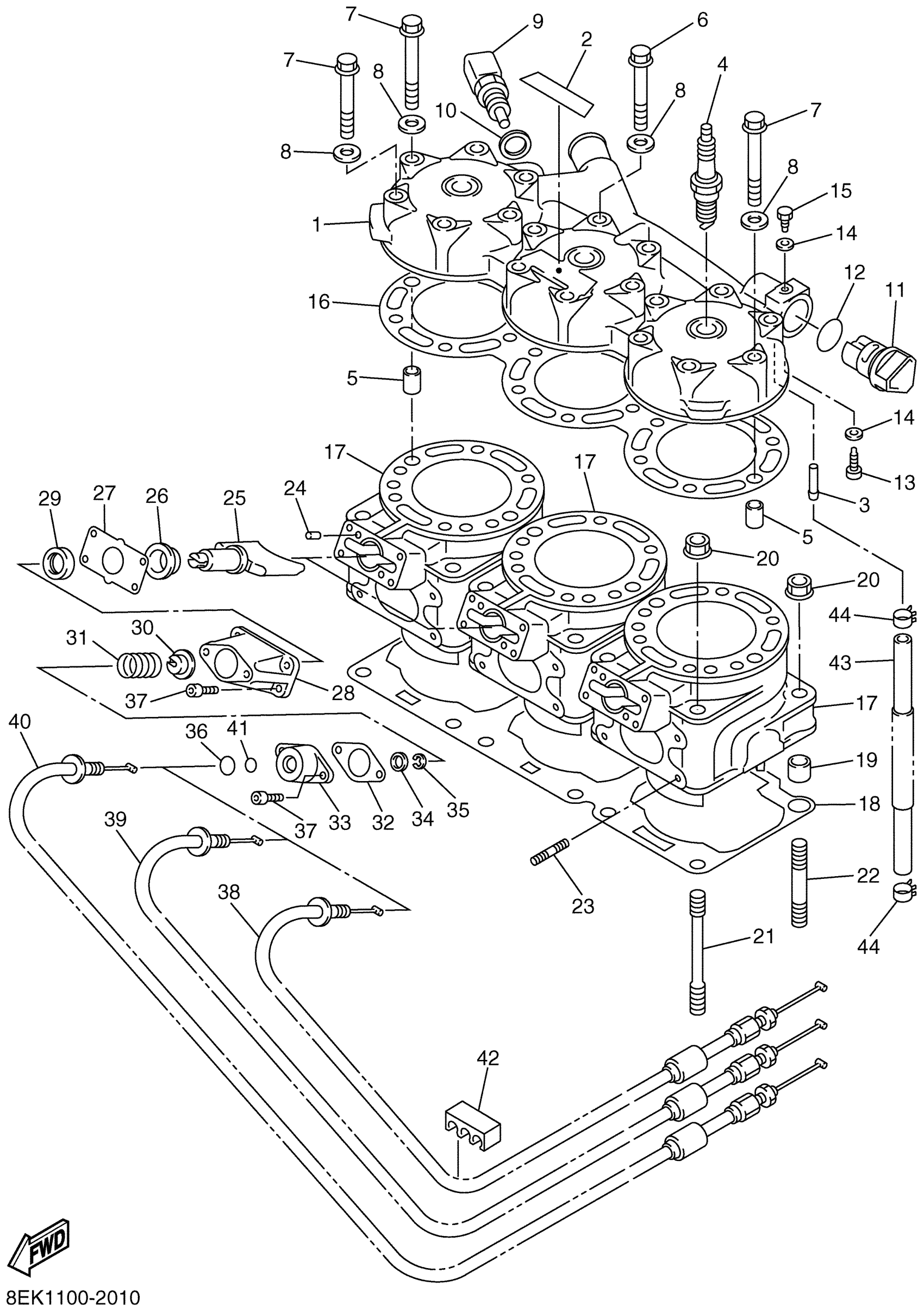

Yamaha SXV700ERG (SXVIPER ER (ELEC START)) 8FB1 2002 CYLINDER HEAD Diagram
#
1
HEAD, CYLINDER 1
8FE-11111-00-00
Unavailable
2
EMBLEM
8EK-1111K-00-00
Unavailable
3
JOINT, HOSE 3
26H-12584-00-00
Unavailable
4
BR9ES NGK SOLID TOP PLUG 4PK
BR9-ES01P-C0-00
Unavailable
5
PIN, DOWEL(3VD)
99530-10114-00
$2.55
6
BOLT, FLANGE
95817-08055-00
$4.21
7
BOLT, WASHER BASED
90105-084A1-00
$10.49
8
WASHER, PLATE
90201-080L8-00
$4.41
9
THERMOSENSOR ASSY
8CC-85790-01-00
$95.99
10
WASHER, PLATE
90201-12790-00
$9.49
11
COCK, DRAIN
8DF-12478-00-00
Unavailable
12
O-RING (646)
93210-19123-00
Unavailable
13
BOLT
90109-063E8-00
Unavailable
14
WASHER, SEAL (7G5)
90210-06006-00
$9.49
15
BOLT (583 TACHOMETER)
90109-06418-00
$9.49
16
GASKET, CYLINDER HEAD 1
8EK-11181-00-00
Unavailable
17
CYLINDER 1
8EK-11311-00-00
Unavailable
18
GASKET, CYLINDER
8EK-11351-00-00
Unavailable
19
PIN, DOWEL
99530-14016-00
Unavailable
20
NUT, FLANGE(8AB)
95707-10500-00
Unavailable
21
BOLT, STUD (26H)
90116-10411-00
Unavailable
22
BOLT, STUD(1JK)
90116-10506-00
Unavailable
23
BOLT, STUD
90116-06031-00
Unavailable
24
PIN, DOWEL (278)
93604-08071-00
Unavailable
25
VALVE 1
8EK-1131A-00-00
Unavailable
26
HOLDER 1
8EK-1131E-00-00
Unavailable
27
GASKET
8DF-11354-03-00
Unavailable
28
HOLDER 2
8DF-1131F-01-00
Unavailable
29
OIL SEAL
93109-15074-00
Unavailable
30
SEAT, SPRING
8DF-11317-01-00
Unavailable
31
SPRING, COMPRESSION
90501-120L7-00
Unavailable
32
GASKET
8DF-11397-10-00
Unavailable
33
HOLDER 3
8DF-1131U-01-00
Unavailable
34
WASHER, PLATE
90201-092U3-00
Unavailable
35
CIRCLIP(53L)
99001-06600-00
Unavailable
36
O-RING (1J7)
93210-09350-00
Unavailable
37
BOLT, SOCKET
91317-05016-00
Unavailable
38
CABLE, PULLEY 1
8EK-1133E-00-00
Unavailable
39
CABLE, PULLEY 2
8EK-1133F-00-00
Unavailable
40
CABLE, PULLEY 3
8EK-1133G-00-00
Unavailable
41
O-RING (26H)
93210-06632-00
Unavailable
42
CLAMP
90464-06253-00
Unavailable
43
PIPE 8
8EK-1248A-00-00
Unavailable
44
CLIP(3BM)
90467-10135-00
Unavailable
