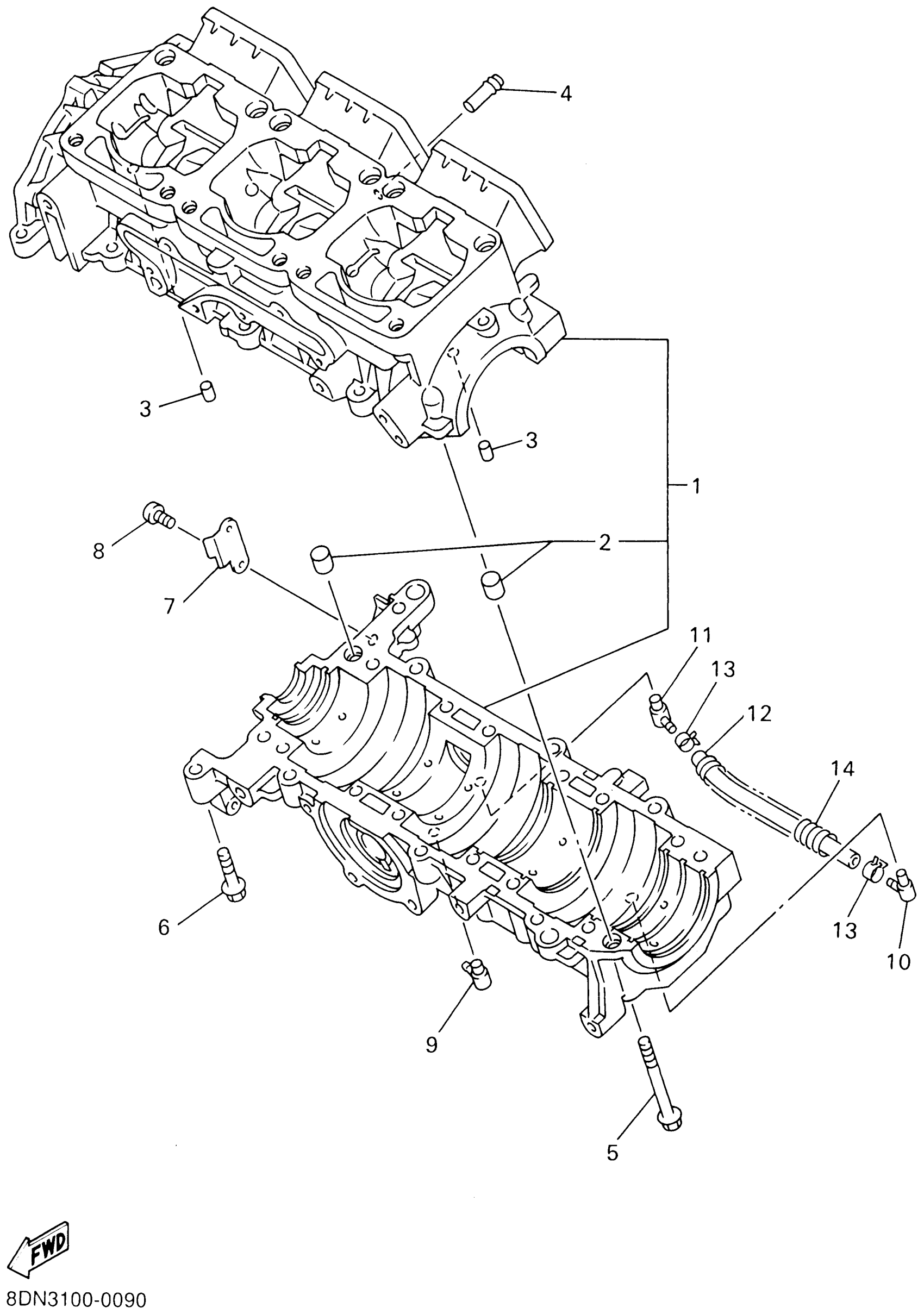

Yamaha SXV700ERG (SXVIPER ER (ELEC START)) 8FB1 2002 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

8DF-15100-10-00

Unavailable

2

PIN, DOWEL

99530-12016-00

$3.85

3

PIN, DOWEL (8G8)

93605-10108-00

$5.29

4

JOINT, BREATHER

J38-11116-00-00

$2.73

5

BOLT, FLANGE(JF2)

95817-08080-00

$3.14

6

BOLT, FLANGE

95817-08040-00

$5.04

7

CLAMP

90461-12001-00

Unavailable

8

SCREW, PAN

98517-06012-00

$2.93

9

NOZZLE

353-13552-01-00

$8.14

10

NOZZLE

8DF-13552-00-00

Unavailable

11

NOZZLE

8CH-13552-00-00

Unavailable

12

TUBE, FLEXIBLE VINYL(8AV)

91A30-03039-00

$8.55

13

CLIP (2A6)

90468-02025-00

$6.54

14

SPRING, COMPRESSION (10L)

90501-08668-00

$9.34
