Description

Price

1

COVER, HEADLIGHT

8EK-W7725-10-00

$344.99

2

DAMPER 1

8EK-77198-10-00

$44.99

3

TRIM, SEAT

8FE-78447-00-00

Unavailable

4

DAMPER, NOISE 17

8EK-77277-00-00

Unavailable

5

SCREW, TAPPING(4TV)

90167-05078-00

$8.49

6

WASHER, PLATE 8067717800

90201-05029-00

$8.49

7

SCREW, TAPPING

90167-05079-00

$4.14

8

SCREW, BINDING

98907-06014-00

$7.99

9

WINDSHIELD COMP.

8FB-K7210-00-00

Unavailable

10

. TRIM, UPPER

8FB-K7213-00-00

Unavailable

11

FAIRING

8EK-77231-10-00

Unavailable

12

FAIRING 2

8EK-7723A-10-00

Unavailable

13

FAIRING 3

8EK-7723B-10-00

Unavailable

14

SCREW, BINDING

98907-06020-00

$8.49

15

NUT, SPRING(4ES)

90183-06069-00

Unavailable

16

DAMPER

8EK-77238-00-00

Unavailable

17

PLATE 1

8EN-77185-00-00

Unavailable

18

PLATE 2

8EN-77186-00-00

Unavailable

19

SCREW, TRUSS TAP.

97707-50012-00

Unavailable

20

WINDSHIELD COMP.

8EK-K7210-00-00

Unavailable

21

. TRIM, UPPER

8EK-K7213-00-00

Unavailable

22

LINING, SHROUD 1

8EY-77261-00-00

Unavailable

23

TAPE 1

8EY-7824H-00-00

Unavailable

24

TAPE 2

8EY-7824G-00-00

Unavailable

25

LINING, SHROUD 2

8EY-77262-00-00

Unavailable

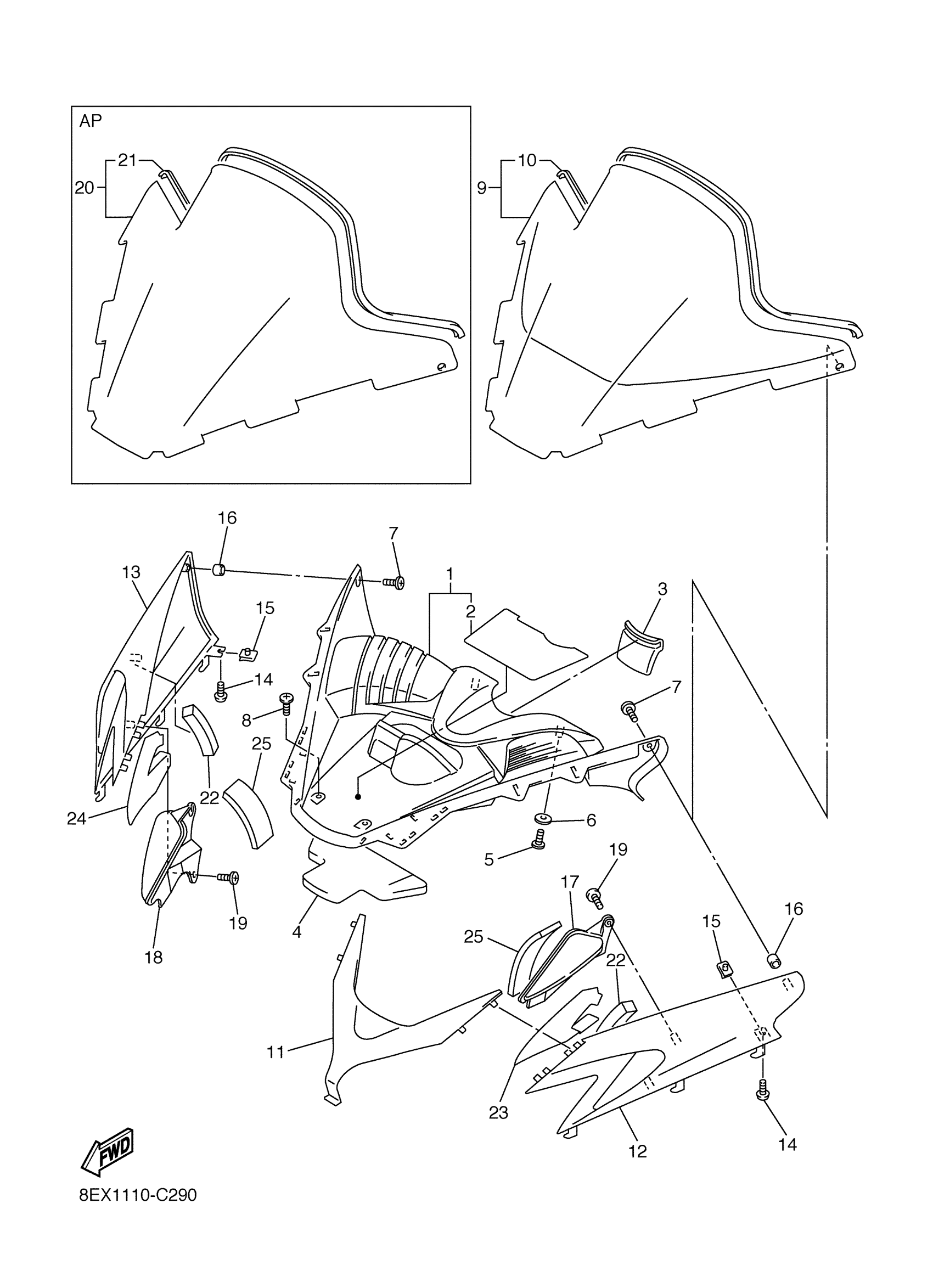

Yamaha SXV60K (SX VENOM) 8EX31 2005 WINDSHIELD Diagram

COVER, HEADLIGHT

DAMPER 1

TRIM, SEAT

DAMPER, NOISE 17

SCREW, TAPPING(4TV)

WASHER, PLATE 8067717800

SCREW, TAPPING

SCREW, BINDING

WINDSHIELD COMP.

. TRIM, UPPER

FAIRING

FAIRING 2

FAIRING 3

SCREW, BINDING

NUT, SPRING(4ES)

DAMPER

PLATE 1

PLATE 2

SCREW, TRUSS TAP.

WINDSHIELD COMP.

. TRIM, UPPER

LINING, SHROUD 1

TAPE 1

TAPE 2

LINING, SHROUD 2
