- SXV60K (SX VENOM) 8EX31 2005
TRACK SUSPENSION 2

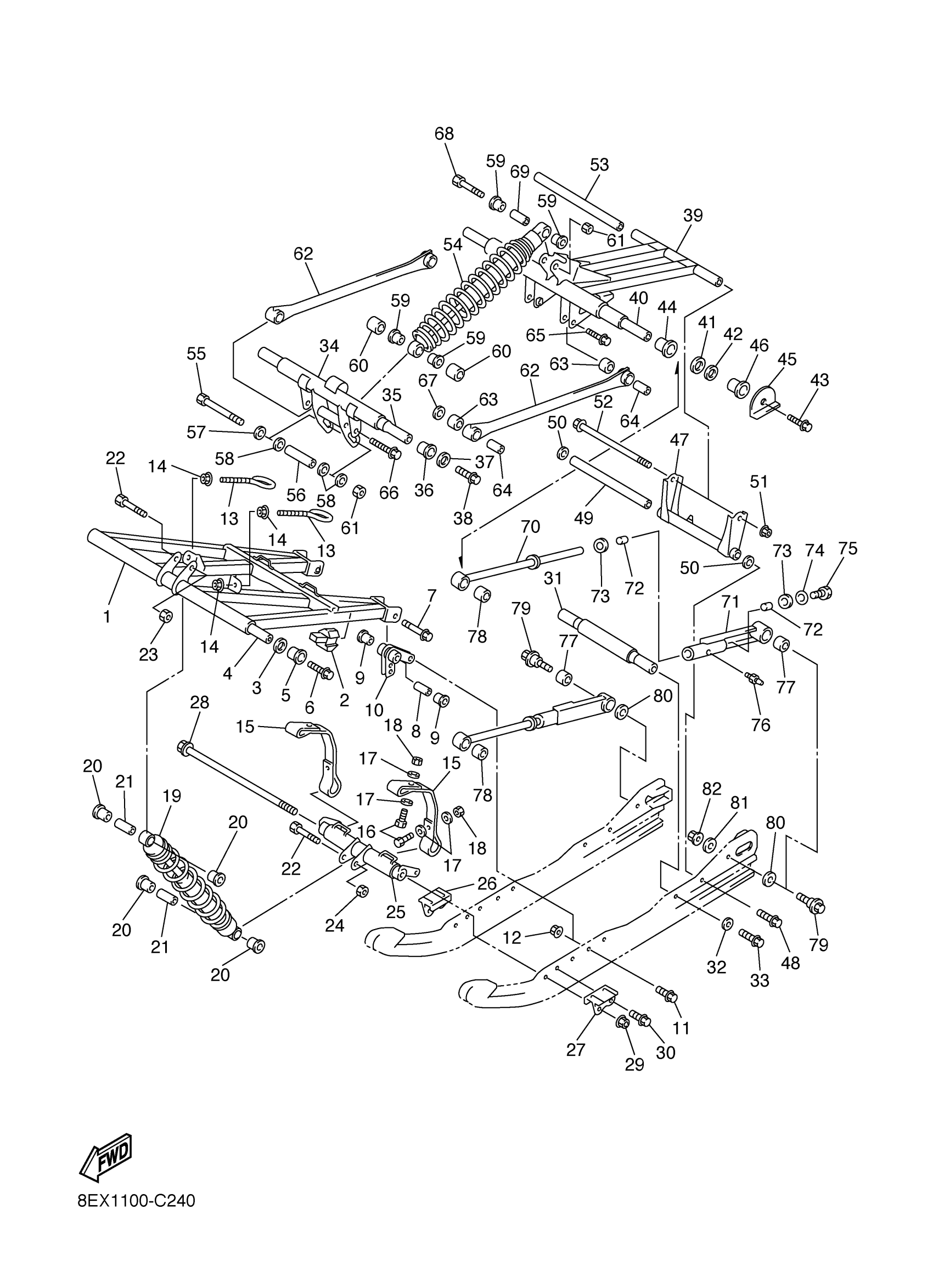

Yamaha SXV60K (SX VENOM) 8EX31 2005 TRACK SUSPENSION 2 Diagram
#
1
ARM, PIVOT 1
8CV-47331-01-00
Unavailable
2
DAMPER 1
8DF-47456-10-00
Unavailable
3
WASHER, PLATE(8CJ)
90201-210U0-00
$10.49
4
SHAFT 1
8CR-47465-00-00
Unavailable
5
BUSH, SOLID(8CJ)
90381-19111-00
$15.99
6
BOLT (8V0)
90109-10771-00
$5.60
7
BOLT, FLANGE
90105-10029-00
$5.60
8
COLLAR(8CJ)
90387-1009T-00
$23.99
9
BUSH, SOLID(8CJ)
90381-15112-00
$9.49
10
BRACKET 1
8CR-47415-00-00
Unavailable
11
BOLT, FLANGE(3GD)
95817-10025-00
$8.49
12
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
13
HOOK 3
8CR-47448-00-00
$16.49
14
NUT, FLANGE(JN5)
95707-08500-00
$3.13
15
STOPPER 1
8CR-47495-00-00
$68.99
16
BOLT, HEXAGON
97017-06025-00
Unavailable
17
WASHER, PLATE
90201-06747-00
Unavailable
18
NUT, NYLON
95707-06300-00
Unavailable
19
SHOCK ABSORBER 2
8DG-47481-00-00
Unavailable
20
COLLAR (8U7)
90387-145G7-00
Unavailable
21
COLLAR (8U7)
90387-105G5-00
Unavailable
22
BOLT(88R)
90101-10738-00
Unavailable
23
NUT, SELF LOCKING (23X)
90185-10120-00
Unavailable
24
NUT, U
95617-10100-00
Unavailable
25
BRACKET 4
8EA-47418-10-00
Unavailable
26
BRACKET 5
8DF-47463-01-00
Unavailable
27
BRACKET 6
8DF-47464-01-00
Unavailable
28
BOLT, WASHER BASED
90105-10023-00
Unavailable
29
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
30
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
31
SHAFT 4
8CR-47486-00-00
Unavailable
32
WASHER, PLATE (17K)
90201-106F2-00
Unavailable
33
BOLT, FLANGE
95817-10030-00
Unavailable
34
BRACKET 2
8CR-47416-10-00
Unavailable
35
SHAFT 6
8CR-47488-00-00
Unavailable
36
BUSH, SOLID(8CM)
90381-22099-00
Unavailable
37
WASHER, PLATE(1KE)
90201-207J5-00
Unavailable
38
BOLT (8V0)
90109-10771-00
$5.60
39
ARM, PIVOT 2
8CR-47332-10-00
Unavailable
40
SHAFT 2
8CR-47475-00-00
Unavailable
41
WASHER, PLATE (8V2)
90201-251G8-00
Unavailable
42
WASHER, PLATE(8CJ)
90201-250T6-00
Unavailable
43
BOLT (8V0)
90109-10771-00
$5.60
44
BUSH, SOLID(8CJ)
90381-28108-00
Unavailable
45
BRACKET, REAR 1
8CR-47426-21-00
Unavailable
46
BRACKET, REAR 2
8CR-47425-00-00
Unavailable
47
BRACKET 3
8CR-47417-01-00
Unavailable
48
BOLT, FLANGE
95817-10030-00
Unavailable
49
SHAFT 3
82M-47485-02-00
Unavailable
50
WASHER PLATE (789)
90201-10136-00
Unavailable
51
NUT, SELF-LOCKING
90185-08169-00
Unavailable
52
BOLT, FLANGE
95827-08220-00
Unavailable
53
COLLAR (8U7)
90387-083G6-00
Unavailable
54
SHOCK ABSORBER
8DS-47480-00-00
Unavailable
55
BOLT, ADJUSTING
8AC-4631K-00-00
Unavailable
56
COLLAR(8CJ)
90387-1009S-00
Unavailable
57
WASHER, PLATE
90201-10039-00
Unavailable
58
WASHER, PLATE(8BT)
90201-100U1-00
Unavailable
59
BUSH, SOLID(8CM)
90381-14101-00
Unavailable
60
COLLAR(8CM)
90387-1404R-00
Unavailable
61
NUT, U
95617-10100-00
Unavailable
62
ROD, RELAY
8CR-47494-01-00
Unavailable
63
BUSH, SOLID(8CJ)
90381-14109-00
Unavailable
64
COLLAR(87A)
90387-100X3-00
Unavailable
65
BOLT, FLANGE
95817-10035-00
Unavailable
66
BOLT, FLANGE
95814-10040-00
Unavailable
67
WASHER, PLATE(8BT)
90201-100U1-00
Unavailable
68
BOLT(88R)
90101-10738-00
Unavailable
69
COLLAR (8U7)
90387-105G5-00
Unavailable
70
ROD, CONTROL 1
8CR-4745A-01-00
Unavailable
71
ROD, CONTROL 2
8CR-4745B-00-00
Unavailable
72
BUSH, BIMETAL FORMED(8CJ)
90384-16251-00
Unavailable
73
WASHER, PLATE(8BT)
90202-16232-00
Unavailable
74
WASHER, PLATE (17K)
90201-106F2-00
Unavailable
75
BOLT(6TD)
97017-10025-00
Unavailable
76
NIPPLE, GREASE
93700-06M03-00
Unavailable
77
BUSH, SOLID(8CM)
90380-22232-00
Unavailable
78
BUSH, SOLID(8CJ)
90380-28235-00
Unavailable
79
SCREW, REAR PIVOT
8DF-47367-09-00
Unavailable
80
WASHER, PLATE(JN9)
90201-100S2-00
Unavailable
81
WASHER, PLATE
90201-101U2-00
Unavailable
82
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
