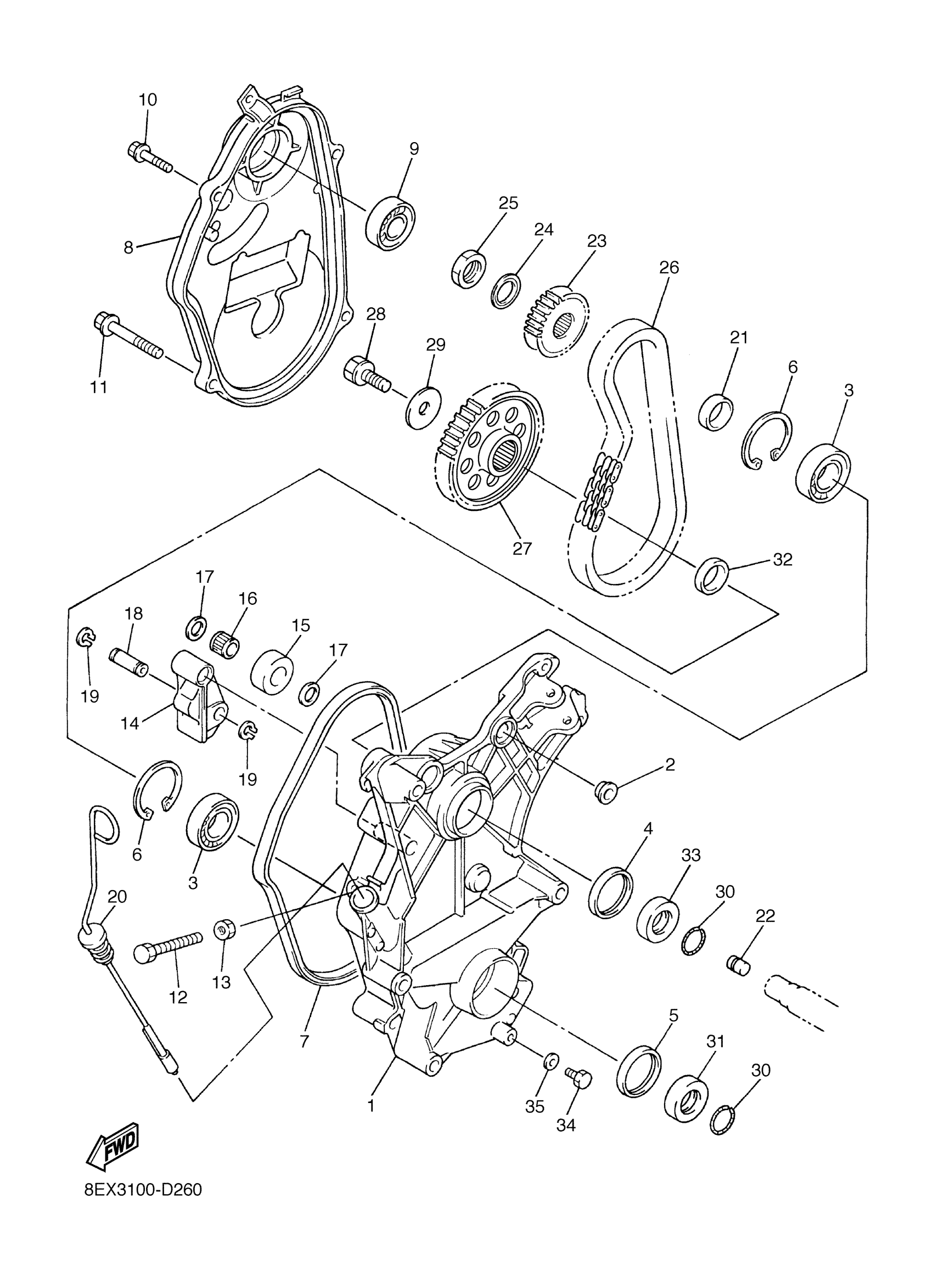

Yamaha SXV60K (SX VENOM) 8EX31 2005 TRACK DRIVE 2 Diagram

#

Description
Price

1

HOUSING, CHAIN

8CR-47541-01-00

$393.99

2

NUT(8CJ)

90179-10679-00

Unavailable

3

BEARING

93306-20592-00

$59.99

4

OIL SEAL

93102-35473-00

$33.99

5

OIL SEAL (36R)

93102-35318-00

$25.99

6

CIRCLIP(26H)

99009-52500-00

$12.49

7

RING, HOUSING/GASKET

8CR-47558-02-00

$16.49

8

CAP, HOUSING

8CR-47543-01-00

Unavailable

9

BEARING(1GJ)

93306-20458-00

$43.99

10

BOLT, FLANGE(6TA)

95817-08030-00

$8.49

11

BOLT, FLANGE

95817-10060-00

$7.49

12

BOLT, HEXAGON (8F3)

90101-10357-00

Unavailable

13

NUT(6TD)

95337-10600-00

$9.49

14

HOLDER

8CR-47613-00-00

Unavailable

15

WHEEL

8CR-47612-00-00

Unavailable

16

BRG,CYL-CAL ROLLER 11G KY

93315-21227-00

Unavailable

17

WASHER, PLATE (5N6)

90201-127E1-00

Unavailable

18

PIN(8CJ)

90249-12227-00

Unavailable

19

CIRCLIP(10Y)

99009-12400-00

Unavailable

20

LEVEL, OIL

8CR-47546-00-00

Unavailable

21

COLLAR

90387-2508D-00

Unavailable

22

PLUG, OIL

82M-17699-00-00

Unavailable

23

SPROCKET, CHAIN DRIVE

8DW-17682-00-00

Unavailable

24

WASHER 810475810000

90208-22001-00

Unavailable

25

NUT (821-47579-00)

90170-22094-00

Unavailable

26

CHAIN

94890-09068-00

Unavailable

27

SPROCKET, CHAIN DRIVEN (39T)

8DW-47587-91-00

Unavailable

28

BOLT, FLANGE(3GD)

95817-10025-00

Unavailable

29

WASHER, PLATE (856)

90201-10321-00

Unavailable

30

O-RING (169)

93210-25071-00

Unavailable

31

COLLAR(8CJ)

90387-2508C-00

Unavailable

32

COLLAR

90387-2508B-00

Unavailable

33

COLLAR

90387-2511J-00

Unavailable

34

BOLT(8BC)

97007-08014-00

Unavailable

35

WASHER, SEAL(8AB)

90210-08017-00

Unavailable
