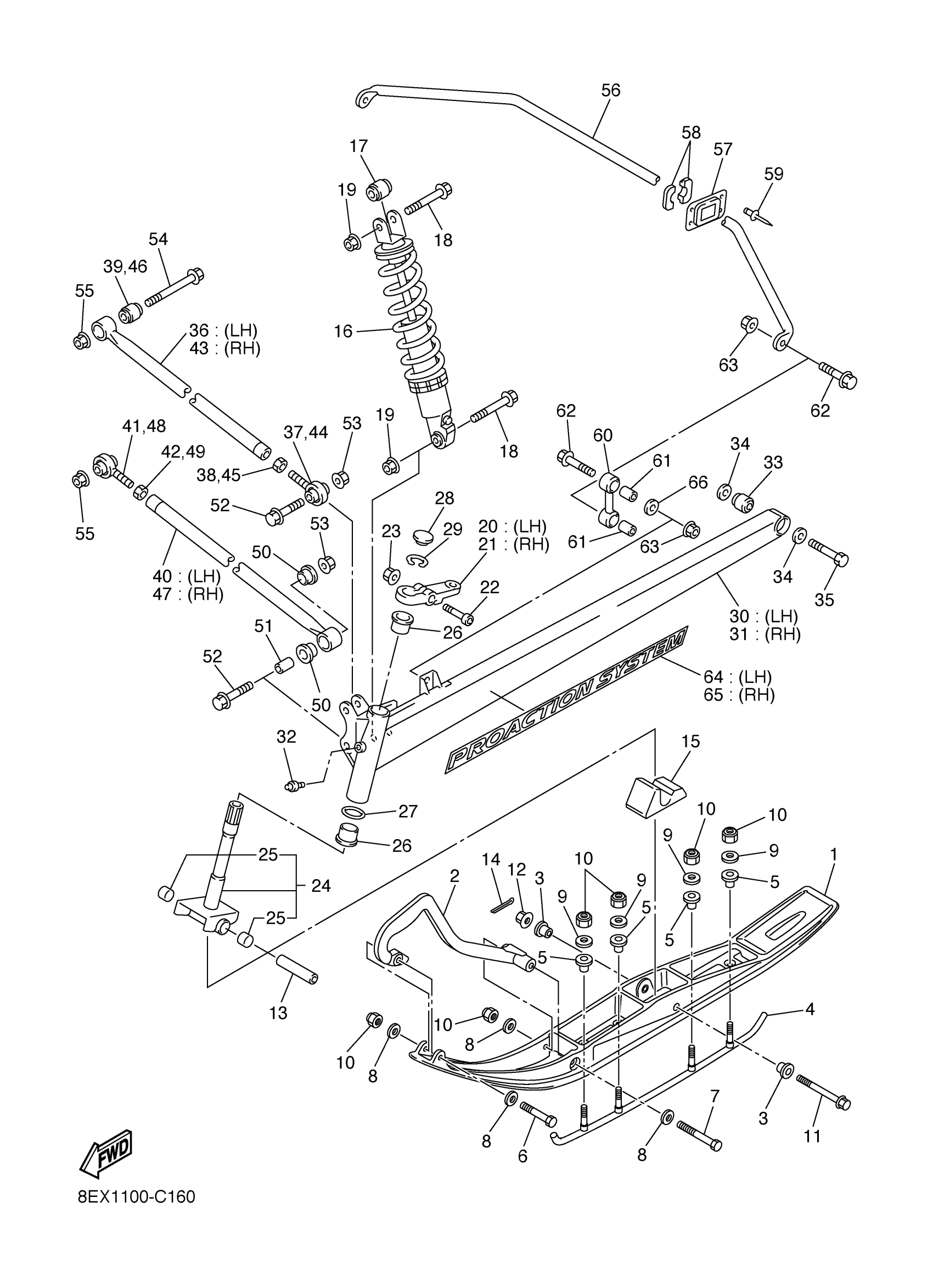

Yamaha SXV60K (SX VENOM) 8EX31 2005 SKI Diagram
#
1
SKI 1, BLACK
8EX-23711-00-BK
Unavailable
2
BLUE 8DM HANDLE PLASTIC
8DM-23712-00-BU
Unavailable
3
. COLLAR 1
8EX-F3754-00-00
Unavailable
4
SKI RUNNER KIT
SMA-F3731-EK-00
Unavailable
5
BUSH, SKI 1
8EK-F3751-00-00
Unavailable
6
BOLT, HEXAGON
97017-08055-00
$9.49
7
BOLT, HEXAGON
97027-08100-00
$5.60
8
WASHER, PLATE (3L7)
90201-08784-00
$3.23
9
WASHER, PLATE(3XP)
90201-086P8-00
$4.77
10
NUT, NYLON
95717-08300-00
$2.70
11
BOLT, FLANGE
90105-10070-00
$12.49
12
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
13
COLLAR
90387-1012H-00
$24.99
14
PIN, COTTER
91490-20025-00
$1.99
15
STOPPER 1
8CR-23743-10-00
$28.99
16
ABSORBER ASSY 1
8EX-2376A-10-00
Unavailable
17
BUSH
8CR-2376B-00-00
Unavailable
18
BOLT, FLANGE
90105-10030-00
Unavailable
19
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
20
ARM, OUTSIDE 1
8EK-23851-00-00
Unavailable
21
ARM, OUTSIDE 2
8EK-23852-00-00
Unavailable
22
BOLT, SOCKET
91314-08035-00
Unavailable
23
NUT, U FLANGE(4KG)
95604-08200-00
Unavailable
24
COLUMN, SKI ASSY
8EK-23803-00-00
Unavailable
25
BUSH, BIMETAL FORMED(8CJ)
90384-16251-00
Unavailable
26
BUSH, SOLID
90381-25115-00
Unavailable
27
WASHER, PLATE (25G)
90201-301G3-00
Unavailable
28
CAP 1
8CR-23741-10-00
Unavailable
29
CIRCLIP(JF7)
99009-25400-00
Unavailable
30
ARM, FRONT 1
8DM-2382E-10-00
Unavailable
31
ARM, FRONT 2
8DM-2382F-10-00
Unavailable
32
NIPPLE, GREASE
93700-06M03-00
Unavailable
33
DAMPER
8CR-2516A-00-00
Unavailable
34
WASHER, PLATE(8CJ)
90201-120T5-00
Unavailable
35
BOLT(8CJ)
90101-12046-00
Unavailable
36
ARM, CONTROL 1
8EK-2384E-00-00
Unavailable
37
JOINT 2
8EK-23823-00-00
Unavailable
38
NUT, HEXAGON
95337-12600-00
Unavailable
39
INSERT
8EK-23775-00-00
Unavailable
40
ARM, CONTROL 2
8EK-2384F-00-00
Unavailable
41
JOINT 3
8EK-23832-00-00
Unavailable
42
NUT
95314-14600-00
Unavailable
43
ARM, CONTROL 1
8EK-2384E-00-00
Unavailable
44
JOINT 2
8EK-23823-00-00
Unavailable
45
NUT, HEXAGON
95337-12600-00
Unavailable
46
INSERT
8EK-23775-00-00
Unavailable
47
ARM, CONTROL 2
8EK-2384F-00-00
Unavailable
48
JOINT 3
8EK-23832-00-00
Unavailable
49
NUT
95314-14600-00
Unavailable
50
BUSH, SOLID(8CJ)
90381-17110-00
Unavailable
51
COLLAR(8CJ)
90387-1009K-00
Unavailable
52
BOLT, FLANGE
90105-10030-00
Unavailable
53
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
54
BOLT, FLANGE
90105-12012-00
Unavailable
55
NUT, U FLANGE
95607-12200-00
Unavailable
56
BAR, STABILIZER FRONT
8CR-2386E-00-00
Unavailable
57
COVER, STABILIZER FRONT
8CR-2386H-00-00
Unavailable
58
BUSH, STABILIZER FRONT
8CR-2386G-00-00
Unavailable
59
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
60
JOINT, STABILIZER 1
8CR-2385L-00-00
Unavailable
61
COLLAR(8V7)
90387-087L3-00
Unavailable
62
BOLT, FLANGE
95817-08040-00
Unavailable
63
NUT, SELF-LOCKING
90185-08169-00
Unavailable
64
EMBLEM 15
8EA-77371-30-00
Unavailable
65
EMBLEM 16
8EA-77372-30-00
Unavailable
66
WASHER, PLATE(3XP)
90201-086P8-00
$4.77
