- SXV60K (SX VENOM) 8EX31 2005
RADIATOR HOSE

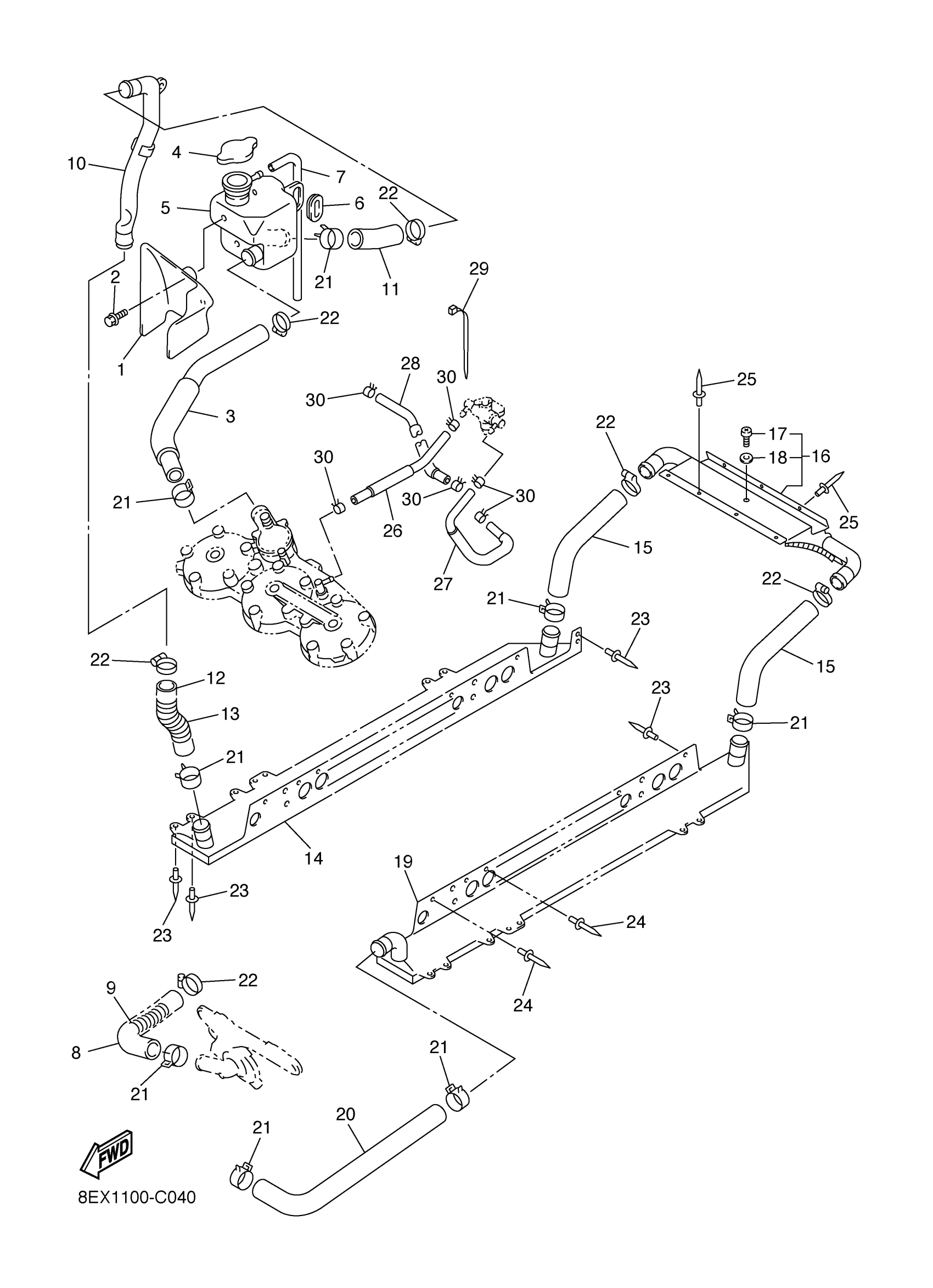

Yamaha SXV60K (SX VENOM) 8EX31 2005 RADIATOR HOSE Diagram
#
1
DUCT
8EK-12661-00-00
Unavailable
2
BOLT, FLANGE
95817-06012-00
$1.43
3
PIPE 1
8EX-12481-00-00
Unavailable
4
CAP, RADIATOR
4FL-12462-00-00
$62.99
5
TANK, RESERVE
8EK-1249B-00-00
Unavailable
6
GROMMET
90480-01003-00
Unavailable
7
HOSE (L340)
90445-08684-00
$4.29
8
PIPE 2
8EK-12482-00-00
Unavailable
9
SPRING, COMPRESSION
90501-12002-00
Unavailable
10
PIPE 3
8EK-12483-00-00
Unavailable
11
HOSE 2
8EK-1243E-00-00
Unavailable
12
HOSE,3
8DF-1243F-00-00
Unavailable
13
SPRING, COMPRESSION
90501-144L4-00
Unavailable
14
HEAT EXCHANGER
8EK-1240F-00-00
Unavailable
15
PIPE 4
8DF-12484-01-00
Unavailable
16
HEAT EXCHANGER ASSY 4
8DF-1241A-11-00
Unavailable
17
SCREW, PAN HEAD(3TJ)
98507-06016-00
Unavailable
18
WASHER, SEAL (7G5)
90210-06006-00
Unavailable
19
HEAT EXCHANGER
8EK-1240E-00-00
Unavailable
20
PIPE 5
8DF-12485-00-00
Unavailable
21
CLIP (8M6)
90467-28046-00
Unavailable
22
HOSE CLAMP ASSY
90450-35001-00
Unavailable
23
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
24
RIVET, BLIND
90267-47195-00
Unavailable
25
RIVET, BLIND
90267-47195-00
Unavailable
26
HOSE 1
8CH-1243A-01-00
Unavailable
27
HOSE 2
8CH-1243E-10-00
Unavailable
28
HOSE,3
8EX-1243F-00-00
Unavailable
29
CLAMP(4FM)
90464-15195-00
Unavailable
30
CLIP
90467-11028-00
Unavailable
