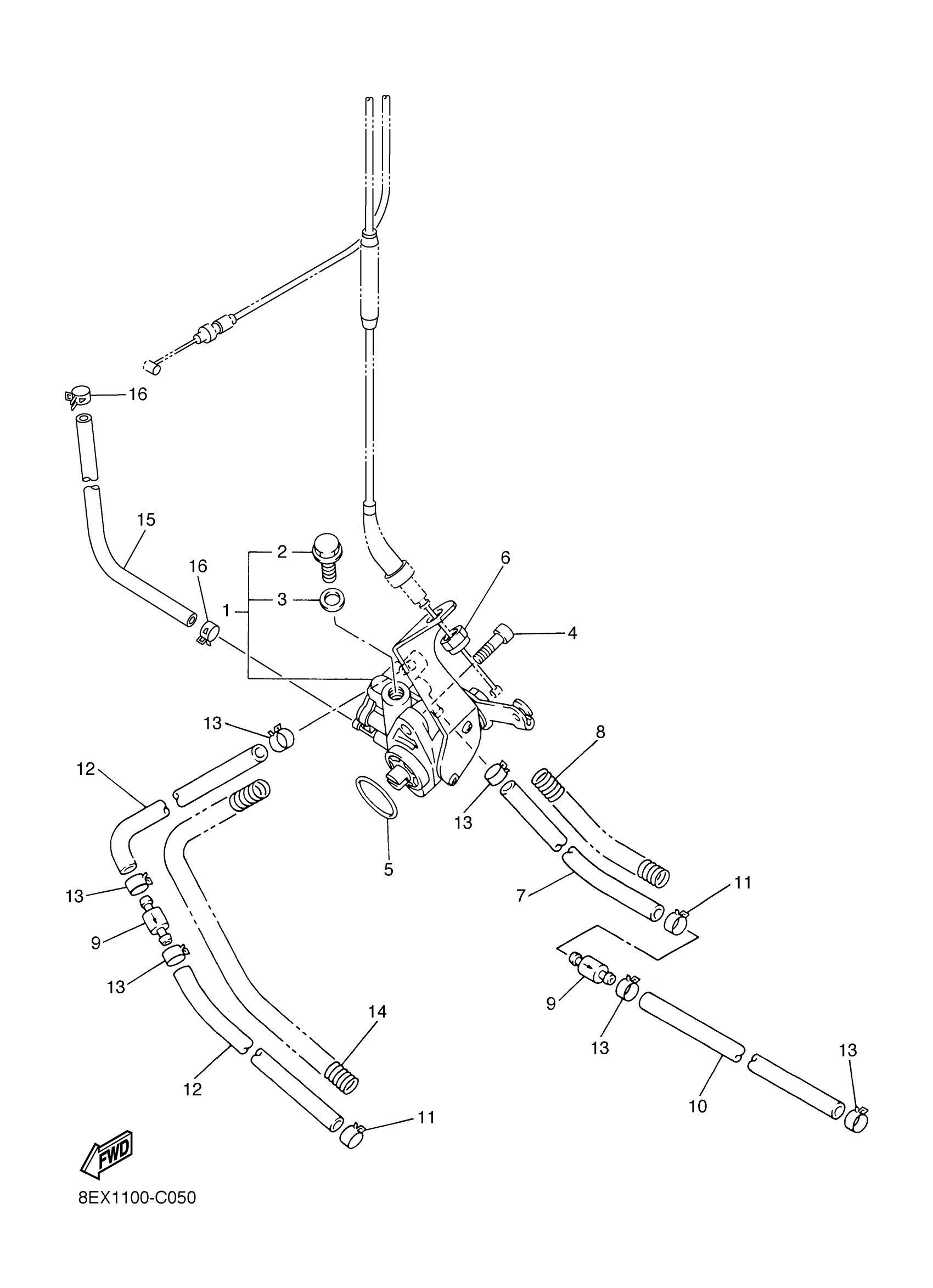

Yamaha SXV60K (SX VENOM) 8EX31 2005 OIL PUMP Diagram

OIL PUMP ASSY

8DG-13100-00-00

Unavailable

BOLT, BREATHER

89A-13185-00-00

Unavailable

. GASKET, BREATHER BOLT

89A-13187-00-00

Unavailable

BOLT,SOCKET

91317-05014-00

$8.49

O-RING(3SB)

93210-20712-00

$4.29

NUT, NYLON

95717-08300-00

$2.70

TUBE, FLEXIBLE VINYL(8AV)

91A30-03039-00

$10.49

SPRING, COMPRESSION (10L)

90501-08668-00

$11.49

CHECK VALVE

8CH-1316A-00-00

$46.99

TUBE, FLEXIBLE VINYL(8AV)

91A30-03039-00

$10.49

CLIP(42X)

90467-07093-00

$3.35

TUBE, FLEXIBLE VINYL(8AV)

91A30-03039-00

$10.49

CLIP (2A6)

90468-02025-00

$9.49

SPRING, COMPRESSION(3JK)

90501-101J5-00

$19.99

TUBE,FLEXIBLE VINYL(85R)

91A30-05080-00

$18.99

CLIP (8A1)

90467-09026-00

Unavailable
