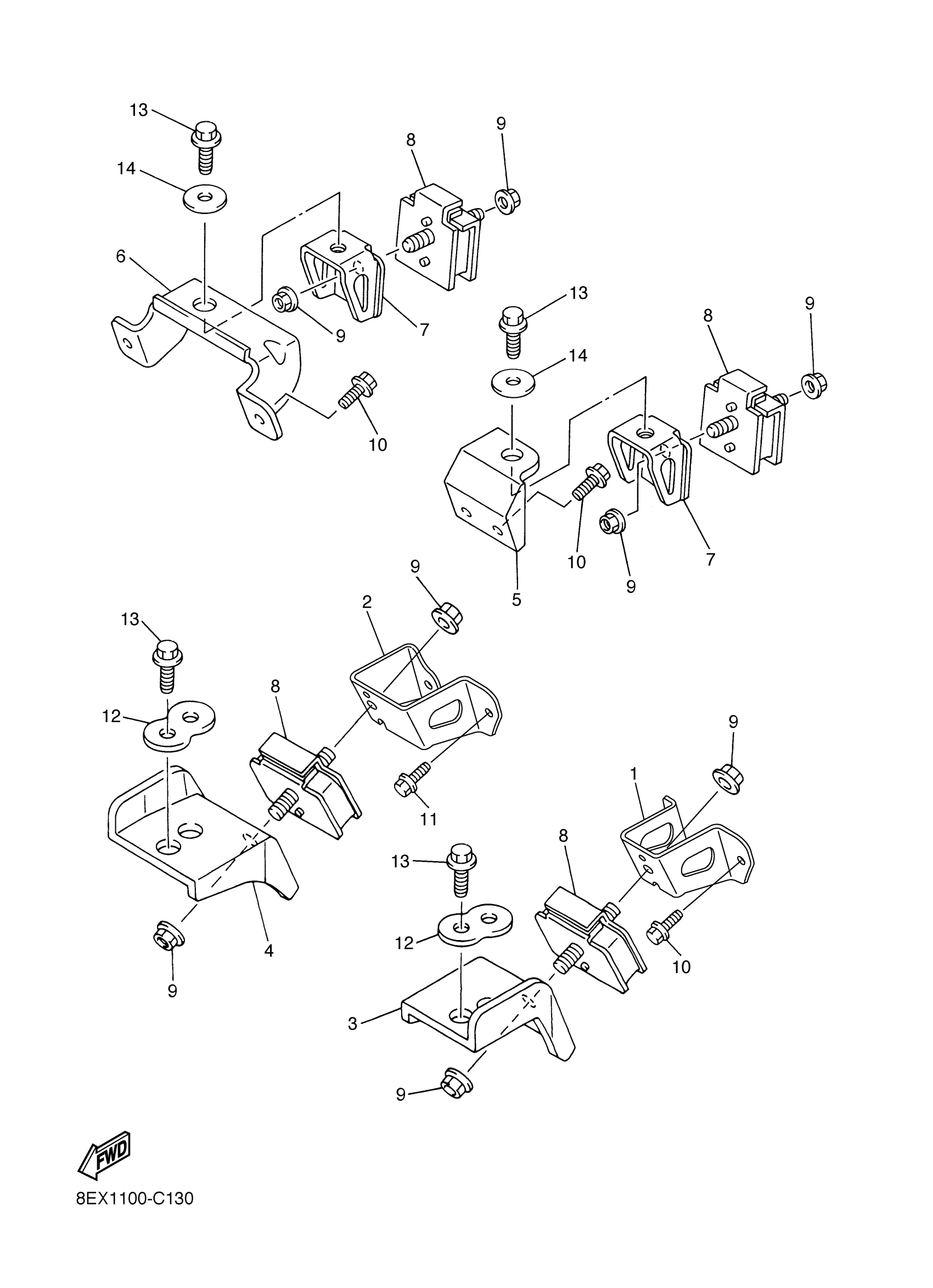

Yamaha SXV60K (SX VENOM) 8EX31 2005 ENGINE BRACKET Diagram

#

Description
Price

1

BRACKET, FRONT UPPER 1

8EX-21415-00-00

$42.99

2

BRACKET, FRONT UPPER 2

8EX-21416-00-00

Unavailable

3

BRACKET, FRONT LOWER 1

8DF-21417-01-00

$31.99

4

BRACKET, FRONT LOWER 2

8DF-21418-00-00

Unavailable

5

BRACKET, REAR UPPER 1

8CR-21425-00-00

Unavailable

6

BRACKET, REAR UPPER 1

8CH-21425-00-00

Unavailable

7

BRACKET, REAR LOWER 1

8CR-21427-10-00

Unavailable

8

DAMPER 2

8CH-21486-10-00

Unavailable

9

NUT, FLANGE(8AB)

95707-10500-00

$3.18

10

BOLT, FLANGE(8AB)

95817-08020-00

$9.49

11

BOLT, FLANGE

95817-08035-00

$9.49

12

PLATE, ENGINE MOUNT

8DF-2145B-10-00

$8.99

13

BOLT, FLANGE(3GD)

95817-10025-00

$8.49

14

WASHER, PLATE (856)

90201-10321-00

$8.49
