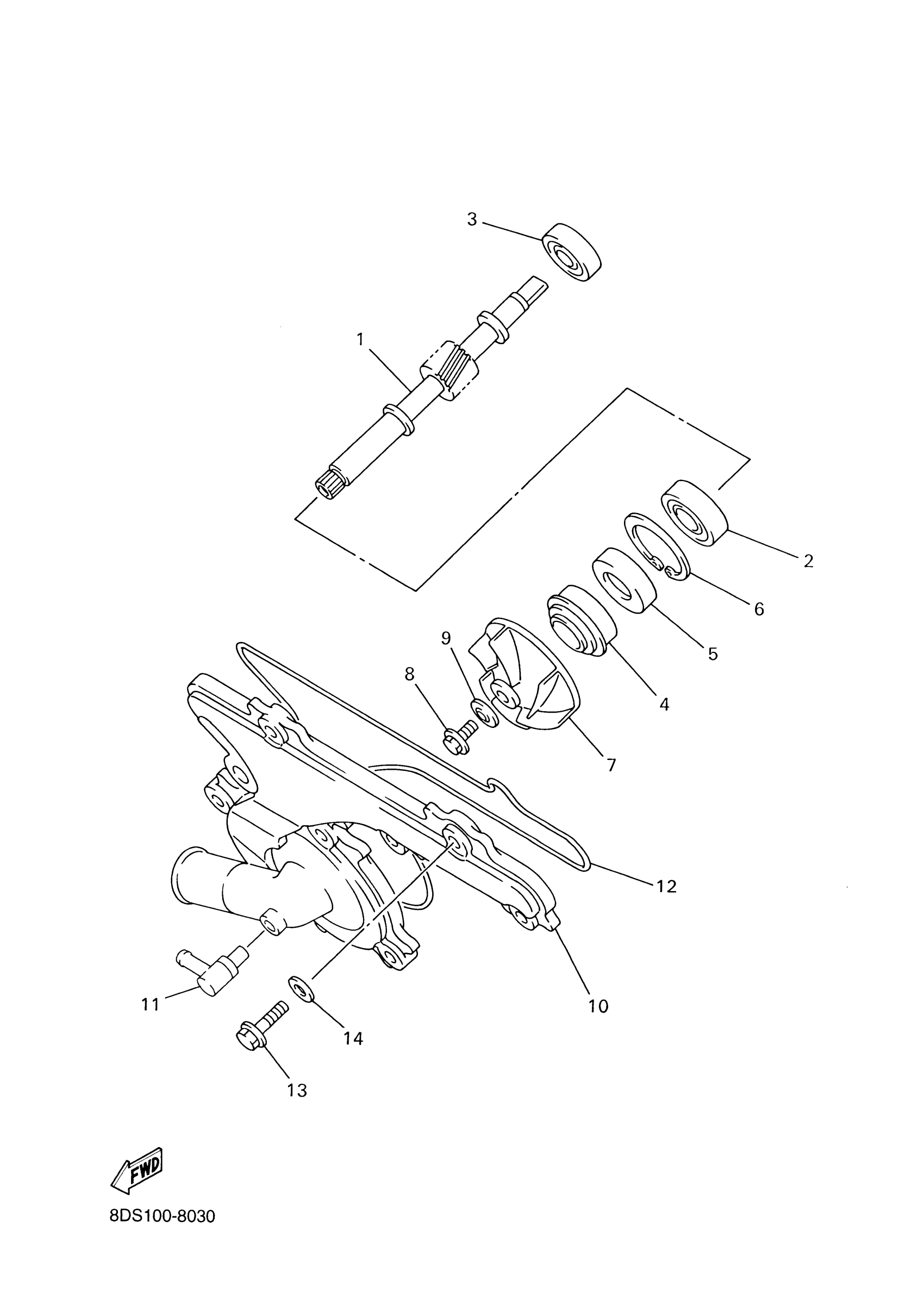

Yamaha SXV60J (SX VENOM) 8EX1 2004 WATER PUMP Diagram

#

Description
Price

1

GEAR, IMPELLER SHAFT

8CH-12459-01-00

Unavailable

2

BRG,R-B 6001 28MM 28G KY

93306-00105-00

$30.99

3

BRG,R-B 6000 26MM 19G KY

93306-00004-00

$37.99

4

SEAL, MECHANICAL

11H-12438-10-00

$62.99

5

OIL SEAL(8CP)

93102-12461-00

$11.49

6

CIRCLIP (3Y1)

93420-28055-00

$9.49

7

IMPELLER, WATER PUMP

8CH-12451-02-00

Unavailable

8

BOLT, FLANGE

95817-06012-00

$1.43

9

WASHER, SEAL

90210-06001-00

Unavailable

10

COVER, HOUSING

8CH-12422-10-00

Unavailable

11

JOINT 1

8CH-12469-00-00

Unavailable

12

O-RING

8CH-12439-00-00

$55.99

13

BOLT, FLANGE

95817-06020-00

$3.81

14

GASKET (4V2)

90430-06166-00

$3.76
