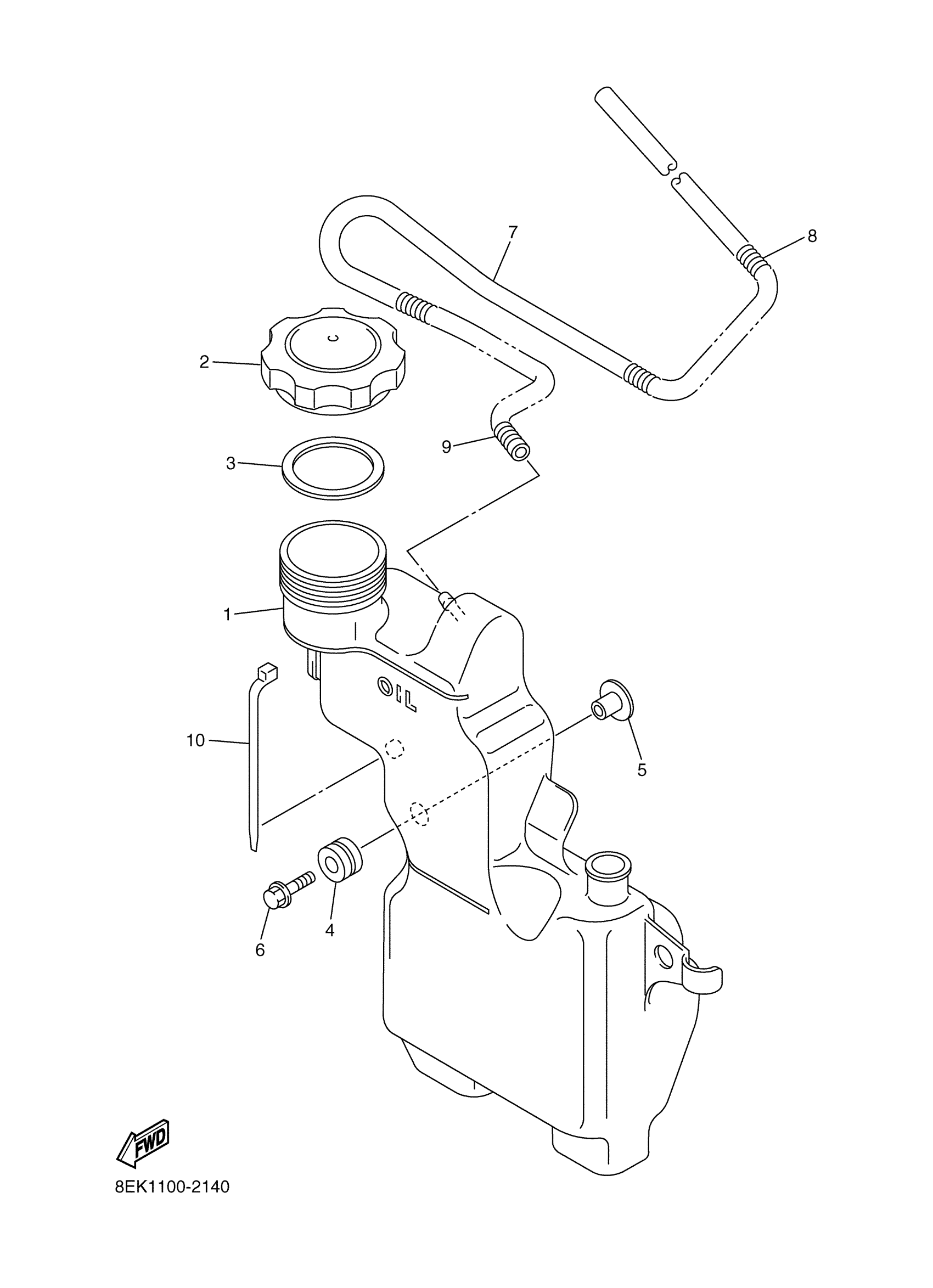

Yamaha SXV60J (SX VENOM) 8EX1 2004 OIL TANK Diagram

#

Description
Price

1

TANK, OIL

8EK-21751-00-00

Unavailable

2

BODY, CAP

8EK-21771-00-00

Unavailable

3

GASKET, CAP

8EK-21772-00-00

Unavailable

4

GROMMET 839774310000

90480-14023-00

$4.34

5

COLLAR(52E)

90387-063G3-00

$5.86

6

BOLT, FLANGE

95817-06025-00

Unavailable

7

TUBE, FLEXIBLE VINYL(8AT)

91A30-05125-00

Unavailable

8

SPRING, COMPRESSION (10L)

90501-08668-00

$9.34

9

SPRING, COMPRESSION(3JK)

90501-101J5-00

$16.89

10

CLAMP(4FM)

90464-15195-00

$2.57
