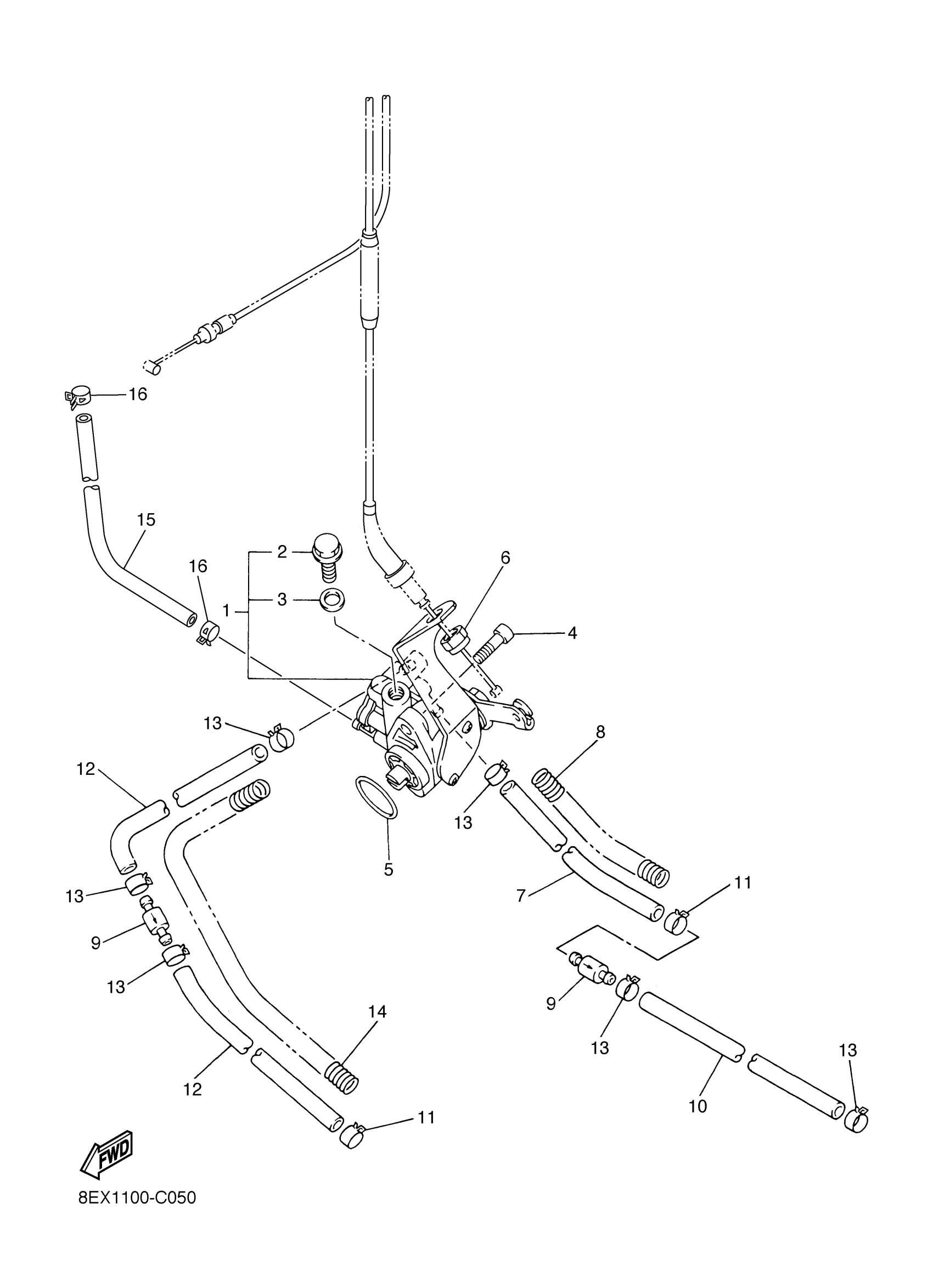

Yamaha SXV60J (SX VENOM) 8EX1 2004 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

8DG-13100-00-00

Unavailable

2

BOLT, BREATHER

89A-13185-00-00

Unavailable

3

. GASKET, BREATHER BOLT

89A-13187-00-00

Unavailable

4

BOLT,SOCKET

91317-05014-00

$6.23

5

O-RING(3SB)

93210-20712-00

$3.65

6

NUT, NYLON

95717-08300-00

$2.38

7

TUBE, FLEXIBLE VINYL(8AV)

91A30-03039-00

$8.55

8

SPRING, COMPRESSION (10L)

90501-08668-00

$9.34

9

CHECK VALVE

8CH-1316A-00-00

$37.49

10

TUBE, FLEXIBLE VINYL(8AV)

91A30-03039-00

$8.55

11

CLIP(42X)

90467-07093-00

$1.65

12

TUBE, FLEXIBLE VINYL(8AV)

91A30-03039-00

$8.55

13

CLIP (2A6)

90468-02025-00

$6.54

14

SPRING, COMPRESSION(3JK)

90501-101J5-00

$16.89

15

TUBE,FLEXIBLE VINYL(85R)

91A30-05080-00

$15.77

16

CLIP (8A1)

90467-09026-00

Unavailable
