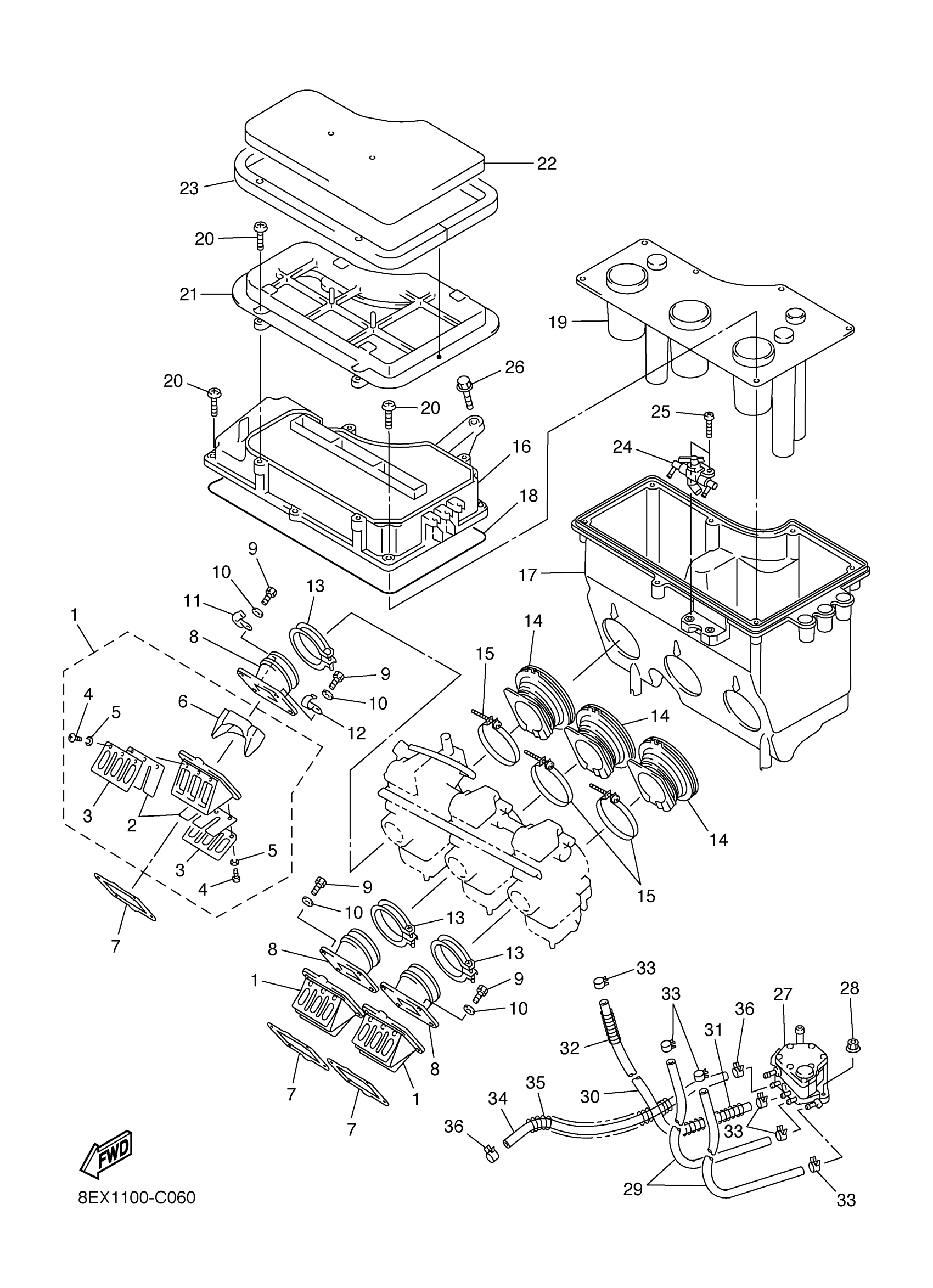

Yamaha SXV60J (SX VENOM) 8EX1 2004 INTAKE Diagram
#
1
REED VALVE ASSY
4DA-13610-01-00
Unavailable
2
REED, VALVE
3SP-13613-01-00
$32.99
3
STOPPER, REED VALVE
8DJ-13616-00-00
$17.49
4
SCREW, PAN HEAD(3AC)
98517-03008-00
$2.97
5
WASHER, SPRING
92990-03100-00
$8.49
6
. SPACER, REED VALVE
4DA-13625-00-00
Unavailable
7
GASKET, VALVE SEAT
8CH-13621-01-00
$14.49
8
MANIFOLD, INTAKE
8CH-13555-00-00
Unavailable
9
BOLT, HEXAGON
97017-06025-00
$4.24
10
WASHER(6TA)
92907-06600-00
$2.72
11
CLAMP (4G0)
90462-08078-00
$5.60
12
CLAMP
90462-08246-00
$14.99
13
BAND
86M-13575-00-00
$19.49
14
JOINT, AIR CLEANER 1
8EX-14453-00-00
Unavailable
15
HOSE CLAMP ASSY
90450-53008-00
$10.49
16
SILENCER, INTAKE 1
8EK-14431-00-00
Unavailable
17
SILENCER, INTAKE 2
8EX-14441-00-00
Unavailable
18
SEAL
51Y-14462-00-00
Unavailable
19
PLATE
8EK-14477-00-00
Unavailable
20
SCREW, TAPPING(82M)
90167-05043-00
Unavailable
21
GUIDE
8EK-14458-00-00
Unavailable
22
ELEMENT, AIR CLEANER
8EK-14451-00-00
Unavailable
23
DAMPER 1
8EK-14425-00-00
Unavailable
24
COCK ASSY
8CH-1249A-03-00
Unavailable
25
SCREW, BINDING
98907-06020-00
Unavailable
26
BOLT, WITH WASHER(3FC)
90119-06163-00
Unavailable
27
FUEL PUMP ASSY
8CH-24410-00-00
Unavailable
28
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
29
HOSE (L280)
90445-09004-00
Unavailable
30
HOSE (L420)
90445-092K1-00
Unavailable
31
SPRING, COMPRESSION
90501-085L6-00
Unavailable
32
SPRING, COMPRESSION
90501-086L1-00
Unavailable
33
CLIP (8A1)
90467-09026-00
Unavailable
34
HOSE (L400)
90445-116K9-00
Unavailable
35
SPRING, COMPRESSION (10L)
90501-08668-00
Unavailable
36
CLIP (7K7)
90467-11044-00
Unavailable
