- SXV60J (SX VENOM) 8EX1 2004
CARBURETOR

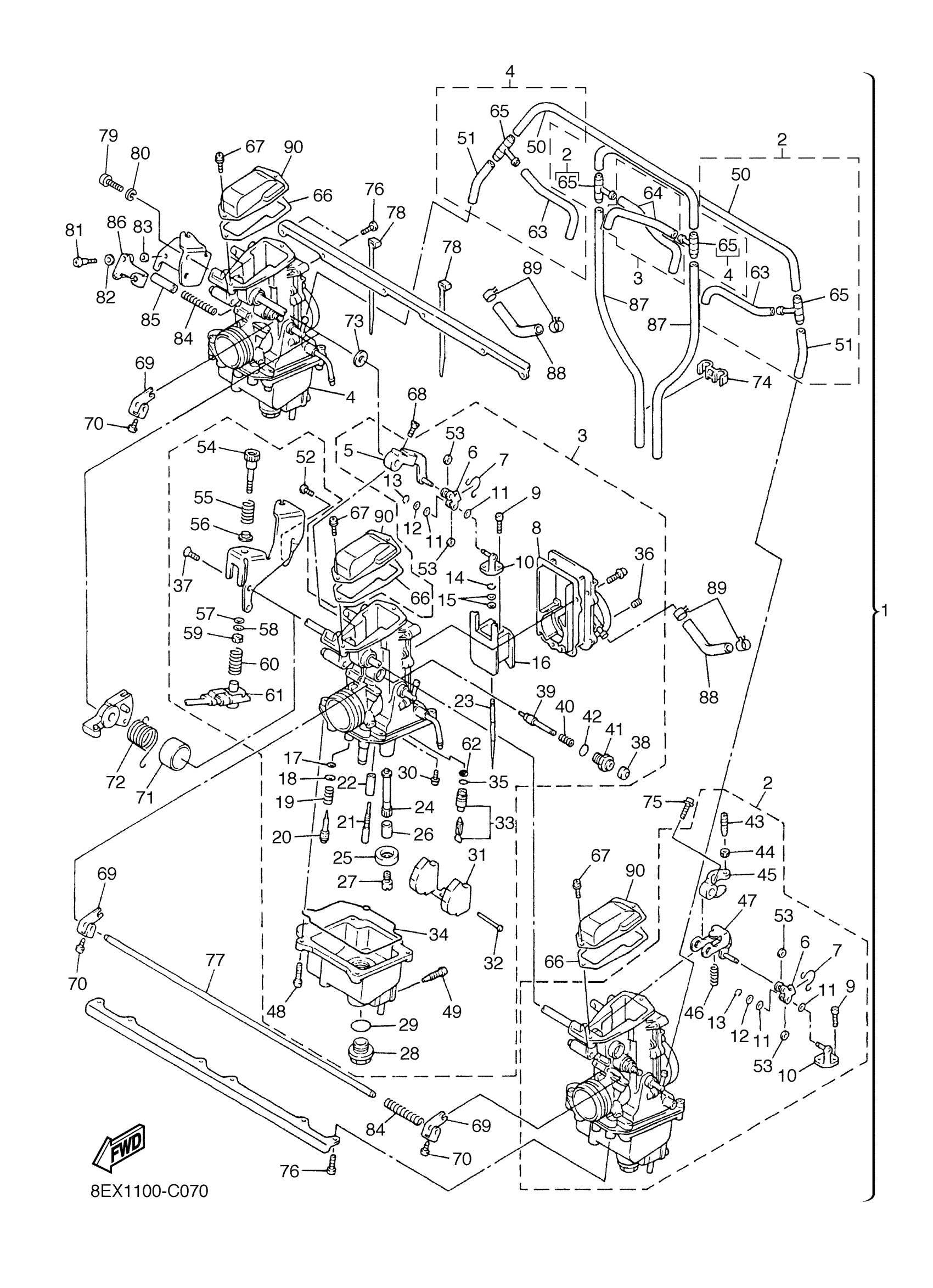

Yamaha SXV60J (SX VENOM) 8EX1 2004 CARBURETOR Diagram
#
1
CARBURETOR ASSY
8EX-14100-01-00
Unavailable
2
CARBURETOR ASSY 1
8EX-14101-00-00
Unavailable
3
CARBURETOR ASSY 2
8EX-14102-00-00
Unavailable
4
CARBURETOR ASSY 3
8EX-14103-00-00
Unavailable
5
BRACKET 2
89A-14292-00-00
Unavailable
6
PLATE
89A-14243-00-00
Unavailable
7
CLIP
89A-14137-00-00
$3.33
8
GASKET
89A-14199-00-00
$31.99
9
BOLT,SOCKET
91317-03012-00
$0.90
10
CONNECTOR
89A-14188-00-00
$34.99
11
GASKET
3GF-14126-00-00
$0.47
12
GASKET
620-14198-00-00
$2.65
13
CLIP
3MA-14937-00-00
Unavailable
14
CLIP
3FA-14137-00-00
$7.99
15
WASHER
8AB-14227-00-00
$4.42
16
VALVE, THROTTLE 1
89A-14112-30-00
Unavailable
17
O-RING, PILOT SCREW
3H1-14147-00-00
Unavailable
18
WASHER, PILOT SCREW
3H1-14962-00-00
Unavailable
19
SPRING
5K7-14134-00-00
Unavailable
20
SCREW, ADJ.
89A-14565-00-00
Unavailable
21
JET, PILOT (# 42.5)
3H1-14142-42-00
Unavailable
21
JET, PILOT (# 45)
3H1-14142-45-00
Unavailable
22
PIPE
89A-14996-00-00
Unavailable
23
.. NEEDLE
275-14116-50-00
Unavailable
24
.. NOZZLE, MAIN
8CH-14141-52-00
Unavailable
24
NOZZLE, MAIN
8CH-14141-54-00
Unavailable
25
WASHER, MAIN JET
1LX-14153-00-00
Unavailable
26
RING
89A-14194-00-00
Unavailable
27
JET, MAIN (#130)
3G2-14231-26-A0
Unavailable
27
JET, MAIN (#135)
3G2-14231-27-00
Unavailable
27
JET, MAIN (#140)
3G2-14231-28-00
Unavailable
27
JET, MAIN (#145)
3G2-14231-29-00
Unavailable
27
JET,MAIN #127.5
3G2-1423A-76-00
Unavailable
27
JET,MAIN #132.5
3G2-1423A-77-00
Unavailable
27
JET,MAIN #137.5
3G2-1423A-78-00
Unavailable
27
JET,MAIN #142.5
3G2-1423A-79-00
Unavailable
27
.. JET, MAIN (#1188)
3G2-1423E-47-00
Unavailable
27
. JET, MAIN (#1213)
3G2-1423E-48-00
Unavailable
27
. JET, MAIN (#1238)
3G2-1423E-49-00
Unavailable
27
JET, MAIN (#126.3)
3G2-1423E-50-00
Unavailable
27
JET, MAIN (#128.8)
3G2-1423E-51-00
Unavailable
27
JET, MAIN (#131.3)
3G2-1423E-52-00
Unavailable
27
JET, MAIN(#133.8)
3G2-1423E-53-00
Unavailable
27
JET, MAIN (#136.3)
3G2-1423E-54-00
Unavailable
27
JET, MAIN (#136.3)
3G2-1423E-54-00
Unavailable
27
JET, MAIN (#138.8)
3G2-1423E-55-00
Unavailable
27
JET, MAIN (#138.8)
3G2-1423E-55-00
Unavailable
27
JET, MAIN (#141.3)
3G2-1423E-56-00
Unavailable
27
JET MAIN (#143.8)
3G2-1423E-57-00
Unavailable
28
PLUG, SCREW
500-14115-00-00
Unavailable
29
O-RING (541)
558-14147-00-00
Unavailable
30
SCREW
2LN-14565-00-00
Unavailable
31
.. FLOAT
8EK-14185-00-00
Unavailable
32
PIN, FLOAT
537-14186-00-00
Unavailable
33
NEEDLE VALVE ASSY
1AE-14190-13-00
Unavailable
34
O-RING
89A-14147-00-00
Unavailable
35
O-RING
8F2-14147-00-00
Unavailable
36
JET, AIR (#1.0)
239-14172-10-00
Unavailable
37
SCREW,FLAT
98707-05008-00
Unavailable
38
. COVER, PLUNGER CAP
302-14173-00-00
Unavailable
39
. PLUNGER, STARTER
4G0-14171-00-00
Unavailable
40
SPRING, PLUNGER
1AW-14135-00-00
Unavailable
41
. CAP, PLUNGER
1FN-14174-00-00
Unavailable
42
O-RING
1AE-14147-00-00
Unavailable
43
SCREW
89A-14216-00-00
Unavailable
44
NUT, HEXAGON SMALL
95317-05700-00
Unavailable
45
. LEVER
89A-14276-00-00
Unavailable
46
SPRING
89A-14286-00-00
Unavailable
47
. LEVER, STARTER
89A-14905-00-00
Unavailable
48
SCREW, PAN HEAD(GA5)
98580-04014-00
Unavailable
49
PLUG, DRAIN
12R-14191-00-00
Unavailable
50
. PIPE
84M-14197-00-00
Unavailable
51
. PIPE 1
8CH-14348-00-00
Unavailable
52
SCREW, PAN HEAD (E56)
98580-04010-00
Unavailable
53
RING
3MA-14918-00-00
Unavailable
54
SCREW, THROTTLE
8CC-14122-00-00
Unavailable
55
SPRING
8X0-14500-00-00
Unavailable
56
RING
8X0-14184-00-00
Unavailable
57
WASHER, PLUG SCREW
22F-14117-00-00
Unavailable
58
. WASHER
1UF-14952-00-00
Unavailable
59
NUT
89A-14594-00-00
Unavailable
60
SPRING, THROTTLE STOP
8X0-14133-00-00
Unavailable
61
SWITCH, CARBURETOR
87S-8259A-01-00
Unavailable
62
NET, FILTER
1J7-14994-00-00
Unavailable
63
HOSE
89A-14987-00-00
Unavailable
64
. PIPE
8F2-14197-00-00
Unavailable
65
NIPPLE
4N0-14251-00-00
Unavailable
66
GASKET
89A-14198-00-00
Unavailable
67
SCREW, PAN HEAD(6G8)
98507-04010-00
Unavailable
68
. SCREW, FLAT HEAD (98702-04014-00 )
6K8-14523-10-00
Unavailable
69
. LEVER COMP. 1
89A-14208-00-00
Unavailable
70
SCREW
11H-14991-09-00
Unavailable
71
. COLLAR
89A-14264-00-00
Unavailable
72
SPRING
8EX-14589-00-00
Unavailable
73
. WASHER
3H1-14227-00-00
Unavailable
74
CLIP
87M-14137-00-00
Unavailable
75
SCREW, PAN HEAD
98517-04016-00
Unavailable
76
SCREW, PAN
98517-05012-00
Unavailable
77
. SHAFT, STARTER LEVER
8CH-14978-00-00
Unavailable
78
CLIP, PIPE
35H-14139-00-00
Unavailable
79
SCREW, PAN HEAD(3LA)
98517-05010-00
Unavailable
80
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
81
. PLUG, SCREW
22F-14115-00-00
Unavailable
82
WASHER, PLUG SCREW
22F-14117-00-00
Unavailable
83
. WASHER
3FV-14962-00-00
Unavailable
84
. SPRING, PLUNGER
1AE-14135-00-00
Unavailable
85
. CAP
89A-14118-00-00
Unavailable
86
. LEVER
89A-14588-00-00
Unavailable
87
. PIPE
8A7-14197-00-00
Unavailable
88
. HOSE
8CH-14987-10-00
Unavailable
89
CLIP (3G0)
90467-10039-00
Unavailable
90
. COVER
89A-24452-00-00
Unavailable
