Description

Price

1

NUT(6TA)

95317-06600-00

$3.55

2

BOLT, SMALL FLANGE

95027-08030-00

$3.76

3

BOLT, FLANGE(4ES)

95027-08080-00

Unavailable

4

HARNESS, WIRE

8EK-82105-00-00

Unavailable

5

CLAMP

90462-08016-00

$26.99

6

CLAMP(4FM)

90464-15195-00

$4.41

7

DAMPER

8CW-82176-00-00

Unavailable

8

PIPE (L320)

8CW-8235W-01-00

Unavailable

9

CLIP(41W)

90467-08092-00

$9.49

10

. BRACKET, BATTERY

8DM-2199G-00-00

Unavailable

11

BOLT, FLANGE

95817-06014-00

Unavailable

12

. SHIELD, HEAT

8CW-2199H-00-00

Unavailable

13

. SEAT, BATTERY

8DM-82122-00-00

Unavailable

14

BAND, BATTERY

8DM-82131-10-00

$16.49

15

WIRE, PLUS LEAD

8DY-82115-00-00

Unavailable

16

STARTER RELAY ASSY (RC19-005)

4BH-81940-02-00

Unavailable

17

FUSE (12V 30A)

1AE-82151-00-00

Unavailable

18

BOLT, SMALL FLANGE

95027-06008-00

Unavailable

19

COVER, BATTERY

8DM-82129-01-00

Unavailable

20

. HOLDER, RELAY

8CY-81952-00-00

Unavailable

21

Y50N18LA YUASA BATTERY

Y50-N18LA-00-00

Unavailable

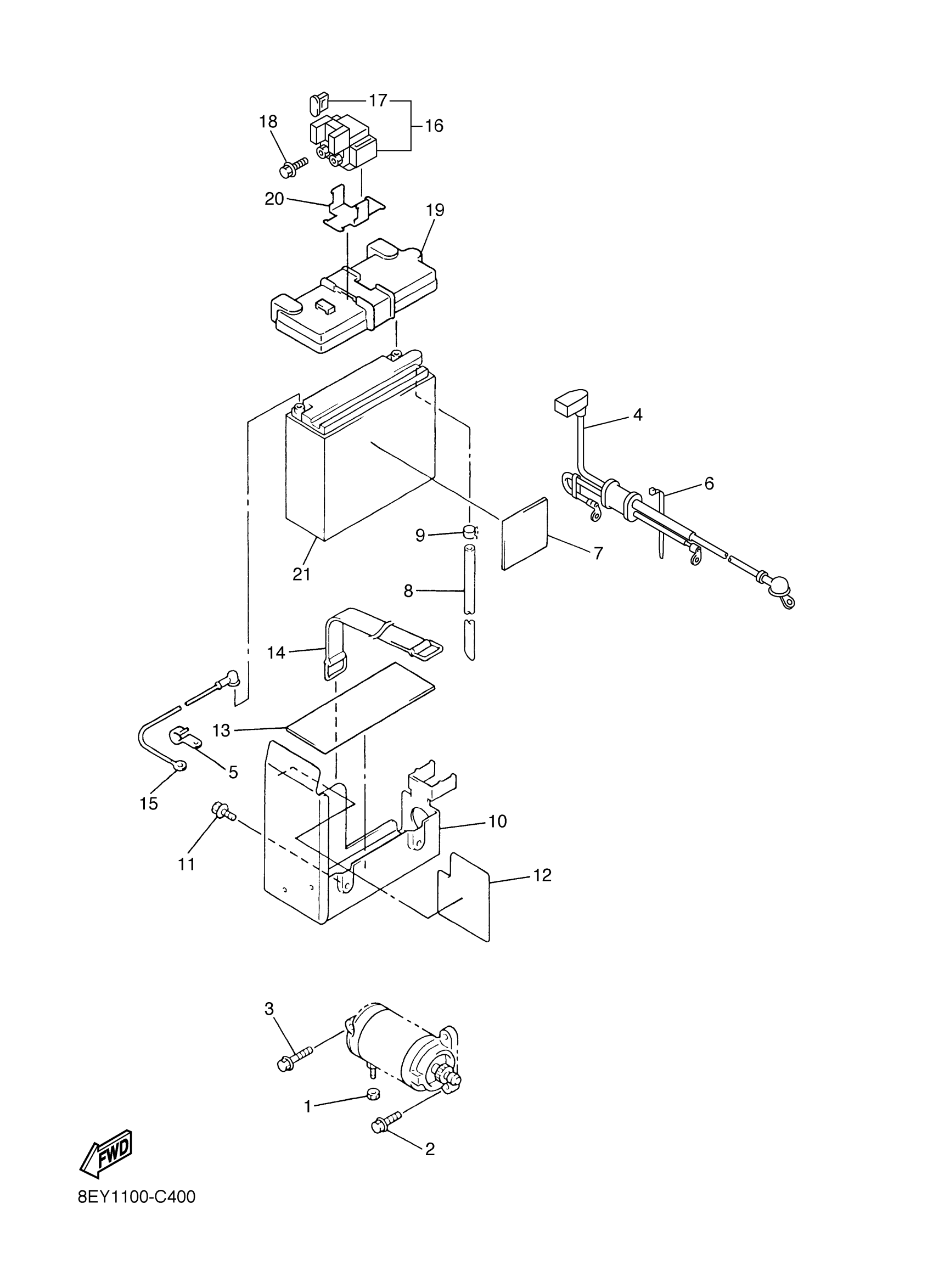

Yamaha SXV60ERJ (SX VENOM ER) 8EY1 2004 ELECTRICAL 2 Diagram

NUT(6TA)

BOLT, SMALL FLANGE

BOLT, FLANGE(4ES)

HARNESS, WIRE

CLAMP

CLAMP(4FM)

DAMPER

PIPE (L320)

CLIP(41W)

. BRACKET, BATTERY

BOLT, FLANGE

. SHIELD, HEAT

. SEAT, BATTERY

BAND, BATTERY

WIRE, PLUS LEAD

STARTER RELAY ASSY (RC19-005)

FUSE (12V 30A)

BOLT, SMALL FLANGE

COVER, BATTERY

. HOLDER, RELAY

Y50N18LA YUASA BATTERY
