- SXV60ERJ (SX VENOM ER) 8EY1 2004
ELECTRICAL 1

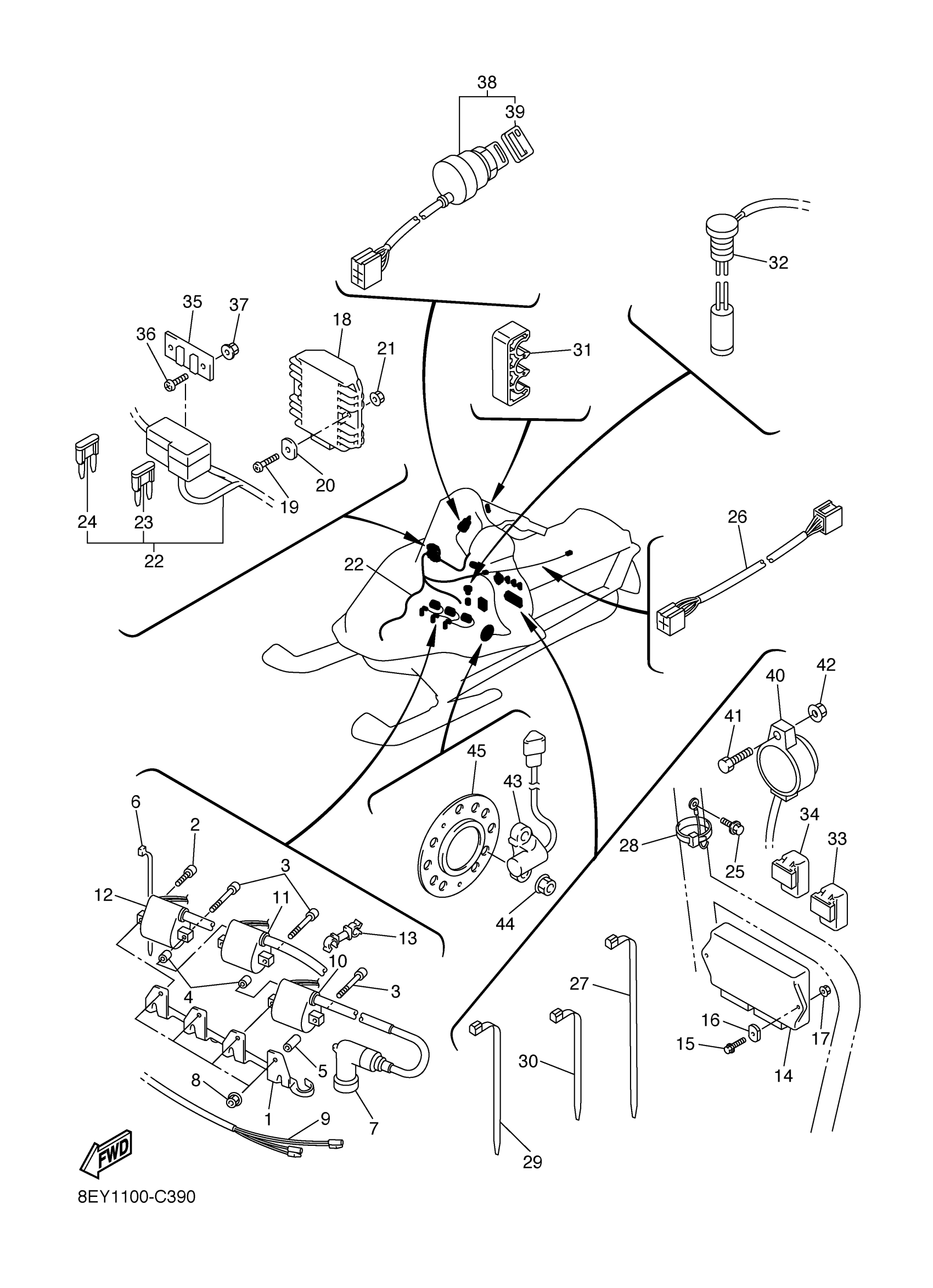

Yamaha SXV60ERJ (SX VENOM ER) 8EY1 2004 ELECTRICAL 1 Diagram
#
1
BRACKET, IGNITION COIL
8DM-82316-00-00
Unavailable
2
BOLT,SOCKET
91317-06020-00
Unavailable
3
BOLT,SOCKET
91317-06040-00
$3.76
4
COLLAR
90387-07020-00
$8.49
5
COLLAR, LEVER 1
36Y-83913-01-00
$9.99
6
CLAMP(4FM)
90464-15195-00
$4.41
7
PLUG CAP ASSY
8DF-82370-00-00
$41.99
8
NUT,SELF-LOCKING
95607-06200-00
$12.49
9
WIRE, SUB LEAD
8DM-82509-00-00
Unavailable
10
IGNITION COIL ASSY
8DF-82310-10-00
Unavailable
11
IGNITION COIL ASSY
8DF-82310-10-00
Unavailable
12
IGNITION COIL ASSY
8DM-82310-30-00
$142.99
13
CLAMP
90464-10002-00
Unavailable
14
C.D.I. UNIT ASSY
8EX-85540-00-00
Unavailable
15
BOLT, FLANGE
95817-06020-00
$3.81
16
NUT,SPEC'L SHAPE
90179-06W01-00
Unavailable
17
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
18
RECTIFIER & REGULATOR ASSY
5BN-81960-00-00
Unavailable
19
SCREW, BINDING
98907-06025-00
Unavailable
20
NUT,SPEC'L SHAPE
90179-06W01-00
Unavailable
21
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
22
WIRE HARNESS ASSY
8EY-82590-00-00
Unavailable
23
FUSE
5JJ-82151-20-00
Unavailable
24
. FUSE (10A)
67F-82151-40-00
Unavailable
25
BOLT(3JP)
97017-06010-00
Unavailable
26
WIRE, LEAD
8DM-8471G-00-00
Unavailable
27
BAND, SWITCH CORD
25G-83936-01-00
Unavailable
28
CLAMP(4FM)
90464-15195-00
$4.41
29
CLAMP(4FM)
90464-15195-00
$4.41
30
CLAMP
90464-13077-00
Unavailable
31
CLAMP
90464-07007-00
Unavailable
32
OIL LEVEL GAUGE ASSY
8CR-85720-02-00
Unavailable
33
RELAY ASSY
5DM-81950-01-00
Unavailable
34
RELAY ASSY (8DM-00)
8DM-81950-00-00
Unavailable
35
BRACKET
JT1-83614-00-00
Unavailable
36
SCREW, BINDING
98907-06014-00
Unavailable
37
NUT,SELF-LOCKING
95607-06200-00
$12.49
38
MAIN SWITCH ASSY
8FE-82510-00-00
Unavailable
39
CAP, KEY
526-82579-00-00
Unavailable
40
BUZZER
8CW-83383-00-00
Unavailable
41
BOLT(3JK)
97027-05020-00
Unavailable
42
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
43
SENSOR, SPEED
8FP-83755-01-00
Unavailable
44
NUT, NYLON
95717-08300-00
Unavailable
45
HOUSING, FRONT AXLE
8EK-47551-00-00
Unavailable
