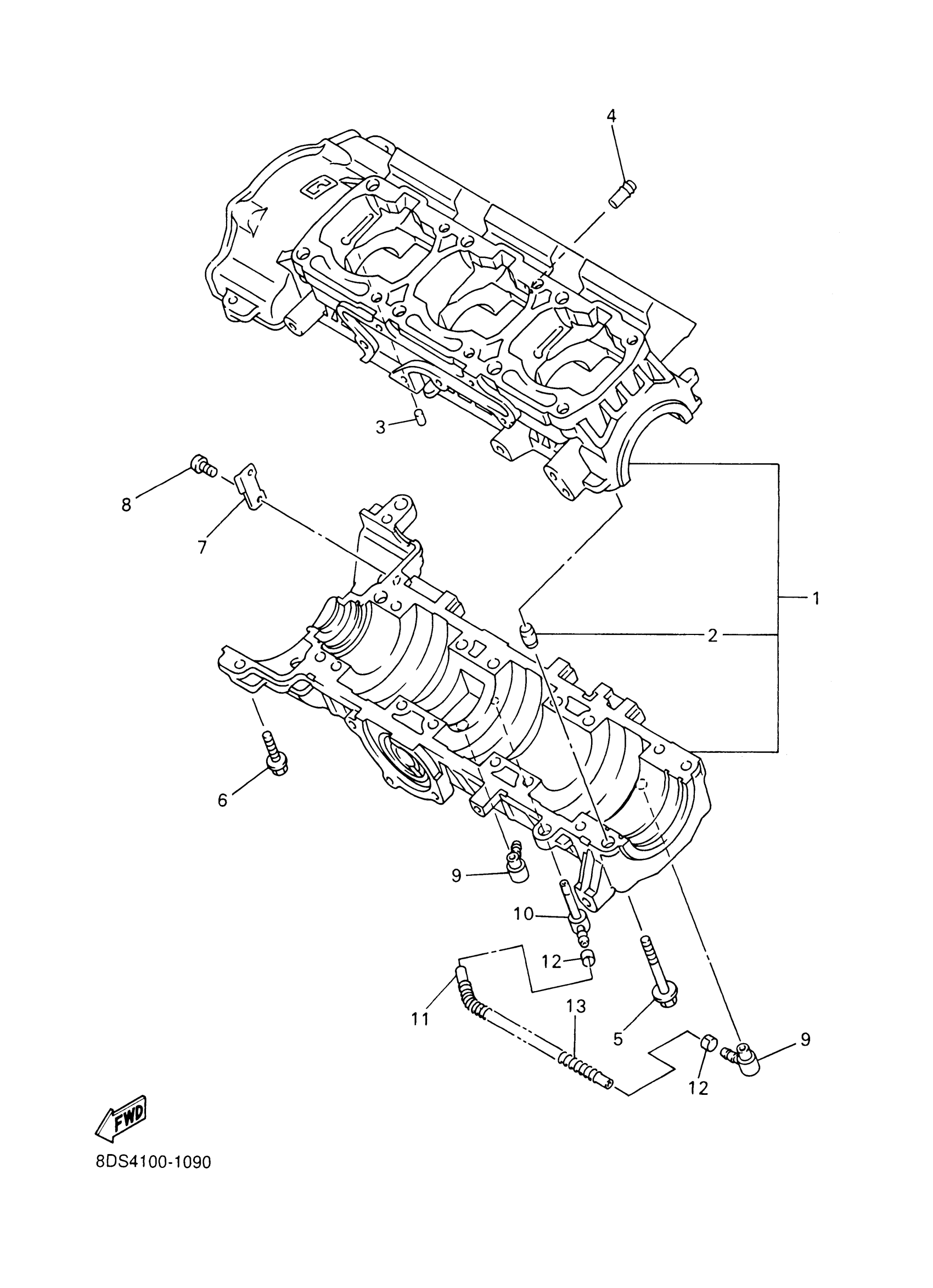

Yamaha SXV60ERJ (SX VENOM ER) 8EY1 2004 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

8CH-15100-03-00

Unavailable

2

PIN, DOWEL

99530-12016-00

$4.89

3

PIN, DOWEL (8G8)

93605-10108-00

$8.49

4

JOINT, BREATHER

J38-11116-00-00

$3.80

5

BOLT, FLANGE(JF2)

95817-08080-00

$4.24

6

BOLT, FLANGE

95817-08035-00

$9.49

7

CLAMP

90461-12145-00

Unavailable

8

SCREW, PAN

98517-06012-00

$3.78

9

NOZZLE

353-13552-01-00

$9.99

10

NOZZLE

8CH-13552-00-00

Unavailable

11

TUBE, FLEXIBLE VINYL(8AV)

91A30-03039-00

$10.49

12

CLIP (2A6)

90468-02025-00

$9.49

13

SPRING, COMPRESSION(3JK)

90501-101J5-00

$19.99
