Description

Price

1

HANDLEBAR

8LJ-F6111-00-00

$86.99

2

GRIP

8JR-F6241-00-00

$18.99

3

NUT

8JR-F3856-10-00

Unavailable

4

LEVER HOLDER ASSY

8ND-H2720-10-00

$303.99

5

CLIP, 1

8JP-RAC10-10-00

Unavailable

6

NUT, 0.125

8JP-RA346-00-00

$1.64

7

GRIP,WARMER

8NT-F626A-10-00

Unavailable

8

LEVER HOLDER ASSY

8MY-H2710-00-00

$9.49

9

STOP SWITCH

8ND-H6284-00-00

$66.99

10

CLAMP

8MY-H2544-00-00

$5.60

11

SCREW

8MY-RA200-00-00

$0.64

12

WIRE, THROTTLE 1

8NT-F6311-00-00

Unavailable

13

PROTECTOR, HANDLEB

8JP-F6124-00-00

Unavailable

14

TIE, CABLE-8.5/7.5/7.4

8JM-RAB01-00-00

Unavailable

14

CLAMP, 1 (4-INCH)

8JP-RAB03-00-00

Unavailable

15

RING RETAINING

8JM-RAH02-00-00

Unavailable

16

SCREW, 8-18X0.875

8ML-RA286-00-00

Unavailable

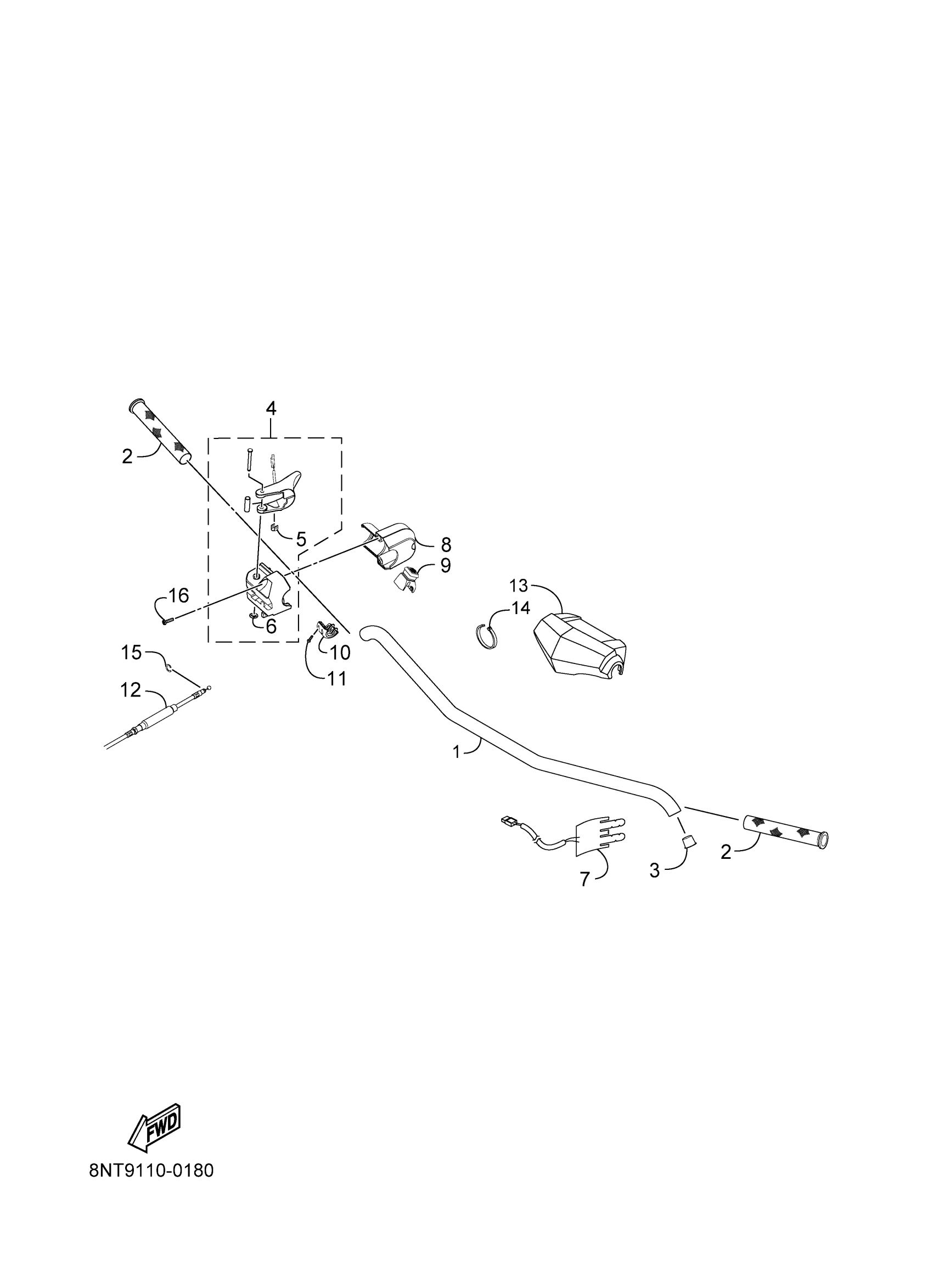

Yamaha SXV4NSB (SXVENOM) 8NT9 2025 STEERING Diagram

HANDLEBAR

GRIP

NUT

LEVER HOLDER ASSY

CLIP, 1

NUT, 0.125

GRIP,WARMER

LEVER HOLDER ASSY

STOP SWITCH

CLAMP

SCREW

WIRE, THROTTLE 1

PROTECTOR, HANDLEB

TIE, CABLE-8.5/7.5/7.4

CLAMP, 1 (4-INCH)

RING RETAINING

SCREW, 8-18X0.875
