- SXV4NPL (SXVENOM) 8NT5 2023
TRACK SUSPENSION 2

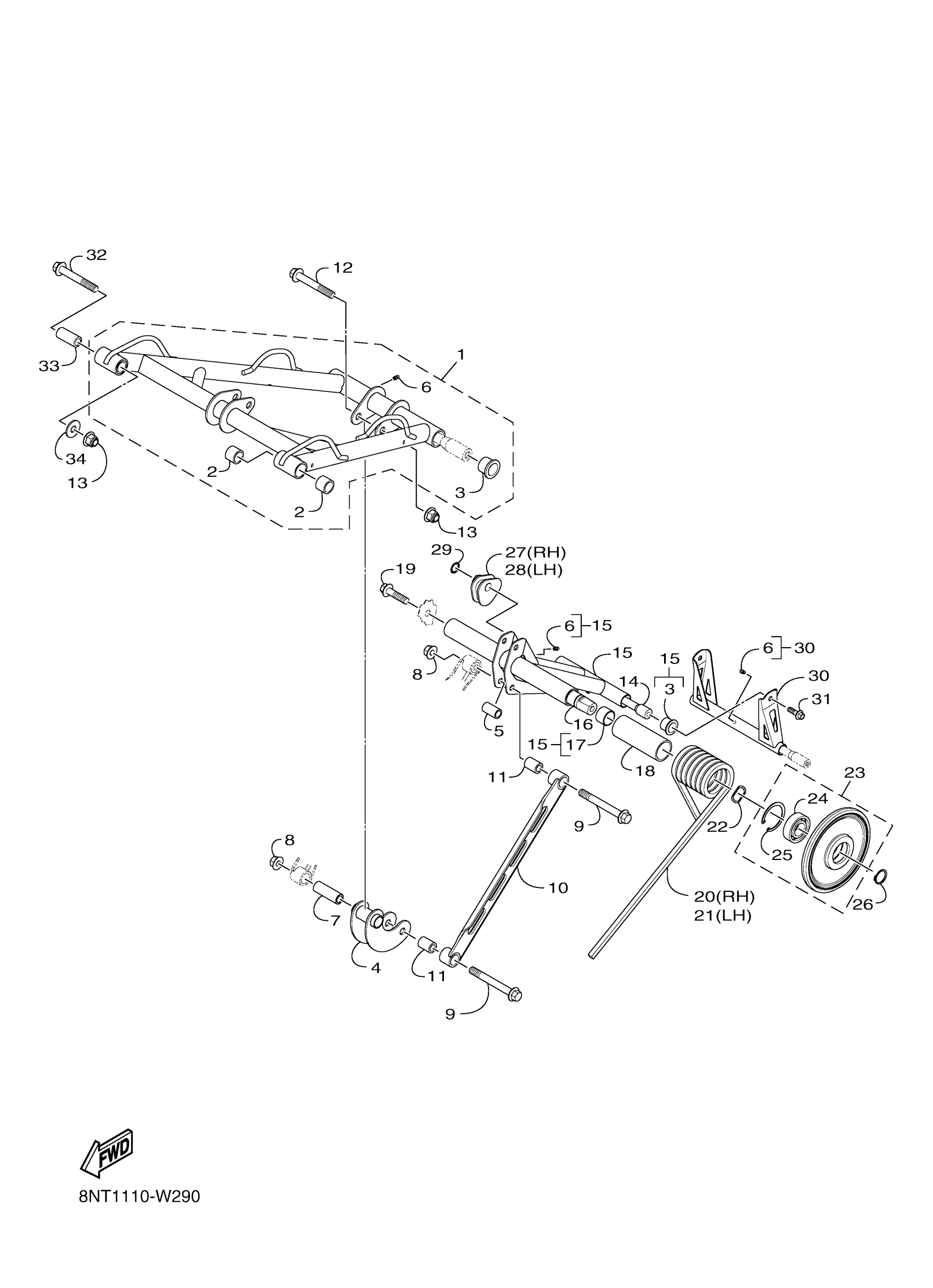

Yamaha SXV4NPL (SXVENOM) 8NT5 2023 TRACK SUSPENSION 2 Diagram
#
1
ARM, PIVOT 1
8NT-G7331-00-00
Unavailable
2
BUSH, 5
8JP-RA814-00-00
$4.46
3
BUSH, 0.751
8JP-RA812-00-00
$4.35
4
BRACKET, ARM PIVOT
8NT-G7349-00-00
$73.99
5
COLLAR, 12
8JP-RA724-00-00
$5.60
6
NIPPLE, GREASE 1
8JP-RAL01-00-00
$2.44
7
SHAFT 1
8NT-G7465-00-00
$5.60
8
NUT, SELF-LOCKING
8NT-RA378-00-00
$1.11
9
BOLT, FLANGE
8NT-RA1B4-00-00
$16.99
10
ROD, RELAY
8NT-G7494-00-00
$75.99
11
COLLAR, 19
8JP-RA735-00-00
$2.75
12
BOLT, FLANGE
8NT-RA108-00-00
$3.40
13
NUT, FLG. LOCKING
8JP-RA360-00-00
$1.16
14
SHAFT 5
8JR-G7487-10-00
$40.99
15
ARM, PIVOT 2
8NT-G7332-00-00
$168.99
16
SHAFT 2
8JR-G7475-30-00
Unavailable
17
BUSH, 6
8JP-RA815-00-00
Unavailable
18
PROTECTOR
8NT-G7445-00-00
Unavailable
19
BOLT, FLG. M10X1.2
8JP-RA1A0-00-00
Unavailable
20
SPRING, REAR 2
8NT-G7474-00-00
Unavailable
21
SPRING, REAR 1
8NT-G7473-00-00
Unavailable
22
WASHER, 25X36X1
8JP-RA446-00-00
Unavailable
23
WHEEL,SUSPENSION 2
8JR-G7312-00-00
Unavailable
24
BEARING, 3
8JP-RAG08-00-00
Unavailable
25
CIRCLIP, 4
8JP-RAH10-00-00
Unavailable
26
CIRCLIP, 5
8JP-RAH11-00-00
Unavailable
27
BLOCK, SPRING-ADJUSTER-RH
8JM-G7448-00-00
Unavailable
28
BLOCK, SPRING-ADJUSTER-LH
8JM-G7447-00-00
Unavailable
29
RING,RETAINING-ADJ BLOCK 9/16
8JM-RA315-00-00
Unavailable
30
BRACKET 3
8JR-G7417-10-00
Unavailable
31
BOLT, FLG. M8X1.25
8JP-RA186-00-00
Unavailable
32
SCREW, 7
8JP-RA296-00-00
Unavailable
33
COLLAR, 16
8JP-RA733-00-00
Unavailable
34
WASHER, PLAIN
8JP-RA462-00-00
Unavailable
