Description

Price

1

FRONT AXLE SUB-ASS

8NT-G7501-00-00

$419.99

2

SENSOR, SPEED

8ND-H3755-00-00

Unavailable

3

MAGNET

8JP-H366M-00-00

$7.49

4

AXLE, FRONT

8JP-G7511-10-00

$277.99

5

WHEEL, SPROCKET 1

8NT-G7531-00-00

Unavailable

6

CALIPER SEAL KIT

8JP-F5803-01-00

$20.99

7

SEAL, OIL 45X65X8

8JP-RAE02-10-00

$4.94

8

CIRCLIP, FS-0175

8JP-RAH07-00-00

$2.75

9

BOLT, FLG. M8X1.25

8JP-RA189-00-00

Unavailable

10

SECONDARY SHAFT CO

8NT-E7680-00-00

$231.99

11

SHAFT, SECONDARY

8NT-E7681-00-00

$169.99

12

HOUSING, BEARING

8NT-G7631-00-00

$36.99

13

BEARING

8NT-RAG07-00-00

$19.99

14

CIRCLIP, 1

8ND-RAH03-00-00

$4.19

15

STAY 1

8NT-G7565-00-00

$28.99

16

BOLT FLANGE M6X1.0X

8MF-RA183-00-00

Unavailable

17

BOLT, FLG. M6X1.0X

8JP-RA183-00-00

Unavailable

18

NUT,FLG. M6-1.0

8JM-RA322-00-00

Unavailable

19

SCREW, M8X1.25X37

8JP-RA274-00-00

Unavailable

20

NUT,HEX FLG-NYL LOCK M8X1.25

8JM-RA301-00-00

Unavailable

21

CLAMP, 21

8JP-RAB23-00-00

Unavailable

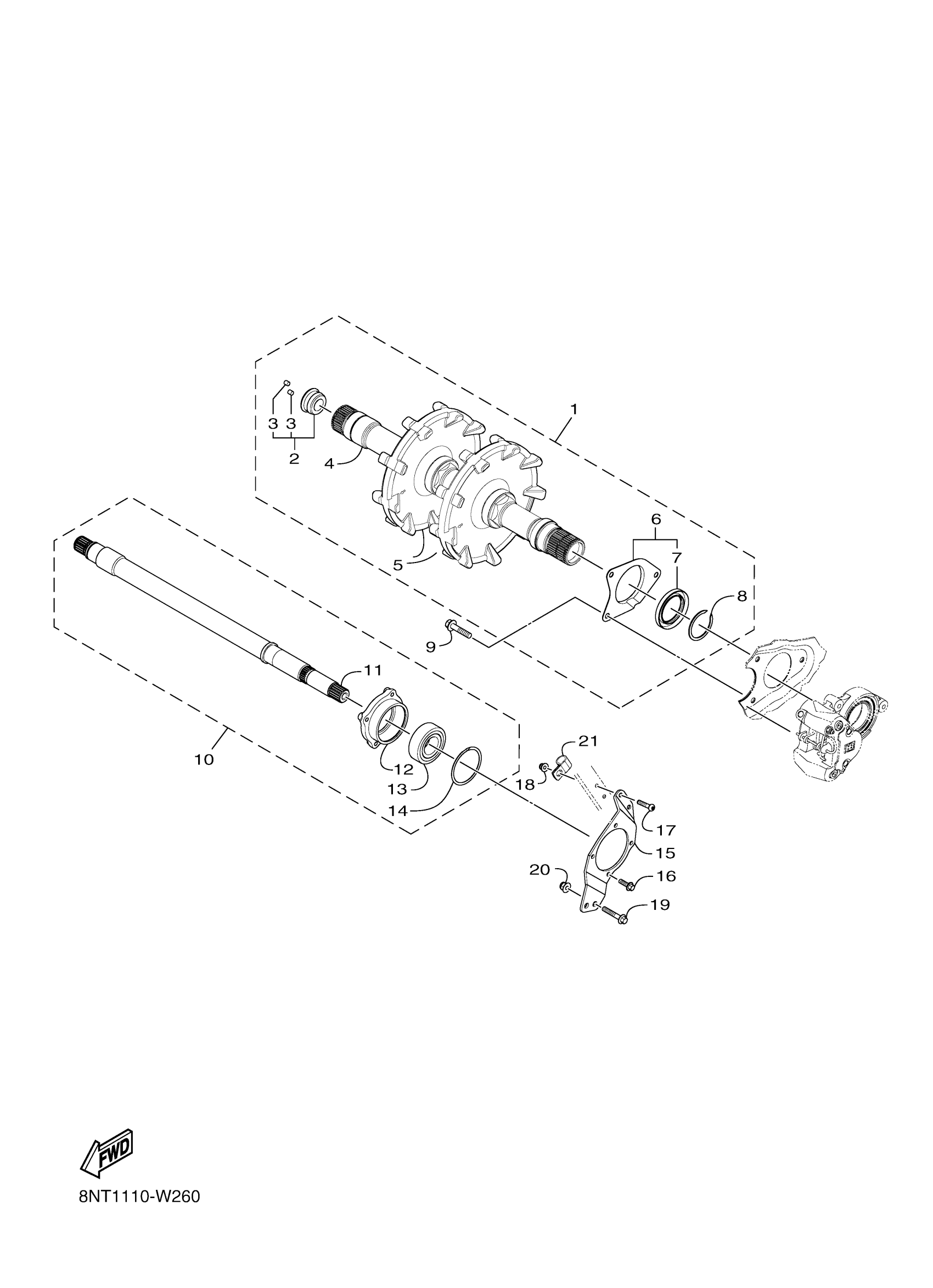

Yamaha SXV4NPL (SXVENOM) 8NT5 2023 TRACK DRIVE 1 Diagram

FRONT AXLE SUB-ASS

SENSOR, SPEED

MAGNET

AXLE, FRONT

WHEEL, SPROCKET 1

CALIPER SEAL KIT

SEAL, OIL 45X65X8

CIRCLIP, FS-0175

BOLT, FLG. M8X1.25

SECONDARY SHAFT CO

SHAFT, SECONDARY

HOUSING, BEARING

BEARING

CIRCLIP, 1

STAY 1

BOLT FLANGE M6X1.0X

BOLT, FLG. M6X1.0X

NUT,FLG. M6-1.0

SCREW, M8X1.25X37

NUT,HEX FLG-NYL LOCK M8X1.25

CLAMP, 21
