RADIATOR & HOSE

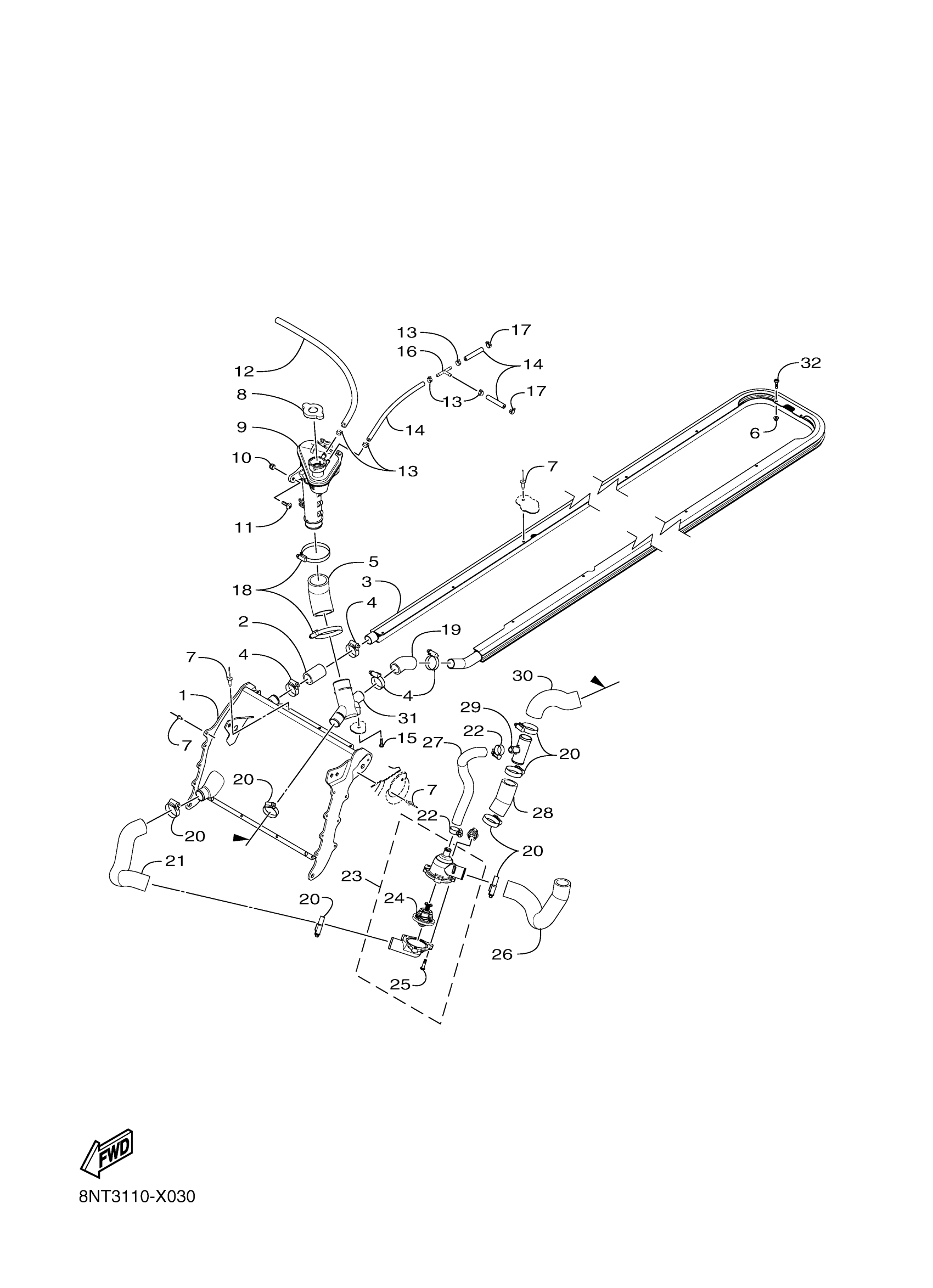

Yamaha SXV4NPL (SXVENOM) 8NT5 2023 RADIATOR & HOSE Diagram
#
1
EXCHANGER, HEAT
8NT-E2466-00-00
$577.99
2
HOSE, 4
8KC-E244G-00-00
$2.97
3
EXCANGER, HEAT 2
8NT-E241E-00-00
$231.99
4
CLAMP, 22
8JP-RAB24-00-00
Unavailable
5
HOSE 1
8NT-E243A-00-00
$28.99
6
NUT, FLG. LOCKING
8JP-RA363-00-00
$1.16
7
RIVET, 11
8JP-RA520-00-00
$0.70
8
CAP, RADIATOR
8ND-E2462-00-00
$93.99
9
NECK, FILLER
8ND-E2521-00-00
Unavailable
10
NUT, LOCK 1
8JP-RA379-00-00
$0.54
11
SCREW, M6X1.0X25
8JP-RA263-00-00
Unavailable
12
HOSE, 10
8ND-RA900-00-00
Unavailable
12
HOSE, 11
8ND-RA902-00-00
Unavailable
13
CLAMP, 25
8JP-RAB27-00-00
Unavailable
14
HOSE, 1
8KC-RA905-00-00
Unavailable
15
SCREW, 10-14X3/4
8JP-RA289-00-00
Unavailable
16
PIPE, JOINT
8KC-E4485-00-00
Unavailable
17
CLAMP 1
8ND-E2491-00-00
Unavailable
18
CLAMP, 22
8ND-RAB24-00-00
Unavailable
19
HOSE, 4
8NT-E244G-00-00
Unavailable
20
CLAMP,26
8JP-RAB29-00-00
Unavailable
21
HOSE 5
8NT-E244H-00-00
Unavailable
22
CLAMP, HOSE
8JP-F1823-00-00
Unavailable
23
HOUSING, THERMOSTA
8NT-E2417-00-00
Unavailable
24
THERMOSTAT ASSY
8NT-E2410-00-00
Unavailable
25
SCREW, M5X0.8X20
8JP-RA244-00-00
Unavailable
26
HOSE,3
8NT-E243F-00-00
Unavailable
27
HOSE 8
8NT-E2552-00-00
Unavailable
28
HOSE 2
8NT-E243E-00-00
Unavailable
29
JOINT
8NT-E2446-00-00
Unavailable
30
HOSE 7
8NT-E2551-00-00
Unavailable
31
JOINT ASSY 1
8NT-E240L-00-00
Unavailable
32
SCREW, 5
8LJ-RA239-00-00
Unavailable
