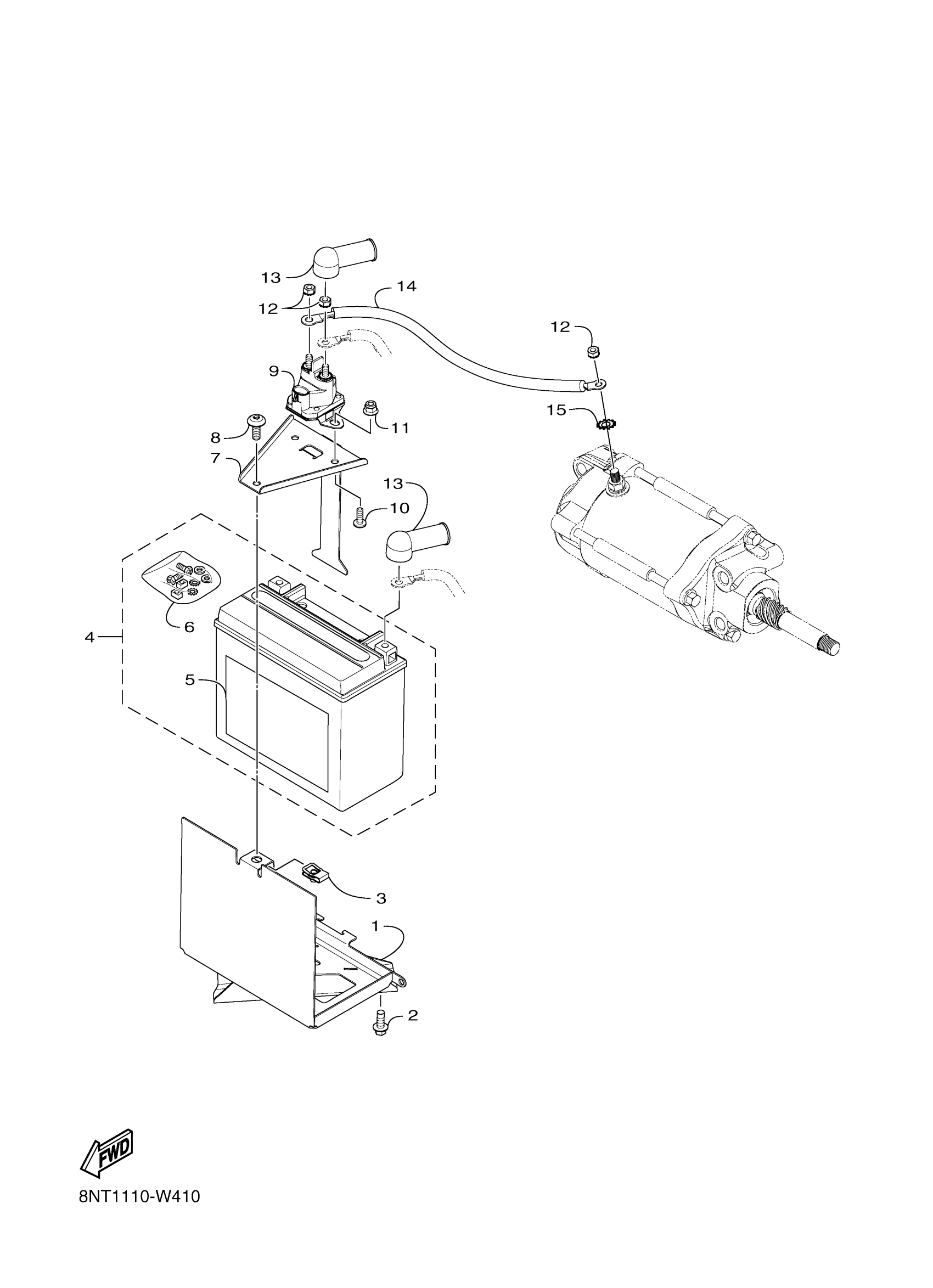

Yamaha SXV4NPL (SXVENOM) 8NT5 2023 ELECTRICAL 2 Diagram

SEAT, BATTERY

8NT-H2122-00-00

$53.99

BOLT, FLANGE

8NT-RA1A0-00-00

$5.60

NUT, CLIP M6

8JP-RA354-00-00

$0.96

YTX20HBS YUASA BATTERY - SA

YTX-20HBS-00-00

Unavailable

. LABEL, BATTERY

8JP-H2141-00-00

Unavailable

. REPAIR PARTS KIT

8JP-F819G-00-00

Unavailable

BRACKET, BATTERY 2

8NT-H2158-00-00

Unavailable

SCREW, M6X1.0X20

8JP-RA260-00-00

$0.54

STARTER RELAY ASSY

8MT-H1940-00-00

$37.99

SCREW

8KC-RA229-00-00

$0.54

NUT,FLG. M6-1.0

8JM-RA322-00-00

$1.07

NUT, WITH WASHER M

8JP-RA375-00-00

$0.48

COVER, TERMINAL

8NT-H1916-00-00

$3.02

CABLE 2

8NT-H8147-00-00

$36.99

WASHER,LOCK-1/4 EXT TOOTH TYP

8JM-RA407-00-00

$0.27
