TRACK SUSPENSION 1

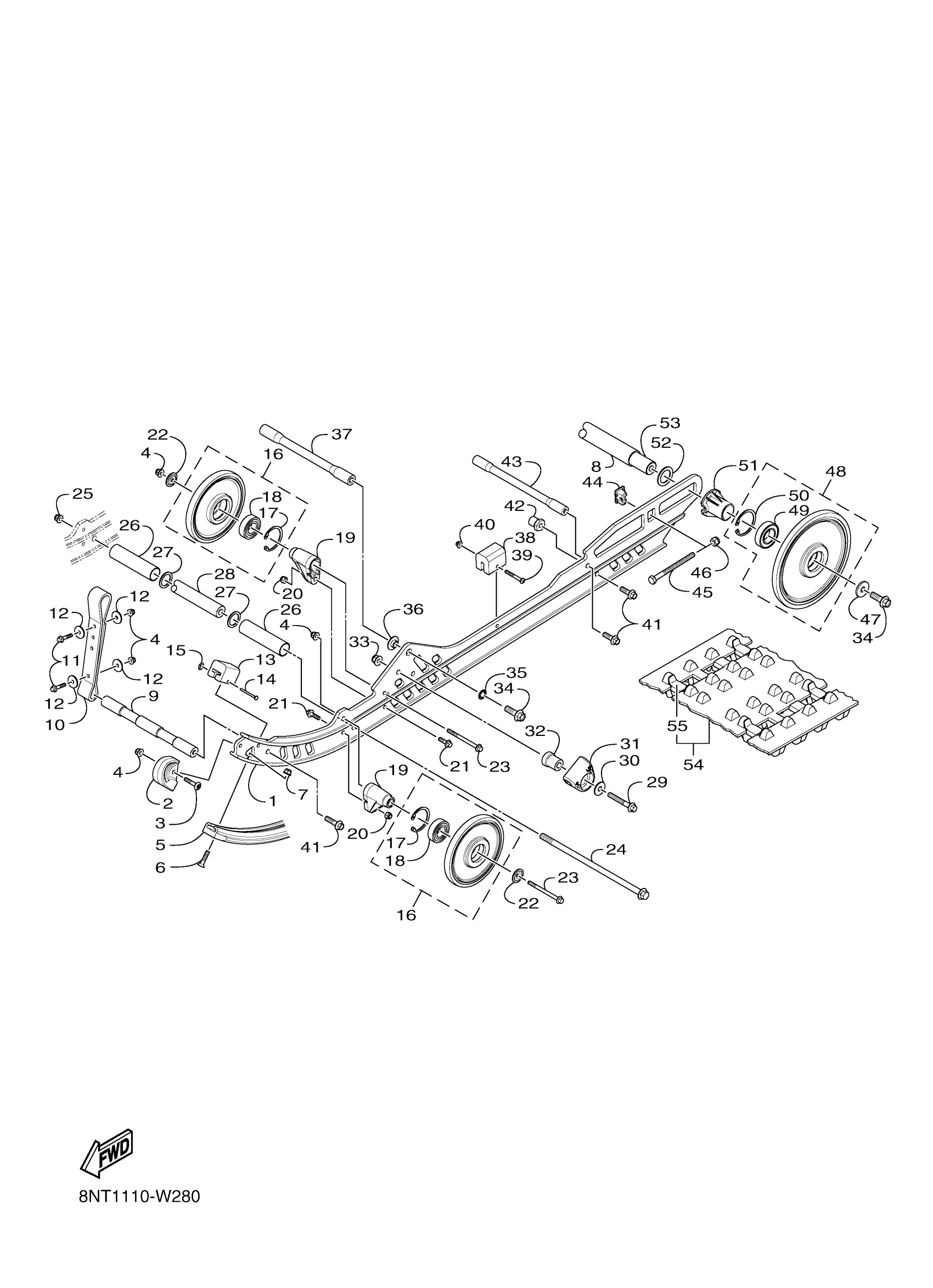

Yamaha SXV4NNS (SXVENOM) 8NT3 2022 TRACK SUSPENSION 1 Diagram
#
1
FRAME, SLIDING
8NT-G741A-10-00
Unavailable
2
RUNNER, SLIDING 2
8JP-G7422-10-00
Unavailable
3
SCREW, M6X1.0X30
8JP-RA266-00-00
$1.43
4
NUT,FLG. M6-1.0
8JM-RA322-00-00
$1.07
5
RUNNER, SLIDING 1
8NT-G7421-00-00
$32.99
6
SCREW,MACH-PHFH 1/4-20 X 1 1/8
8JM-RA206-00-00
$1.43
7
NUT, FLG. LOCKING
8JP-RA357-00-00
$0.54
8
COLLAR, 18
8JY-RA734-00-00
Unavailable
9
SHAFT 3
8JR-G7485-00-00
Unavailable
10
STOPPER 1
8KG-G7495-10-00
Unavailable
11
BOLT, FLG. M6X1.0X
8JP-RA183-00-00
$1.16
12
WASHER, 6.87X25.4X
8JP-RA450-00-00
$0.85
13
PAD, SHOCK - RUBBER
8JM-G7456-00-00
$7.49
14
RIVET, SOLID - 1/8 X 1.50
8JM-RAY02-00-00
$1.06
15
NUT, 0.125
8JP-RA346-00-00
$1.64
16
SUSPENSION WHEEL A
8ML-G7310-00-00
Unavailable
17
CIRCLIP, 2
8JM-RAH01-00-00
Unavailable
18
BRNG,WHL-NSK CHINA6004-W/ENS G
8JM-RAY03-00-00
Unavailable
19
BRACKET 7
8JP-G7419-10-00
Unavailable
20
NUT, LOCK 1
8JP-RA379-00-00
Unavailable
21
BOLT, FLANGE 2
8JP-RA1B6-00-00
Unavailable
22
WASHER, 9
8JP-RA466-00-00
Unavailable
23
BOLT, FLANGE 1
8JP-RA1B5-00-00
Unavailable
24
BOLT, FLG. M10-1.2
8JP-RA194-10-00
Unavailable
25
NUT, FLG. LOCKING
8JP-RA360-00-00
Unavailable
26
COLLAR, 11
8JP-RA723-00-00
Unavailable
27
WASHER, 0.890X1.19
8JP-RA437-00-00
Unavailable
28
COLLAR, 22.2
8JP-RA729-00-00
Unavailable
29
BOLT, HEXAGON
8JP-RA1B7-00-00
Unavailable
30
WASHER, 9.12X25.40
8JP-RA452-00-00
Unavailable
31
HOOK 1
8JP-G7446-00-00
Unavailable
32
COLLAR
8JP-G7319-00-00
Unavailable
33
NUT,HEX FLG-NYL LOCK M8X1.25
8JM-RA301-00-00
Unavailable
34
BOLT, FLG. M10X1.2
8JP-RA199-00-00
Unavailable
35
WASHER, TOOTH M10
8JP-RA457-00-00
Unavailable
36
COLLAR, 13
8JP-RA725-00-00
Unavailable
37
SHAFT 4
8JP-G7486-10-00
Unavailable
38
DAMPER 2
8JP-G7457-00-00
Unavailable
39
SCREW, M5X0.8X40
8JP-RA249-00-00
Unavailable
40
NUT, FLG. LOCKING
8JP-RA363-00-00
Unavailable
41
BOLT, FLG. M8X1.25
8JP-RA186-00-00
Unavailable
42
NUT
8JR-G7368-00-00
Unavailable
43
SHAFT 6
8JR-G7488-00-00
Unavailable
44
BRACKET 5
8JP-G7463-00-00
Unavailable
45
BOLT, HEX. M8X1.25
8JP-RA1B1-00-00
Unavailable
46
NUT, HEX. LOCKING
8JP-RA372-00-00
Unavailable
47
WASHER, M10X29
8JP-RA453-00-00
Unavailable
48
GUIDE WHEEL ASSY
8NN-G7550-00-00
Unavailable
49
BEARING, 2
8JM-RAY03-10-00
Unavailable
50
CIRCLIP, 2
8JM-RAH01-10-00
Unavailable
51
WHEEL, GUIDE 1
8JP-G7534-10-00
Unavailable
52
WASHER, 25X36X2
8JP-RA447-00-00
Unavailable
53
AXLE, REAR
8JP-G7521-20-00
Unavailable
54
TRACK ASSY
8NT-G7110-00-00
Unavailable
55
PLATE, REINFORCEME
8JP-G7113-00-00
Unavailable
