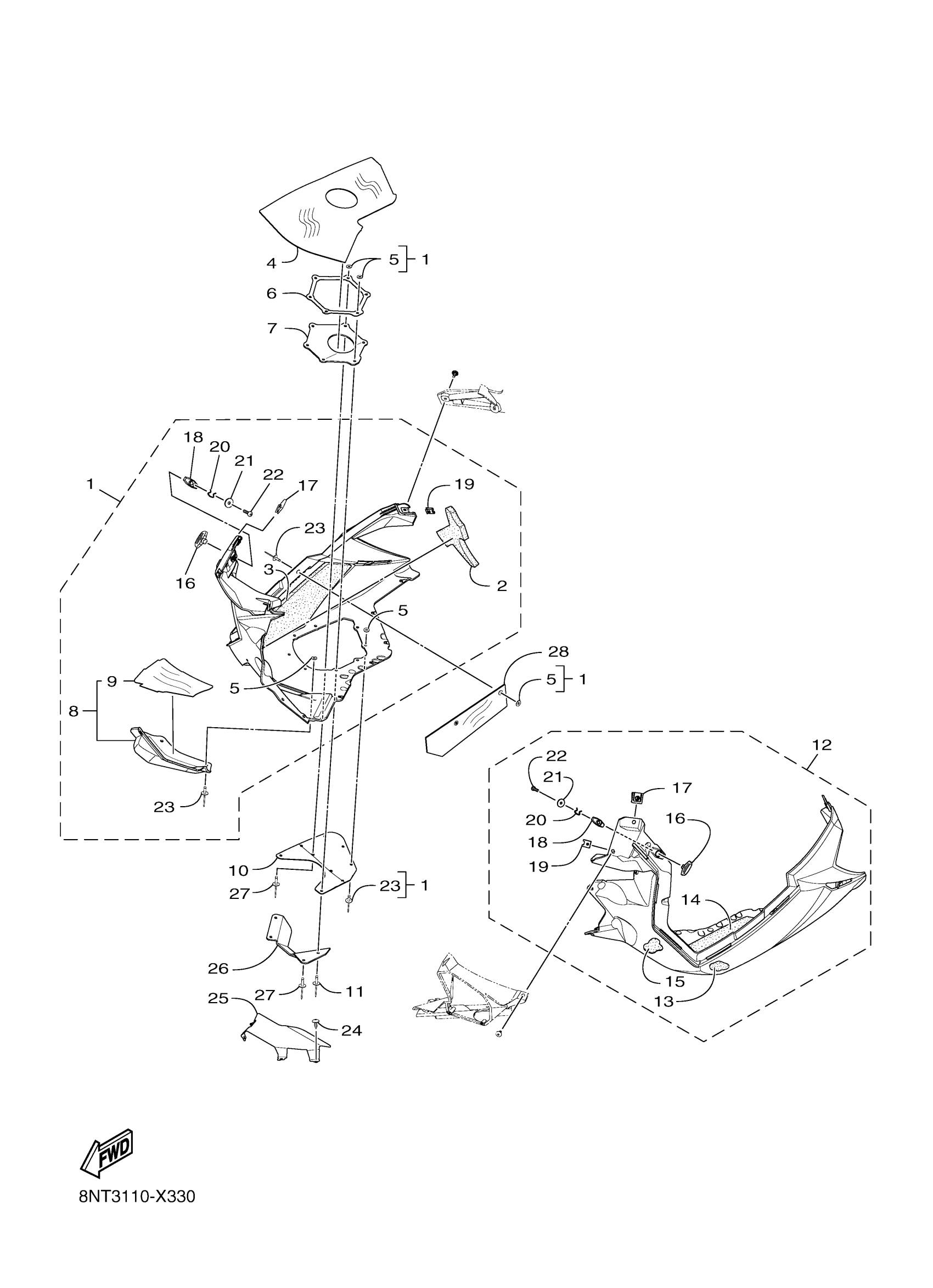

Yamaha SXV4NNS (SXVENOM) 8NT3 2022 HOOD Diagram
#
Description
Price
1
SHELL SIDE PANEL A
8NU-K8140-00-00
$220.99
2
DAMPER, NOISE 16
8ND-K7276-00-00
Unavailable
3
DAMPER, NOISE 15
8NS-K7275-00-00
$22.99
4
PROTECTOR 5
8ND-K7555-00-00
$40.99
5
WASHER,FLAT .194X.50X.048
8JM-RA411-00-00
$0.27
6
PLATE 1
8ND-K8181-00-00
$12.49
7
SEAL, EXT. 1
8ND-G1138-00-00
$42.99
8
SHIELD 1
8ND-K7731-00-00
Unavailable
9
PROTECTOR 7
8ND-K7557-00-00
$19.99
10
PROTECTOR 1
8ND-K7551-00-00
$33.99
11
RIVET 1
8ND-K7155-00-00
$1.22
12
SHELL SIDE PANEL A
8NU-K8130-00-00
$220.99
13
DAMPER, NOISE 12
8NS-K7272-00-00
Unavailable
14
DAMPER, NOISE 11
8KC-K7271-00-00
$18.99
15
DAMPER, NOISE 13
8KC-K7273-00-00
$18.99
16
KNOB
8KC-K7324-00-00
Unavailable
17
NUT, CLIP 1/4
8JP-RA350-00-00
Unavailable
18
PLATE, BACK UP 1
8KC-K7153-00-00
Unavailable
19
NUT, CLIP 10
8JP-RA352-00-00
Unavailable
20
CLIP, 6
8JP-RAC15-00-00
Unavailable
21
WASHER
8JP-RA429-00-00
Unavailable
22
SCREW, 4
8KC-RA238-00-00
Unavailable
23
RIVET, 14
8JP-RA523-00-00
Unavailable
24
SCREW, TAPPING 1/4
8KC-RA202-00-00
Unavailable
25
SHIELD, HEAT
8NT-F199H-00-00
Unavailable
26
PROTECTOR 2
8ND-K7552-00-00
Unavailable
27
RIVET, 17
8LJ-RA529-00-00
Unavailable
28
SHIELD, HEAT
8NV-F199H-00-00
Unavailable
