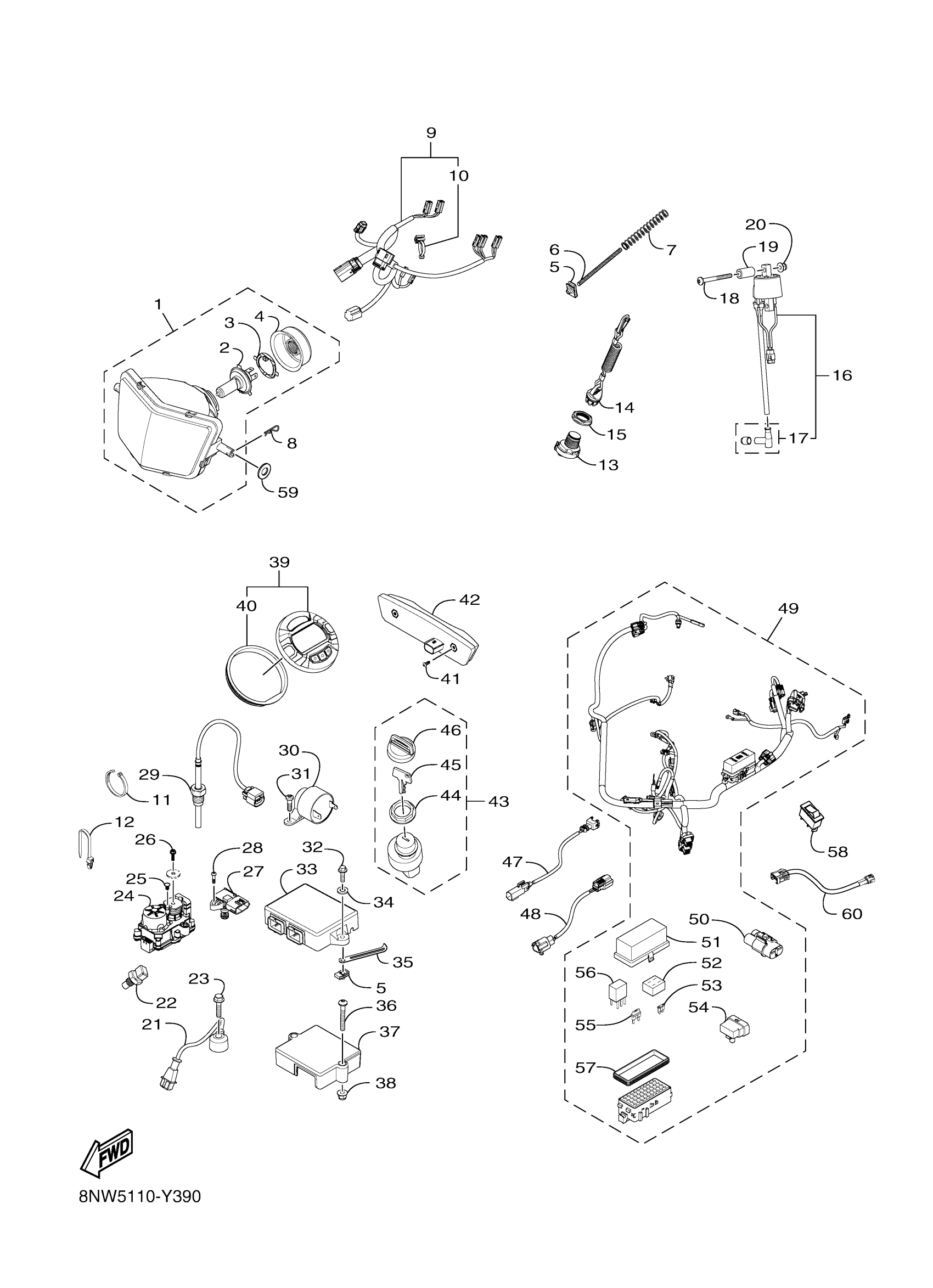

Yamaha SXV4NMSB (SXVENOM MOUNTAIN) 8NW9 2025 ELECTRICAL 1 Diagram
#
1
HEADLIGHT UNIT ASS
8ML-H4310-00-00
Unavailable
2
BULB, HEADLIGHT
8JR-H4314-00-00
$17.99
3
HOLDER BULB
8JP-H4393-00-00
$26.99
4
COVER, SOCKET
8ML-H4397-00-00
$4.88
5
NUT, CLIP M6
8JP-RA354-00-00
$0.96
6
SCREW,10-24X2
8MV-RA210-00-00
Unavailable
7
SPRING, COMPRESSIO
8MV-RAD07-00-00
Unavailable
8
CLIP
8MV-H4374-00-00
$0.74
9
WIRE HARNESS
8NT-H2105-10-00
Unavailable
10
CLAMP 1
8NT-K7135-00-00
Unavailable
11
TIE, CABLE-8.5/7.5/7.4
8JM-RAB01-00-00
Unavailable
11
CLAMP, 1 (4-INCH)
8JP-RAB03-00-00
Unavailable
11
CLAMP, 2 (11.5 INCH)
8JP-RAB04-00-00
Unavailable
11
CLAMP, 1 (17.5 INCH)
8ND-RAB03-00-00
Unavailable
12
CABLE TIE,PUSH MOUNT-XMAS CLIP
8JM-RAB02-00-00
Unavailable
13
STOP SWITCH
8ND-H6286-00-00
Unavailable
14
CAP, SWITCH
8MS-H2552-00-00
Unavailable
15
RING, RETAINING
8MS-H4395-00-00
Unavailable
16
IGNITION COIL ASSY
8ND-H2310-00-00
Unavailable
17
PLUG CAP ASSY
8ND-H2370-00-00
Unavailable
18
SCREW
8NT-RA265-00-00
Unavailable
19
COLLAR, 8
8JP-RA720-00-00
Unavailable
20
NUT,FLG. M6-1.0
8JM-RA322-00-00
Unavailable
21
SENSOR, KNOCK
8ND-H5780-00-00
Unavailable
22
THERMOSENSOR ASSY
8JP-H5790-00-00
Unavailable
23
BOLT, FLANGE
8ND-RA100-00-00
Unavailable
24
SERVO MOTOR ASSY
8NV-H5820-00-00
Unavailable
25
PLUG, 1
8NT-RA600-00-00
Unavailable
26
BOLT, FLANGE
8NW-RA191-00-00
Unavailable
27
SENSOR, PRESSURE
8ND-H2380-00-00
Unavailable
28
SCREW, TAPPING
8ND-RA201-00-00
Unavailable
29
SENSOR, HEAT
8ND-E4277-00-00
Unavailable
30
ALARM UNIT
8ND-H2564-00-00
Unavailable
31
SCREW, 13
8JP-RA2A2-00-00
Unavailable
32
BOLT, FLG. M6X1.0X
8JP-RA182-00-00
Unavailable
33
ENGINE CONTROL UNI
8NU-H591A-20-00
Unavailable
34
WASHER, SPRING 5/1
8ML-RA402-00-00
Unavailable
35
CLAMP, 20
8JP-RAB22-00-00
Unavailable
36
SCREW
8ND-RA264-00-00
Unavailable
37
RECTIFIER & REGULA
8ND-H1960-10-00
Unavailable
38
NUT,FLG. M6-1.0
8JM-RA322-00-00
Unavailable
39
SPEEDOMETER ASSY
8NT-H3501-10-00
Unavailable
40
GROMMET, PANEL MET
8NT-H361M-00-00
Unavailable
41
SCREW, M5X1.0X10
8JP-RA250-00-00
Unavailable
42
TAILLIGHT ASSY
8JP-H4500-00-00
Unavailable
43
MAIN SWITCH ASSY
8NT-H2510-00-00
Unavailable
44
. NUT, MAIN SWITCH
8JP-H2569-00-00
Unavailable
45
KEY (Y SERIESE, LE
8JP-H2511-00-00
Unavailable
45
KEY (Z SERIES, RIG
8JP-H2511-10-00
Unavailable
46
CAP, KEY
8JP-H2577-01-00
Unavailable
47
EXTENSION, WIRE HA
8NT-H258A-00-00
Unavailable
48
EXTENSION, WIRE HA
8LN-H2586-00-00
Unavailable
49
WIRE HARNESS ASSY
8NT-H2590-10-00
Unavailable
50
CAP, PLUG
8ND-H2371-00-00
Unavailable
51
COVER, FUSE BOX
8JP-H2172-00-00
Unavailable
52
. HOLDER, FUSE
8JP-H2152-00-00
Unavailable
53
FUSE (15A)
8JP-H2151-00-00
Unavailable
53
FUSE (20A)
8JP-H2151-10-00
Unavailable
53
FUSE (30A)
8JP-H2151-30-00
Unavailable
53
FUSE
8ND-H2151-00-00
Unavailable
54
COVER, CONNECTER
8JP-H1662-10-00
Unavailable
55
DIODE
8ND-H1974-00-00
Unavailable
56
RELAY 1
8MS-H2185-00-00
Unavailable
57
GASKET, HOLE COVER
8JP-H1365-00-00
Unavailable
58
SWITCH ASSY
8NT-H1860-00-00
Unavailable
58
SWITCH ASSY
8NT-H1860-10-00
Unavailable
58
SWITCH ASSY
8NT-H1860-30-00
Unavailable
58
SWITCH ASSY
8NT-H1860-40-00
Unavailable
59
DAMPER
8NT-H4527-00-00
Unavailable
60
WIRE, LEAD
8NX-H2507-00-00
Unavailable
