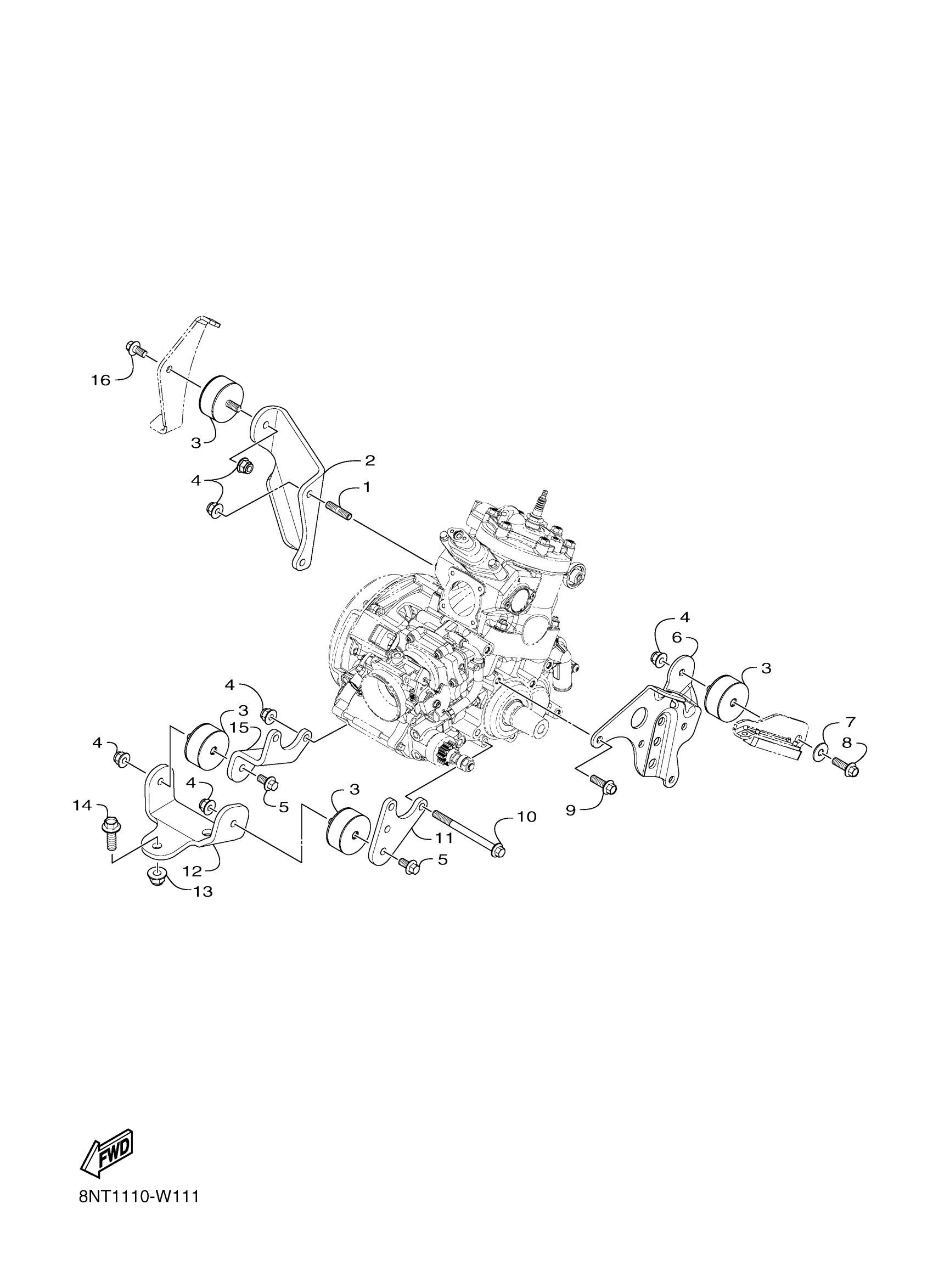

Yamaha SXV4NMPL (SXVENOM MOUNTAIN) 8NW5 2023 ENGINE BRACKET Diagram

BOLT, STUD

8NT-RA124-00-00

$11.49

BRACKET, REAR UPPE

8NT-F1426-00-00

$47.99

DAMPER, RUBBER 1

8NP-F1485-00-00

$29.99

NUT,HEX FLG-NYL LOCK M8X1.25

8JM-RA301-00-00

$1.06

BOLT, FLANGE

8NT-RA127-00-00

Unavailable

BRACKET, REAR UPPE

8NT-F1425-00-00

$41.99

WASHER

8ND-RA429-00-00

Unavailable

BOLT, HEXAGON

8NT-RA105-00-00

$1.81

BOLT, FLG. M8X1.25

8JP-RA186-00-00

$0.54

BOLT, FLANGE

8NT-RA188-00-00

$3.02

BRACKET, FRONT LOW

8NT-F1417-00-00

$18.99

PLATE, ENGINE MOUN

8NT-F145B-00-00

$34.99

NUT, FLG. LOCKING

8JP-RA360-00-00

$1.16

BOLT, FLG. M10X1.2

8JP-RA197-00-00

$2.34

BRACKET, FRONT LOW

8NT-F1418-00-00

$25.99

BOLT, FLANGE

8NT-RA116-00-00

Unavailable
