Description

Price

1

CHAIN CASE ASSY.

8ND-G754A-00-00

Unavailable

2

SEAL, OIL 50X65X8

8JP-RAE03-00-00

$35.99

3

BEARING, 6009

8JP-RAG05-00-00

$16.99

4

CIRCLIP, EH-75

8JP-RAH05-00-00

$4.35

5

. BREATHER

8JP-G7586-00-00

Unavailable

6

SEAL, OIL 35X47X7

8JP-RAE01-00-00

Unavailable

7

BEARING, 2206K

8JP-RAG04-10-00

$36.99

8

CIRCLIP, 1

8ND-RAH03-00-00

$4.19

9

CIRCLIP, 5

8JP-RAH11-00-00

$1.43

10

SPROCKET, CHAIN DR

8ND-E7682-90-00

$37.99

11

SPROCKET, CHAIN DRIVEN, 50T

8JP-G7587-00-00

Unavailable

12

CHAIN, BWA 13

8JP-RAM01-10-00

Unavailable

13

CIRCLIP, 4

8JP-RAC03-00-00

$3.18

14

CHAIN TENSIONER AS

8ND-G7610-00-00

Unavailable

15

SPRING, 1

8JP-RAD12-00-00

$1.64

16

TENSIONER

8ND-G7611-00-00

Unavailable

17

NUT,FLG. M6-1.0

8JM-RA322-00-00

Unavailable

18

SCREW, M6X1.0X30

8JP-RA266-00-00

Unavailable

19

SCREW, TAPPING M6X

8JP-RA283-00-00

Unavailable

20

HOUSING CAP ASSY.

8NV-G754B-00-00

Unavailable

21

RING,HOUSING

8JP-G7558-02-00

Unavailable

22

PLUG

8NV-G7339-00-00

Unavailable

23

SENSOR, SPEED

8JP-H5985-00-00

Unavailable

24

SCREW

8KG-RA229-00-00

Unavailable

25

PLUG

8NV-G7575-00-00

Unavailable

26

O-RING, 2

8JP-RAF04-00-00

Unavailable

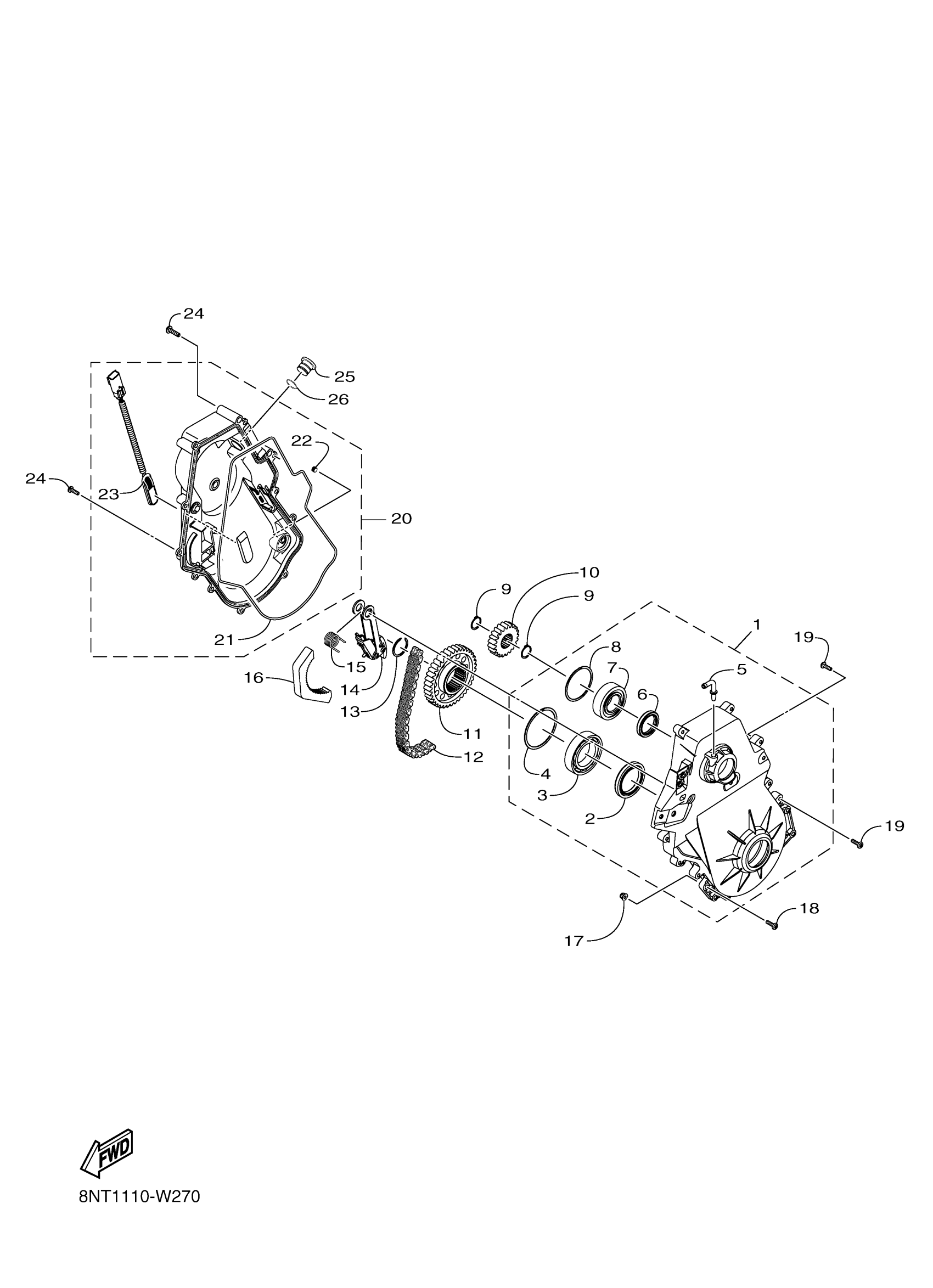

Yamaha SXV4NMNS (SXVENOM MOUNTAIN) 8NW3 2022 TRACK DRIVE 2 Diagram

CHAIN CASE ASSY.

SEAL, OIL 50X65X8

BEARING, 6009

CIRCLIP, EH-75

. BREATHER

SEAL, OIL 35X47X7

BEARING, 2206K

CIRCLIP, 1

CIRCLIP, 5

SPROCKET, CHAIN DR

SPROCKET, CHAIN DRIVEN, 50T

CHAIN, BWA 13

CIRCLIP, 4

CHAIN TENSIONER AS

SPRING, 1

TENSIONER

NUT,FLG. M6-1.0

SCREW, M6X1.0X30

SCREW, TAPPING M6X

HOUSING CAP ASSY.

RING,HOUSING

PLUG

SENSOR, SPEED

SCREW

PLUG

O-RING, 2
