- SXV4NMNS (SXVENOM MOUNTAIN) 8NW3 2022
STEERING GATE

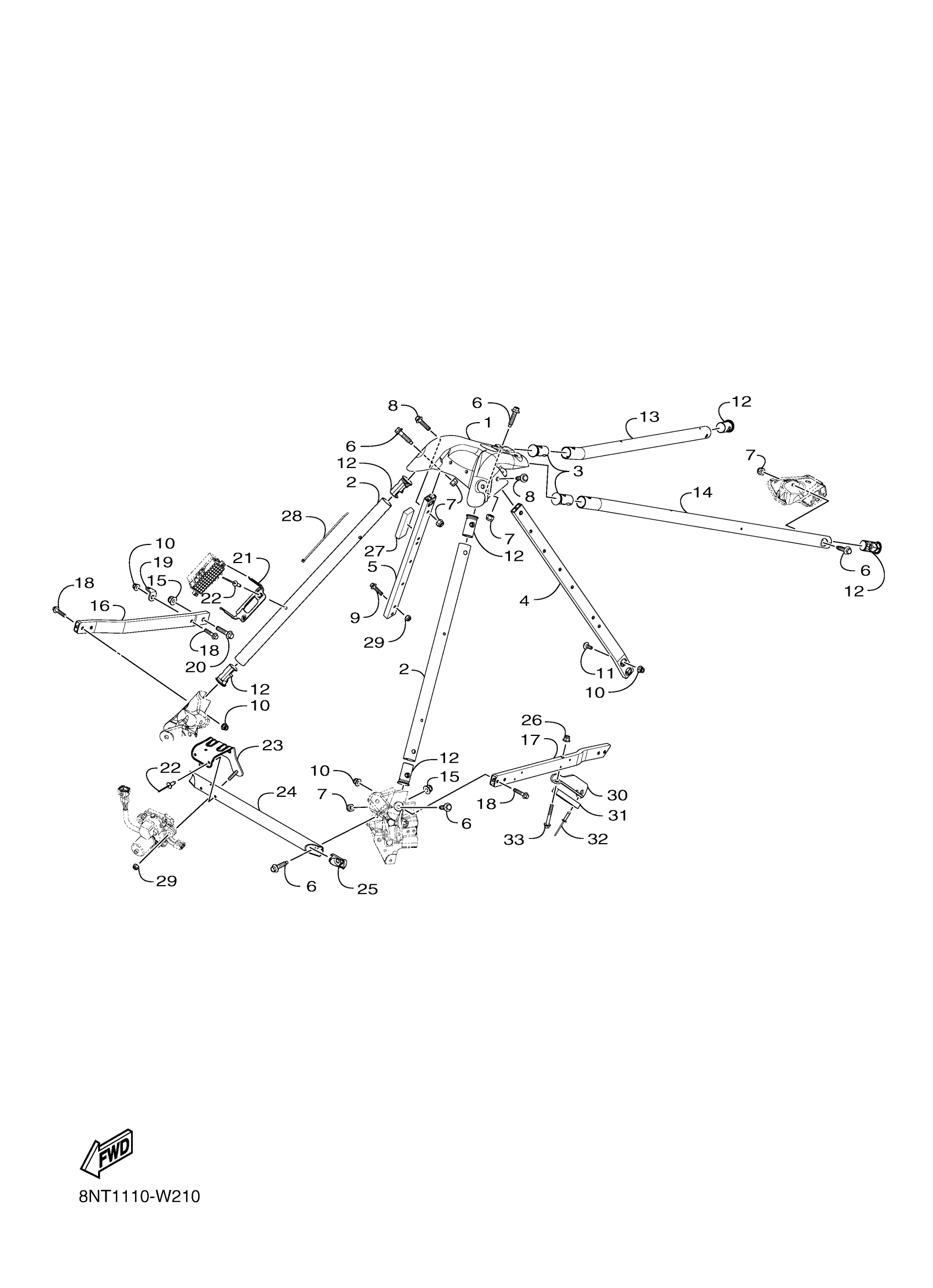

Yamaha SXV4NMNS (SXVENOM MOUNTAIN) 8NW3 2022 STEERING GATE Diagram
#
1
GATE, STEERING
8NT-F3871-00-00
$318.99
2
PIPE, CROSS
8NT-F2162-00-00
$21.99
3
CAP, MAIN PIPE
8JP-F111A-10-00
$3.98
4
MEMBER, SIDE 1
8NT-F111J-00-00
$37.99
5
MEMBER, SIDE 2
8NT-F111K-00-00
$74.99
6
BOLT, FLANGE
8NS-RA104-00-00
$2.28
7
NUT, HEX. LOCKING
8JP-RA372-00-00
$0.54
8
BOLT, FLG. M8X1.25
8JP-RA185-00-00
$0.96
9
BOLT, FLG. M6X1.0X
8JP-RA182-00-00
$0.75
10
NUT,FLG. M6-1.0
8JM-RA322-00-00
$1.07
11
SCREW, M6X1.0X16
8JP-RA256-00-00
Unavailable
12
CAP, MAIN PIPE
8JP-F111A-20-00
$5.49
13
PIPE, CROSS, 7
8NT-F119E-00-00
$86.99
14
PIPE CROSS 8
8NT-F119F-00-00
$61.99
15
NUT,HEX FLG-NYL LOCK M8X1.25
8JM-RA301-00-00
$1.06
16
SUPPORT 2
8NT-F2568-00-00
Unavailable
17
SUPPORT 1
8NT-F2567-00-00
Unavailable
18
BOLT, FLG. M6X1.0X
8JP-RA183-00-00
Unavailable
19
BRACKET
8ML-E4744-00-00
Unavailable
20
BOLT, FLANGE
8NT-RA177-00-00
Unavailable
21
BRACKET 1
8JP-E244E-00-00
Unavailable
22
RIVET, 9
8JP-RA518-00-00
Unavailable
23
BRACKET 1
8NV-F3881-00-00
Unavailable
24
SUPPORT, MEMBER
8NT-F2527-00-00
Unavailable
25
INSERT
8JP-F3775-00-00
Unavailable
26
NUT,SELF-LOCKING M8-1.25
8KG-RA301-00-00
Unavailable
27
DAMPER 1
8JP-E4425-00-00
Unavailable
28
TIE, CABLE-8.5/7.5/7.4
8JM-RAB01-00-00
Unavailable
29
NUT, LOCK 1
8JP-RA379-00-00
Unavailable
30
BRACKET 1
8NT-F148U-00-00
Unavailable
31
DAMPER, RUBBER 1
8NT-F1485-00-00
Unavailable
32
RIVET, 8
8NT-RA517-00-00
Unavailable
33
BOLT,FLG. M8X1.25X45
8KG-RA190-00-00
Unavailable
