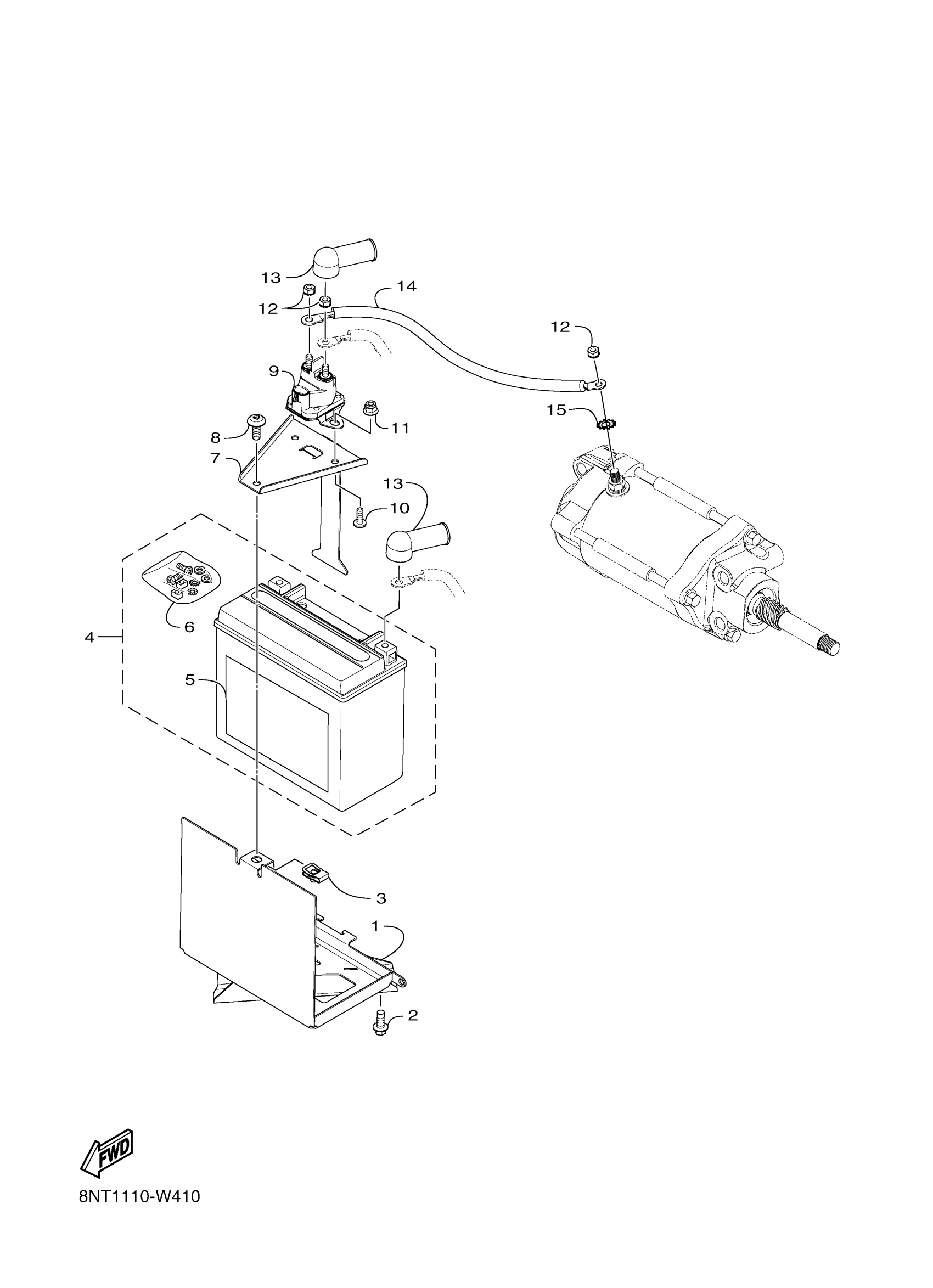

Yamaha SXV4NMML (SXVENOM MOUNTAIN) 8NW1 2021 ELECTRICAL 2 Diagram

SEAT, BATTERY

8NT-H2122-00-00

$52.45

BOLT, FLANGE

8NT-RA1A0-00-00

$4.88

NUT, CLIP M6

8JP-RA354-00-00

$1.30

YTX20HBS YUASA BATTERY - SA

YTX-20HBS-00-00

$167.68

. LABEL, BATTERY

8JP-H2141-00-00

Unavailable

. REPAIR PARTS KIT

8JP-F819G-00-00

Unavailable

BRACKET, BATTERY 2

8NT-H2158-00-00

Unavailable

SCREW, M6X1.0X20

8JP-RA260-00-00

$0.48

STARTER RELAY ASSY

8MT-H1940-00-00

$31.80

SCREW

8KC-RA229-00-00

$0.76

NUT,FLG. M6-1.0

8JM-RA322-00-00

$1.06

NUT, WITH WASHER M

8JP-RA375-00-00

$0.36

COVER, TERMINAL

8NT-H1916-00-00

$2.65

CABLE 2

8NT-H8147-00-00

$34.92

WASHER,LOCK-1/4 EXT TOOTH TYP

8JM-RA407-00-00

$0.23
