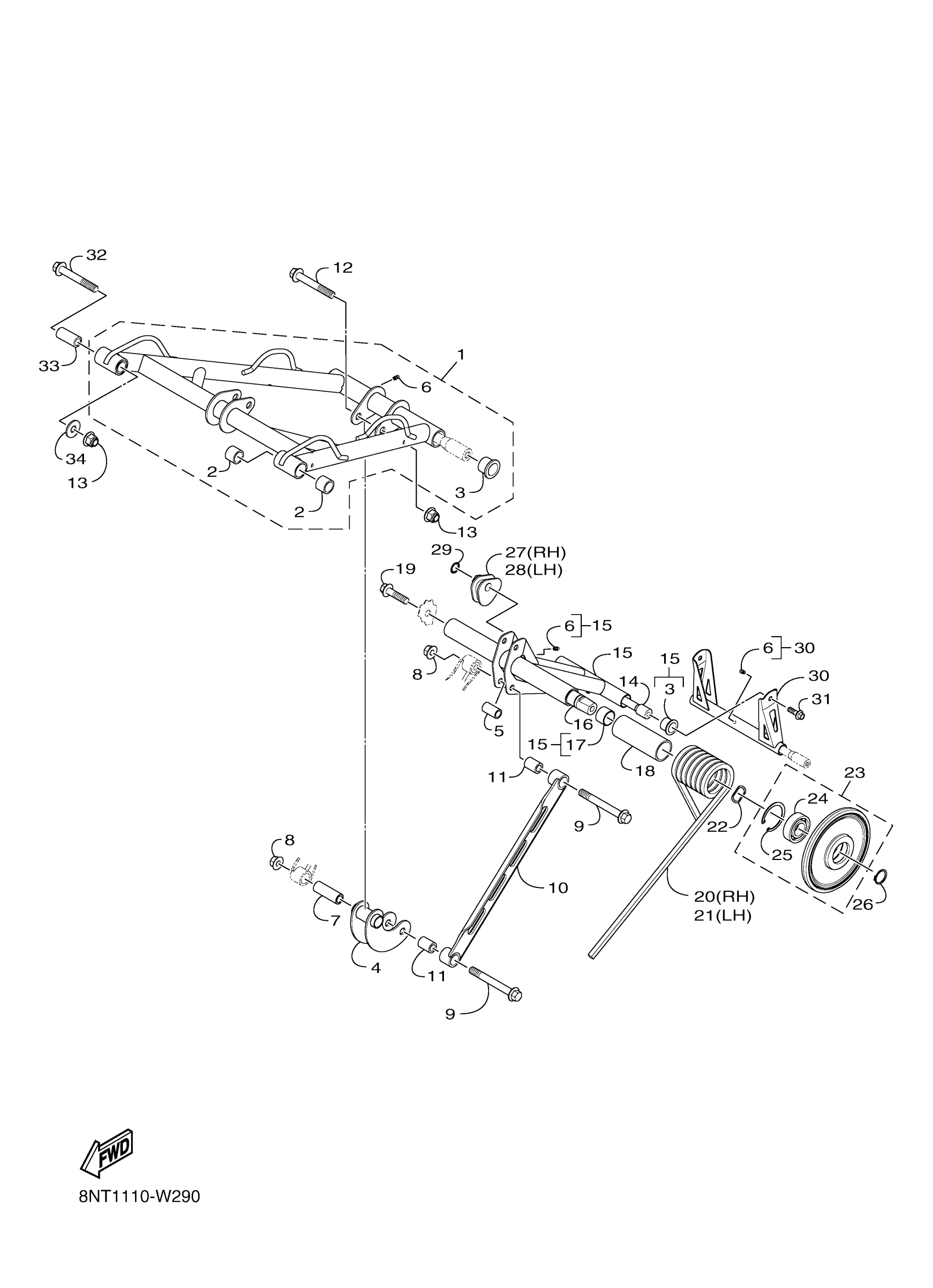

Yamaha SXV4NML (SXVENOM) 8NT1 2021 TRACK SUSPENSION 2 Diagram

#

Description
Price

1

ARM, PIVOT 1

8NT-G7331-00-00

Unavailable

2

BUSH, 5

8JP-RA814-00-00

$4.46

3

BUSH, 0.751

8JP-RA812-00-00

$4.35

4

BRACKET, ARM PIVOT

8NT-G7349-00-00

$73.99

5

COLLAR, 12

8JP-RA724-00-00

$5.60

6

NIPPLE, GREASE 1

8JP-RAL01-00-00

$2.44

7

SHAFT 1

8NT-G7465-00-00

$5.60

8

NUT, SELF-LOCKING

8NT-RA378-00-00

$1.11

9

BOLT, FLANGE

8NT-RA1B4-00-00

$16.99

10

ROD, RELAY

8NT-G7494-00-00

$75.99

11

COLLAR, 19

8JP-RA735-00-00

$2.75

12

BOLT, FLANGE

8NT-RA108-00-00

$3.40

13

NUT, FLG. LOCKING

8JP-RA360-00-00

$1.16

14

SHAFT 5

8JR-G7487-10-00

$40.99

15

ARM, PIVOT 2

8NT-G7332-00-00

$168.99

16

SHAFT 2

8JR-G7475-30-00

Unavailable

17

BUSH, 6

8JP-RA815-00-00

Unavailable

18

PROTECTOR

8NT-G7445-00-00

Unavailable

19

BOLT, FLG. M10X1.2

8JP-RA1A0-00-00

Unavailable

20

SPRING, REAR 2

8NT-G7474-00-00

Unavailable

21

SPRING, REAR 1

8NT-G7473-00-00

Unavailable

22

WASHER, 25X36X1

8JP-RA446-00-00

Unavailable

23

WHEEL,SUSPENSION 2

8JR-G7312-00-00

Unavailable

24

BEARING, 3

8JP-RAG08-00-00

Unavailable

25

CIRCLIP, 4

8JP-RAH10-00-00

Unavailable

26

CIRCLIP, 5

8JP-RAH11-00-00

Unavailable

27

BLOCK, SPRING-ADJUSTER-RH

8JM-G7448-00-00

Unavailable

28

BLOCK, SPRING-ADJUSTER-LH

8JM-G7447-00-00

Unavailable

29

RING,RETAINING-ADJ BLOCK 9/16

8JM-RA315-00-00

Unavailable

30

BRACKET 3

8JR-G7417-10-00

Unavailable

31

BOLT, FLG. M8X1.25

8JP-RA186-00-00

Unavailable

32

SCREW, 7

8JP-RA296-00-00

Unavailable

33

COLLAR, 16

8JP-RA733-00-00

Unavailable

34

WASHER, PLAIN

8JP-RA462-00-00

Unavailable
