- SXV4NML (SXVENOM) 8NT1 2021
TRACK DRIVE 2

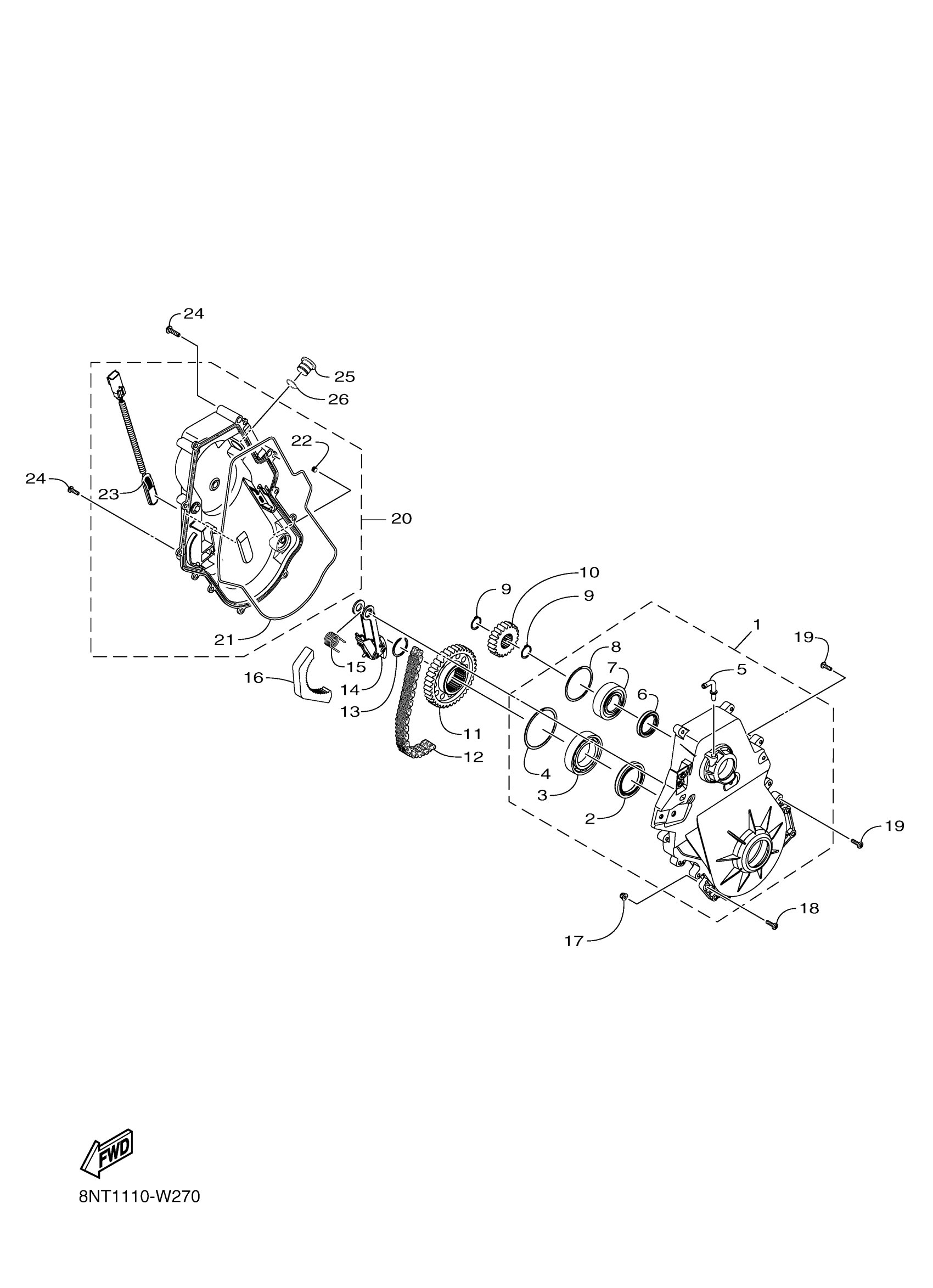

Yamaha SXV4NML (SXVENOM) 8NT1 2021 TRACK DRIVE 2 Diagram
#
Description
Price
1
CHAIN CASE ASSY.
8ND-G754A-00-00
Unavailable
2
SEAL, OIL 50X65X8
8JP-RAE03-00-00
$35.99
3
BEARING, 6009
8JP-RAG05-00-00
$16.99
4
CIRCLIP, EH-75
8JP-RAH05-00-00
$4.35
5
. BREATHER
8JP-G7586-00-00
Unavailable
6
SEAL, OIL 35X47X7
8JP-RAE01-00-00
Unavailable
7
BEARING, 2206K
8JP-RAG04-10-00
$36.99
8
CIRCLIP, 1
8ND-RAH03-00-00
$4.19
9
CIRCLIP, 5
8JP-RAH11-00-00
$1.43
10
SPROCKET, CHAIN DR
8ND-E7682-90-00
$37.99
11
SPROCKET, CHAIN DRIVEN, 50T
8JP-G7587-00-00
Unavailable
12
CHAIN, BWA 13
8JP-RAM01-10-00
Unavailable
13
CIRCLIP, 4
8JP-RAC03-00-00
$3.18
14
CHAIN TENSIONER AS
8ND-G7610-00-00
Unavailable
15
SPRING, 1
8JP-RAD12-00-00
$1.64
16
TENSIONER
8ND-G7611-00-00
Unavailable
17
NUT,FLG. M6-1.0
8JM-RA322-00-00
Unavailable
18
SCREW, M6X1.0X30
8JP-RA266-00-00
Unavailable
19
SCREW, TAPPING M6X
8JP-RA283-00-00
Unavailable
20
HOUSING CAP ASSY.
8NV-G754B-00-00
Unavailable
21
RING,HOUSING
8JP-G7558-02-00
Unavailable
22
PLUG
8NV-G7339-00-00
Unavailable
23
SENSOR, SPEED
8JP-H5985-00-00
Unavailable
24
SCREW
8KG-RA229-00-00
Unavailable
25
PLUG
8NV-G7575-00-00
Unavailable
26
O-RING, 2
8JP-RAF04-00-00
Unavailable
