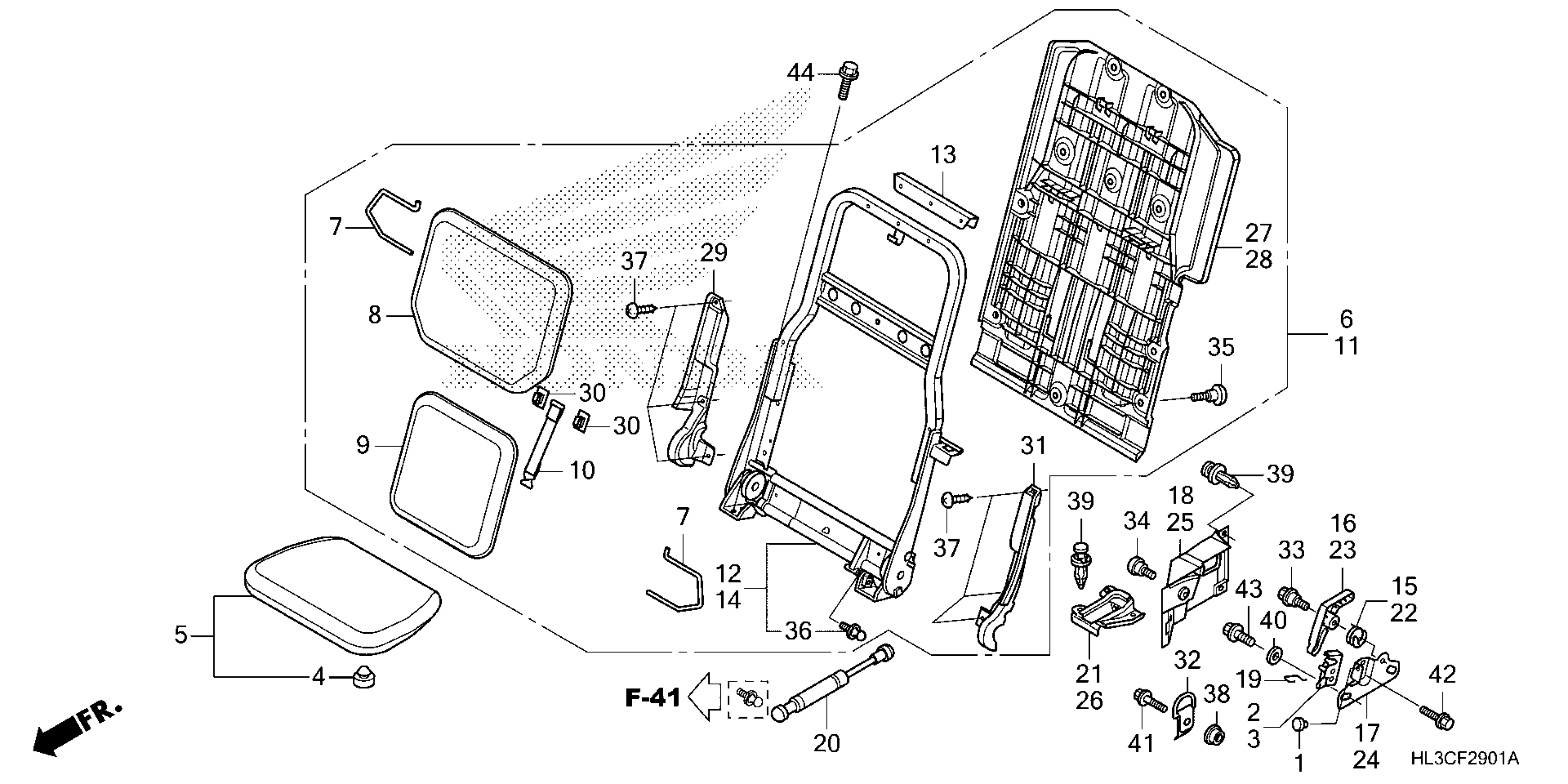

Honda SXS700M4DAC (22) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE02H-N4800001 REAR SEAT Diagram

#

Description
Price

1

RUBBER, STOPPER

47117-196-000

$2.55

2

LATCH, R. DOOR

67236-HL1-A01

$12.61

3

LATCH, L. DOOR

67237-HL1-A01

$12.76

4

RUBBER B, SEAT STOPPER

77215-GC2-000

$4.70

5

CUSHION ASSY., RR. SEAT

77500-HL3-601

$45.32

6

SEAT-BACK ASSY., R. RR.

77600-HL3-601

$371.64

7

WIRE (A)

77626-HL3-A01

$3.82

8

CUSHION ASSY. (UPPER)

77630-HL3-A01

$108.81

9

CUSHION ASSY. (LOWER)

77631-HL3-A01

$92.78

10

STRAP ASSY., HOOK

77632-HL3-A01

$14.33

11

SEAT-BACK ASSY., L. RR.

77650-HL3-601

$371.64

12

FRAME, R. RR. SEAT

77800-HL3-601

$150.78

13

GUARD, SEAT-BACK PIPE

77806-HL3-A01

$4.48

14

FRAME, L. RR. SEAT

77850-HL3-601

$150.78

15

SPRING, R. SEAT LATCH

77902-HL3-A00

$6.54

16

HANDLE, R. SEAT LATCH

77903-HL3-A00

$7.03

17

BRACKET, R. SEAT LATCH

77904-HL3-A00

$5.58

18

COVER, R. SEAT LATCH *NH1* (BLACK)

77905-HL3-A00ZA

$13.64

19

ROD, SEAT LATCH

77906-HL3-A00

$0.86

20

DAMPER, RR. SEAT

77908-HL3-A01

$26.26

21

RUBBER, R. RR. SEAT DAMPER

77909-HL3-A00

$3.00

22

SPRING, L. SEAT LATCH

77952-HL3-A00

$6.54

23

HANDLE, L. SEAT LATCH

77953-HL3-A00

$7.03

24

BRACKET, L. SEAT LATCH

77954-HL3-A00

$5.58

25

COVER, L. SEAT LATCH *NH1* (BLACK)

77955-HL3-A00ZA

$13.64

26

RUBBER, L. RR. SEAT DAMPER

77959-HL3-A00

$3.00

27

PLATE, R. FR. TOP BED

81510-HL3-A01

$56.68

28

PLATE, L. FR. TOP BED

81511-HL3-A01

$59.35

29

COVER, R. RR. SEAT SPRING

81512-HL3-A01

$5.84

30

CLIP, BED TOP

81514-HL3-A01

$1.71

31

COVER, L. RR. SEAT SPRING

81562-HL3-A01

$3.86

32

HOOK ASSY., TIE DOWN

84614-S06-000

$10.37

33

BOLT, FLANGE (6MM)

90101-HL3-A00

$1.78

34

SCREW, SPLASH GUARD

90103-HC4-770

$2.03

35

SCREW, SPECIAL (6MM)

90103-HF1-670

$5.66

36

STUD, BALL (UPPER)

90108-HL3-A01

$0.84

37

SCREW, TAPPING (5X10)

90134-SE3-003

$3.80

38

WASHER, RR. COWL SETTING

90511-MAT-000

$2.80

39

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$0.54

40

WASHER, PLAIN (8MM)

94103-08000

$0.59

41

BOLT, FLANGE (6X20)

95701-06020-07

$1.48

42

BOLT, FLANGE (6X20)

95701-06020-08

$0.35

43

BOLT, FLANGE (8X16)

95701-08016-08

$1.59

44

BOLT, FLANGE (8X20)

95701-08020-08

$1.43
