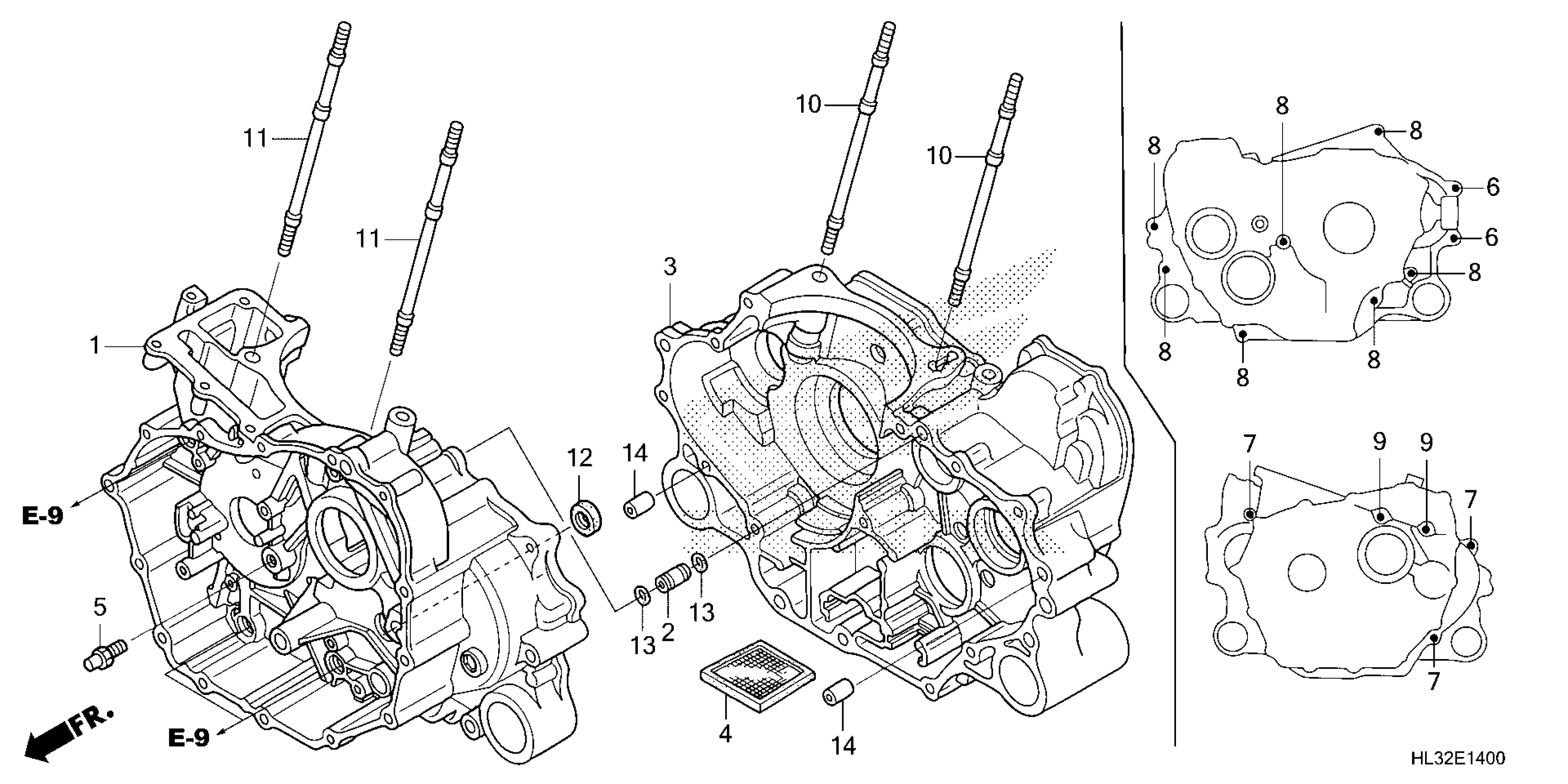

Honda SXS700M4DA (23) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE027-P4800001 TO 1HFVE027-P4899999 CRANKCASE Diagram

CRANKCASE, FR.

11100-HN8-030

$604.05

PIN, OIL GUIDE (8MM)

11145-HN8-010

$9.00

CRANKCASE, RR.

11200-HN8-020

$567.77

SCREEN, OIL FILTER

15421-HR3-A40

$11.99

PIN, STATOR STOPPER

26326-HN8-000

$4.84

BOLT, FLANGE (6X35) (NSHF)

90004-GHB-700

$4.07

BOLT, FLANGE (6X40) (NSHF)

90004-GHB-710

$4.07

BOLT, FLANGE (6X55) (NSHF)

90004-GHB-740

$5.36

BOLT, FLANGE (6X80) (NSHF)

90004-GHB-790

$5.54

BOLT, STUD (10X265)

90032-HN8-000

$12.74

BOLT B, STUD (10X265)

90033-HN8-000

$13.04

OIL SEAL (9X18X7) (ARAI)

91201-HN8-003

$2.92

O-RING (5X1.7) (ARAI)

91305-MG7-003

$2.92

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25
