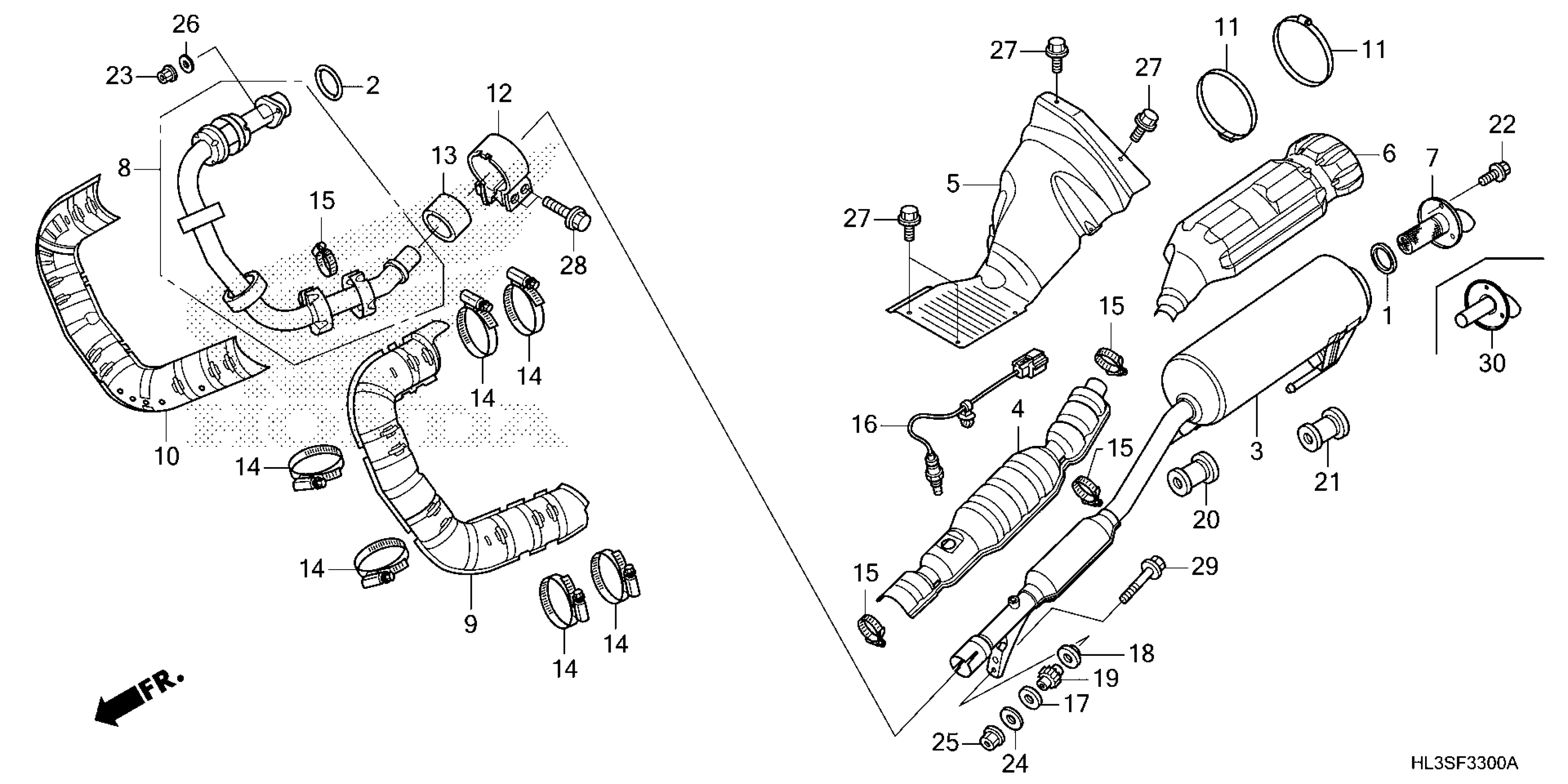

Honda SXS700M4AC (26) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE020-T4100001 TO 1HFVE020-T4199999 EXHAUST MUFFLER Diagram

#

Description
Price

1

GASKET, EX. PIPE

18291-KAE-870

Unavailable

2

GASKET, EX. PIPE

18291-MW3-670

Unavailable

3

MUFFLER COMP

18310-HL3-DU0

Unavailable

4

COVER, FR. MUFFLER

18311-HL3-A40

Unavailable

5

COVER, MUFFLER CENTER

18312-HL3-A00

Unavailable

6

COVER, RR. MUFFLER

18313-HL3-A40

Unavailable

8

PIPE, EX.

18320-HL3-A40

Unavailable

9

COVER, FR. EX. PIPE

18321-HL3-A40

Unavailable

10

COVER, FR. EX. PIPE (LOWER)

18324-HL3-A40

Unavailable

11

CLAMP, WATER HOSE (102-152MM)

18326-HW5-900

Unavailable

12

BAND, FR. EX. PIPE

18373-MR5-000

Unavailable

13

GASKET, MUFFLER

18392-MBH-000

Unavailable

14

CLAMP, WATER HOSE (65-89MM)

19087-HL3-A00

Unavailable

15

CLAMP, R. RADIATOR HOSE

19509-MM5-003

$12.46

16

SENSOR, OXYGEN

36531-HL3-MK1

Unavailable

17

RUBBER, MUFFLER MOUNTING

50303-HL3-A00

Unavailable

18

RUBBER, MUFFLER

50305-HL3-A00

Unavailable

19

RUBBER, ENGINE HEAD MOUNTING

50305-HN8-003

$10.63

20

RUBBER, MUFFLER MOUNTING

50608-HM7-000

$4.60

21

RUBBER, MUFFLER MOUNTING

50608-HR0-F00

Unavailable

22

BOLT, FLANGE (6X10) This part replaces 90101-KCE-000.

96001-06010-07

$1.50

22

BOLT, FLANGE (6X10)

96001-06010-07

$1.50

23

NUT, FLANGE (8MM)

90301-HM8-000

$2.50

24

WASHER, PLAIN (10MM)

90502-HL3-A00

Unavailable

25

NUT, FLANGE (10MM)

94050-10080

$3.00

26

WASHER, PLAIN (8MM)

94101-08800

$1.74

27

BOLT, FLANGE (6X12)

95701-06012-08

$1.50

28

BOLT, FLANGE (8X35)

95701-08035-08

$1.29

29

BOLT, FLANGE (10X65)

95801-10065-08

$3.07

30

FINISHER COMP, EX.

18317-HL3-DU0

Unavailable
