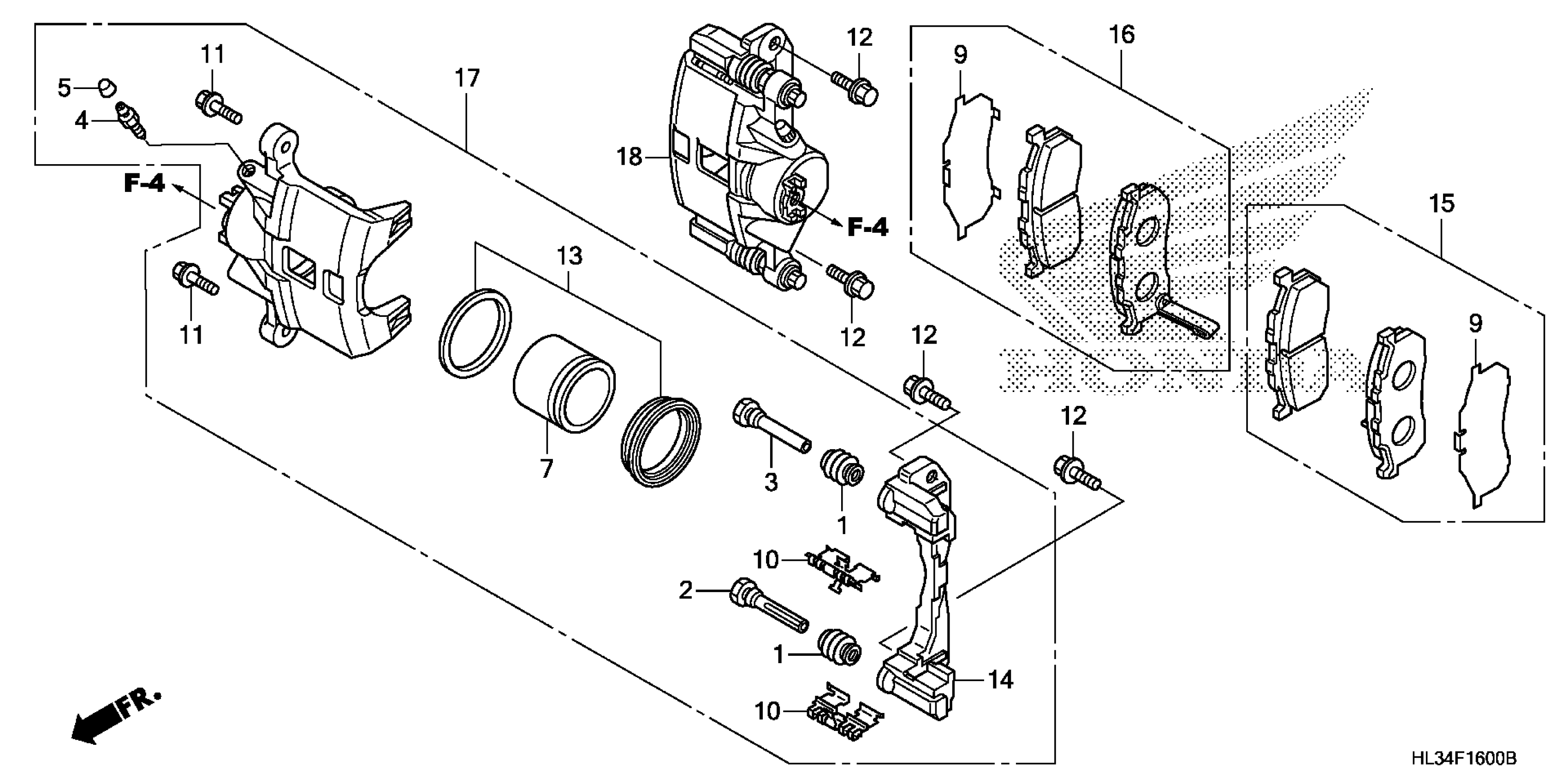

Honda SXS700M4AC (14) PIONEER 700-4, USA, VIN# 1HFVE020-E4000001 TO 1HFVE020-E4099999 FRONT BRAKE CALIPER Diagram

COVER, DUST

43234-S04-003

$5.62

PIN A

43235-S84-A51

$9.71

PIN B

43262-S84-A51

$6.23

SCREW, BLEEDER

43352-SM4-951

$8.95

CAP, BLEEDER SCREW

43353-SD5-003

$6.38

PISTON

45216-S5A-003

$54.97

SHIM, BRAKE PAD

45228-SF4-023

$7.46

RETAINER

45237-S2K-003

$5.51

BOLT, FLANGE (8X22)

45240-SC2-003

$7.78

BOLT, CALIPER MOUNT

90108-HL1-A00

$2.11

SEAL SET, PISTON

06450-HL1-A01

$9.39

BRACKET, CALIPER

45220-S2K-013

$82.72

PAD SET, L. FR.

06451-HL3-A00

$65.90

PAD SET, R. FR.

06452-HL3-A00

$65.90

CALIPER SUB-ASSY., R. FR. (PART APPLIES TO LEFT SIDE FR SXS500)

45018-S3A-013

$369.25

CALIPER SUB-ASSY., L. FR. (PART APPLIES TO RIGHT SIDE FR SXS500)

45019-S3A-013

$369.25
