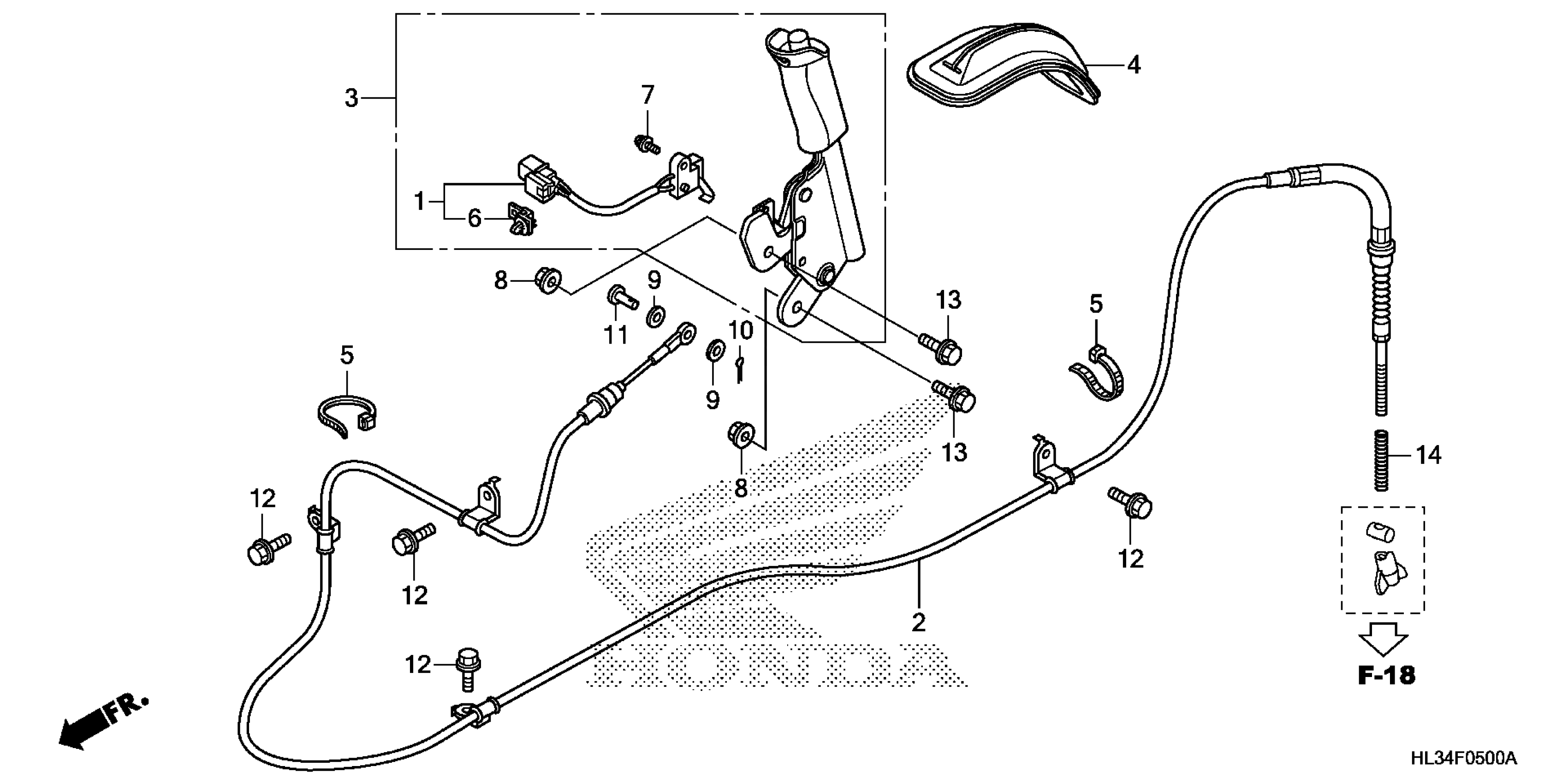

Honda SXS700M42AC (16) PIONEER 700-4, USA, VIN# 1HFVE026-G4200001 PARKING BRAKE Diagram

#

Description

Price

1

SWITCH ASSY., PARKING

35370-HL3-A00

$34.84

2

CABLE ASSY., PARKING BRAKE

45460-HL3-A01

$64.74

3

LEVER ASSY., HAND BRAKE

47105-HL3-A00

$116.34

4

RUBBER, HAND BRAKE

47160-HL3-A00

$11.41

5

BAND, WIRE HARNESS

90651-MA6-720

$3.73

6

CLIP, CONNECTOR

91565-S3Y-003

$6.90

7

SCREW-WASHER (3X10)

93892-03010-08

$0.67

8

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$1.49

9

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

$1.49

10

PIN, COTTER (2.0X12)

94201-20120

$1.49

11

PIN, JOINT (C)

95015-53000

$3.06

12

BOLT, FLANGE (8X16)

95701-08016-00

$1.80

13

BOLT, FLANGE (8X18)

95701-08018-08

$1.58

14

SPRING, PARKING CABLE

45461-HL3-A40

$1.95
