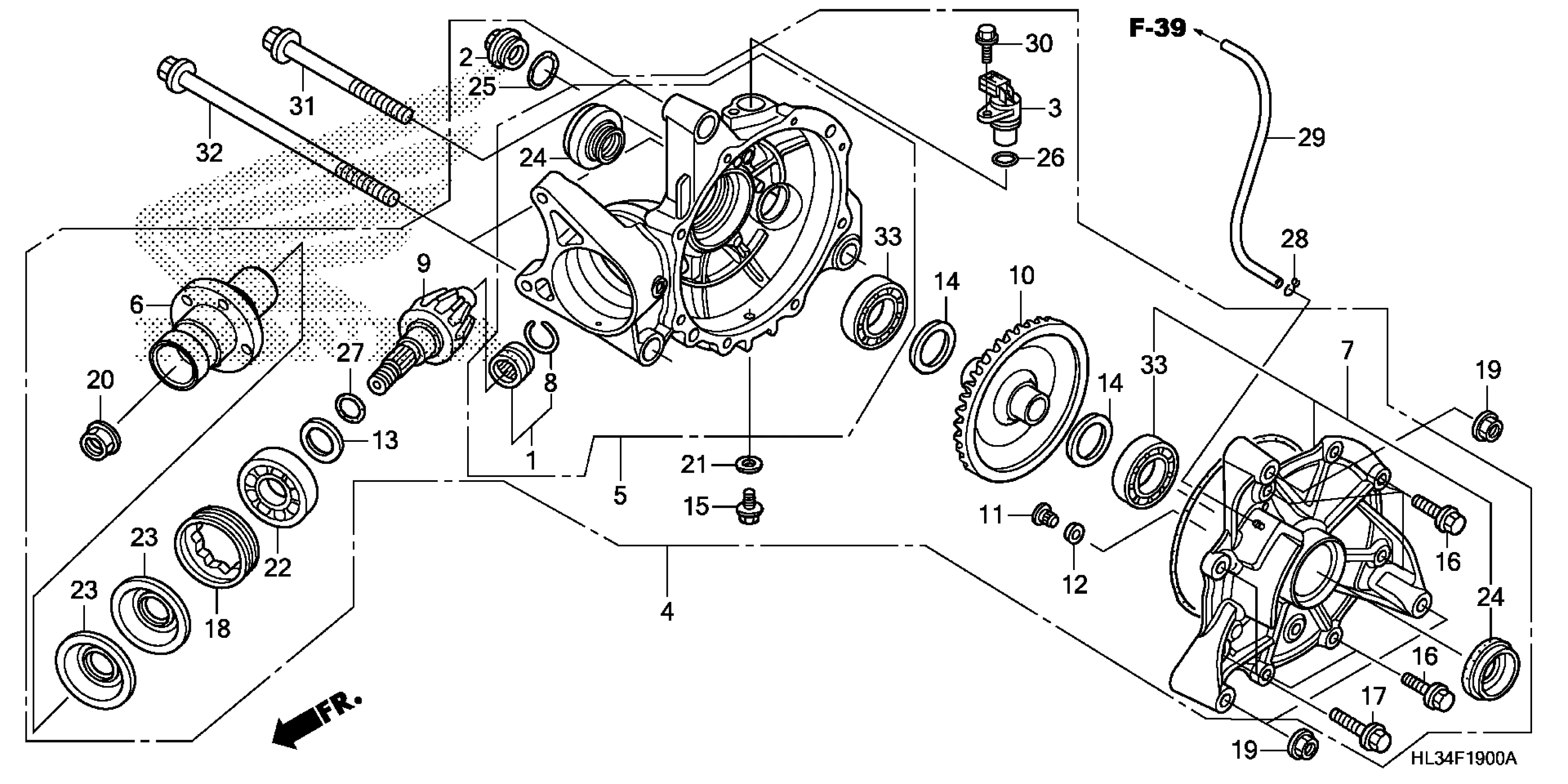

Honda SXS700M42AC (16) PIONEER 700-4, USA, VIN# 1HFVE026-G4200001 FINAL DRIVEN GEAR Diagram

#

Description
Price

1

BEARING SET, NEEDLE

06910-HP0-A00

$30.62

2

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

2

CAP, VALVE ADJ.

12361-300-000

Unavailable

2

CAP, VALVE ADJ. This part replaces 12361-371-980.

12361-300-000

Unavailable

3

SENSOR ASSY., SPEED (TDK-EPC) This part replaces 37700-HP5-601.

37700-KZR-601

$45.37

3

SENSOR ASSY., SPEED (TDK-EPC)

37700-KZR-601

$45.37

4

GEAR ASSY., RR. FINAL

41300-HL3-A00

$655.95

5

CASE SUB-ASSY., RR. FINAL GEAR

41311-HL3-A00

$216.48

6

JOINT, RR. PINION

41315-HL3-A00

$78.73

7

COVER SUB-ASSY., RR. FINAL GEAR

41331-HL3-A00

$260.72

8

RING, STOPPER

41405-HA7-670

$2.97

9

GEAR, RR. PINION (13T)

41421-HL3-A00

$240.64

10

GEAR, RR. RING (45T)

41431-HL3-A00

$532.82

11

PIN, RING GEAR STOPPER

41436-MB0-310

$31.90

12

SHIM A, STOPPER PIN (0.10)

41437-MB0-310

$5.45

12

SHIM B, STOPPER PIN (0.15)

41438-MB0-310

$5.14

13

SHIM A, PINION GEAR (1.32)

41450-MG9-000

$7.18

13

SHIM B, PINION GEAR (1.38)

41451-MG9-000

$7.18

13

SHIM C, PINION GEAR (1.44)

41452-MG9-000

$7.18

13

SHIM D, PINION GEAR (1.50)

41453-MG9-000

$7.18

13

SHIM E, PINION GEAR (1.56)

41454-MG9-000

$7.18

13

SHIM F, PINION GEAR (1.62)

41455-MG9-000

$7.18

13

SHIM G, PINION GEAR (1.68)

41456-MG9-000

$7.18

14

SPACER A, RING GEAR (1.82)

41540-HA0-000

$11.84

14

SPACER B, RING GEAR (1.88)

41541-HA0-000

$12.56

14

SPACER C, RING GEAR (1.94)

41542-HA0-000

$12.56

14

SPACER D, RING GEAR (2.00)

41543-HA0-000

$11.84

14

SPACER E, RING GEAR (2.06)

41544-HA0-000

$12.56

14

SPACER F, RING GEAR (2.12)

41545-HA0-000

$11.84

14

SPACER G, RING GEAR (2.18)

41546-HA0-000

$11.84

14

SPACER H, RING GEAR (2.24)

41547-HA0-000

$11.84

14

SPACER I, RING GEAR (2.30)

41548-HA0-000

$11.84

15

BOLT, SEALING (8MM)

90109-371-000

$2.58

16

BOLT, FLANGE (8X27)

90133-HP5-600

$2.67

17

BOLT, FLANGE (10X35)

90134-HP5-600

$3.51

18

NUT, LOCK (72MM)

90242-HL1-A00

$20.76

19

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.99

20

NUT, HEX. (16MM)

90381-MT3-000

$7.95

21

WASHER (8MM)

90471-580-000

$2.92

22

BEARING, RADIAL BALL (63/28)

91051-HL3-A01

$78.28

22

BEARING, RADIAL BALL (63/28)

91064-HL4-A01

$32.17

23

OIL SEAL (36X75X8)

91251-HL3-A01

$6.53

24

OIL SEAL (28X55X7)

91252-HL3-A01

$4.97

25

O-RING (30.8MM) (Honda Code 0001065)

91302-001-020

$3.75

26

O-RING (14.8X2.4) (ARAI)

91303-KF0-003

$1.69

27

O-RING (21.8X2.4) (Honda Code 3793031)

91355-759-003

$1.74

28

CLIP, TUBE (C6.5)

95002-35000

$1.49

29

BULK HOSE, VACUUM (3.5X1000) (3.5X860) (BULK HOSE: 95005-35001-30M)

95005-35001-30M

$8.63

30

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55

31

BOLT, FLANGE (10X95)

95801-10095-00

$4.41

32

BOLT, FLANGE (10X160)

95801-10160-00

$4.28

33

BEARING, RADIAL BALL (6007)

96100-60073-00

$25.05
