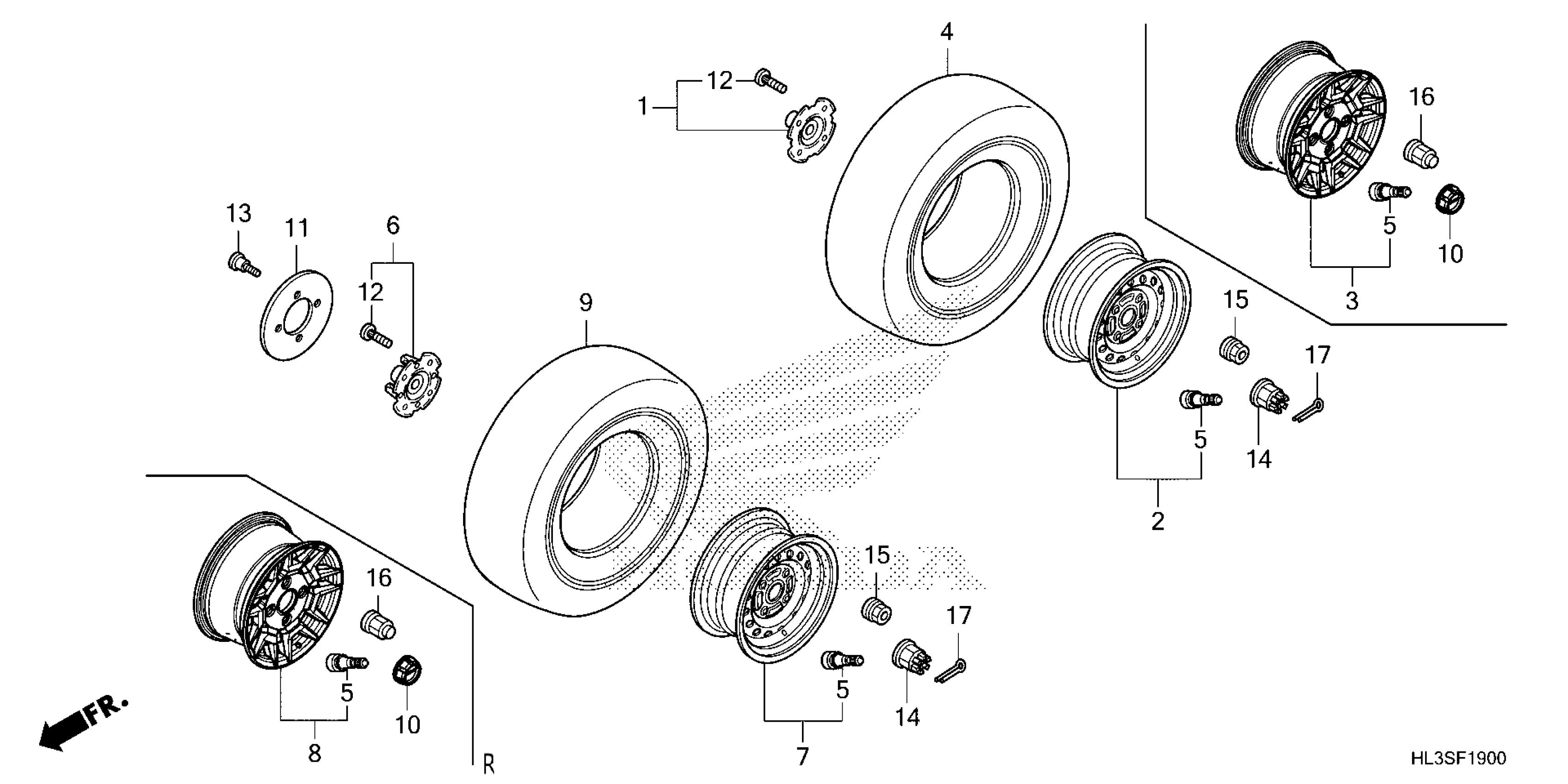

Honda SXS700M2DAC (26) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE02N-T4100001 TO 1HFVE02N-T4199999 WHEEL Diagram

HUB, RR. WHEEL

42610-HL3-A40

$87.41

WHEEL SUB-ASSY.

42650-HL3-DV0

Unavailable

TIRE (25X10.00-12NHS) (KENDA)

42711-HL3-DU1

Unavailable

VALVE, RIM (TR412)

42753-HL3-A00

$2.20

HUB SUB-ASSY., FR.

44615-HL3-A00

$73.63

WHEEL SUB-ASSY.

44650-HL3-DV0

Unavailable

TIRE (25X8.00-12NHS) (KENDA)

44711-HL3-DU1

Unavailable

CAP, WHEEL CENTER

44732-HL3-DV0

Unavailable

DISK, FR. BRAKE

45251-HL3-A00

$61.74

BOLT, WHEEL (ROCKNEL FASTENER) This part replaces 90113-SA0-006.

90113-SM1-005

$2.78

BOLT, WHEEL (ROCKNEL FASTENER)

90113-SM1-005

$2.78

BOLT, DISK (8X24)

90116-HP6-A00

$2.92

NUT, AXLE (20MM)

90304-HM7-A10

$12.05

NUT, WHEEL

90307-HL3-DV0

Unavailable

PIN, COTTER (4.0X30)

94201-40300

$1.49
