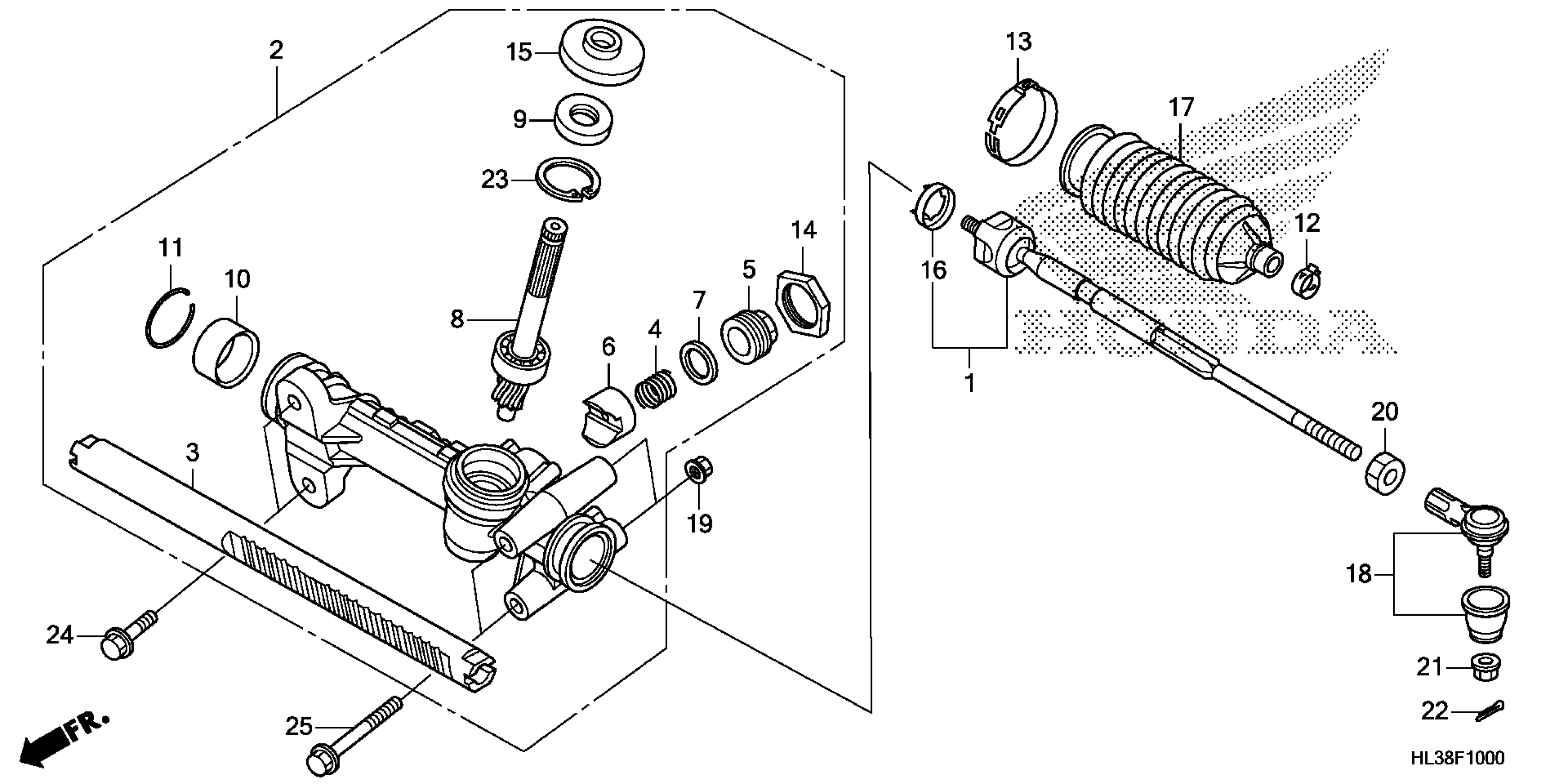

Honda SXS700M2DAC (19) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE02N-K4500001 TO 1HFVE02N-K4599999 STEERING GEAR BOX@TIE ROD Diagram

END SET, TIE ROD

53010-HL3-A01

$34.44

BOX, STEERING GEAR

53040-HL3-A01

$399.96

RACK, STEERING

53402-HL3-A00

$113.00

SPRING, RACK GUIDE PRESSURE

53413-SH3-003

$6.52

SCREW, RACK GUIDE

53414-679-013

$31.28

GUIDE, STEERING RACK

53416-HL3-A00

$12.57

WASHER, DISK

53418-SC2-003

$8.54

PINION, STEERING

53421-HL3-A01

$52.72

DUST SEAL, STEERING PINION (ARAI)

53426-671-003

$9.63

BUSH, RACK END

53430-HL3-A00

$9.21

RING, SNAP

53431-HL3-A00

$3.21

BAND A, BELLOWS

53448-HL3-A00

$2.92

BAND B, BELLOWS

53449-HL3-A00

$3.88

NUT, LOCK This part replaces 53458-SE0-003.

53458-S01-A51

Unavailable

NUT, LOCK

53458-S01-A51

Unavailable

COVER, PINION DUST

53502-S3A-J01

$6.90

WASHER, TIE ROD LOCK

53536-SR3-000

$5.72

BOOT A, TIE ROD

53537-HL3-A00

$12.84

END, TIE ROD

53540-S47-951

$87.53

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.99

NUT, HEX. (14MM)

94001-14280-0S

$2.00

NUT, FLANGE (12MM)

94050-12080

$1.86

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$1.49

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

PIN, COTTER (2.5MM)

94201-25300

$1.49

CIRCLIP (INNER) (35MM)

94520-35000

$1.84

BOLT, FLANGE (10X32)

95701-10032-00

$1.49

BOLT, FLANGE (10X105)

95701-10105-08

$4.59
