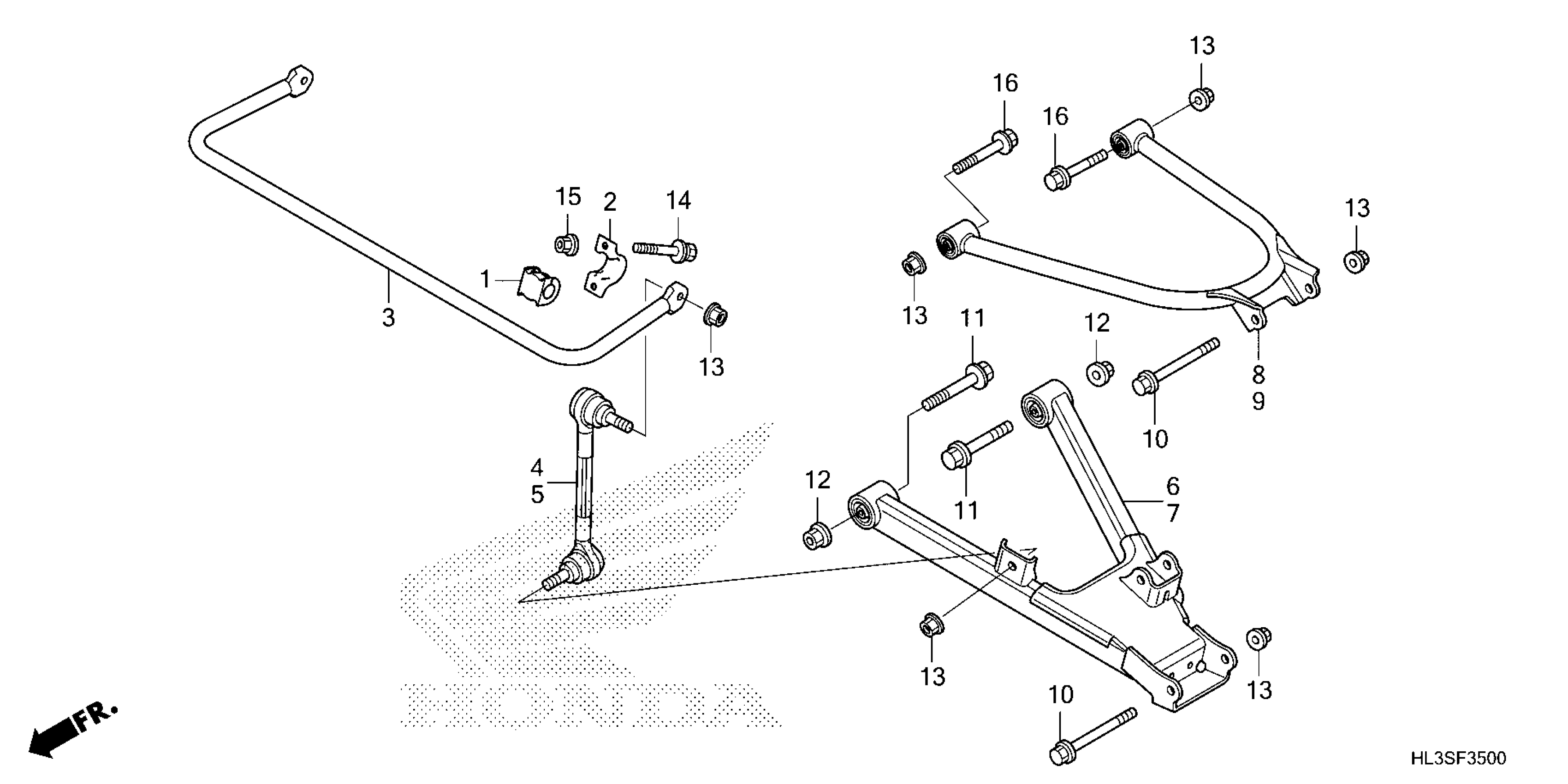

Honda SXS700M2DA (25) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE02E-S4000001 TO 1HFVE02E-S4099999 REAR ARM Diagram

BUSH, FR. STABILIZER HOLDER (FOR RR.)

51306-SCC-003

$7.32

BRACKET, FR. STABILIZER (FOR RR.)

51308-SAA-000

$14.09

SPRING, RR. STABILIZER (22MM)

52310-HL3-601

$34.88

LINK, R. RR. STABILIZER

52320-HL3-A01

$15.33

LINK, L. RR. STABILIZER

52321-HL3-A01

$15.33

ARM ASSY., R. RR. (LOWER)

52350-HL3-A00

$132.26

ARM ASSY., L. RR. (LOWER)

52360-HL3-A00

$132.26

ARM ASSY., R. RR. (UPPER)

52370-HL3-A00

$57.62

ARM ASSY., L. RR. (UPPER)

52380-HL3-A00

$57.62

BOLT, FLANGE (10X110)

90121-HL1-A00

$3.95

BOLT, FLANGE (12X70)

90122-HL1-A00

$3.95

NUT, SELF-LOCK (12MM) (CLINCH) (SATO RASHI)

90215-SB0-003

$2.03

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.80

BOLT-WASHER (8X50)

93402-08050-00

$0.19

NUT, FLANGE (8MM)

94050-08080

$0.86

BOLT, FLANGE (10X65)

95801-10065-08

$3.03
