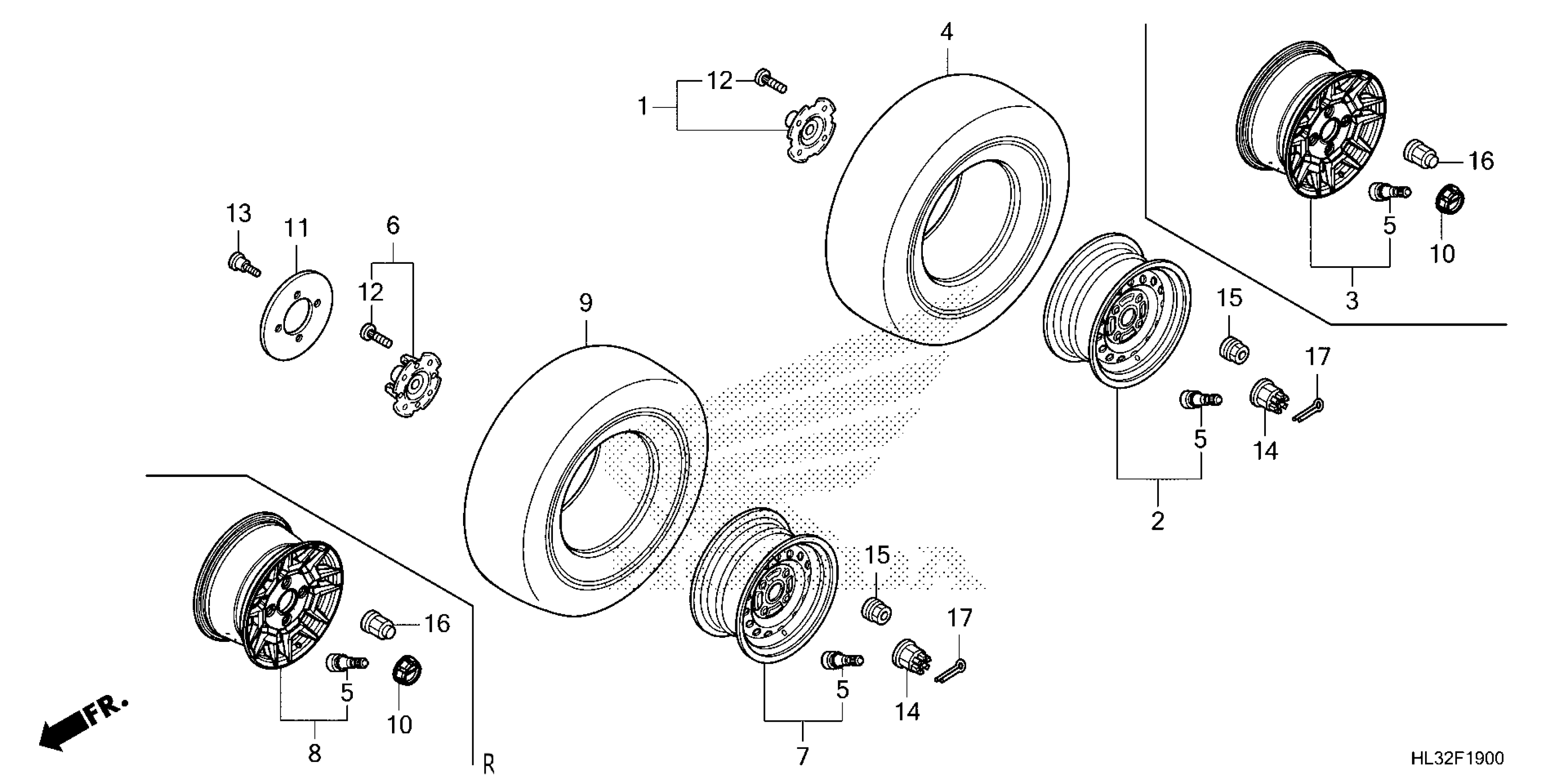

Honda SXS700M2DA (24) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE02E-R4900001 TO 1HFVE02E-R4999999 WHEEL Diagram

HUB, RR. WHEEL

42610-HL3-A40

$87.41

WHEEL SUB-ASSY.

42650-HL3-B50

$253.46

TIRE (25X10.00-12NHS) (OTR)

42711-HL3-B41

$157.41

VALVE, RIM (TR412)

42753-HL3-A00

$2.20

HUB SUB-ASSY., FR.

44615-HL3-A00

$73.63

WHEEL SUB-ASSY.

44650-HL3-B50

$241.18

TIRE (25X8.00-12NHS) (OTR)

44711-HL3-B41

$148.48

CAP, WHEEL CENTER

44732-HR6-A60

$7.56

DISK, FR. BRAKE

45251-HL3-A00

$61.74

BOLT, WHEEL (ROCKNEL FASTENER) This part replaces 90113-SA0-006.

90113-SM1-005

$2.78

BOLT, WHEEL (ROCKNEL FASTENER)

90113-SM1-005

$2.78

BOLT, DISK (8X24)

90116-HP6-A00

$2.92

NUT, AXLE (20MM)

90304-HM7-A10

$12.05

NUT, WHEEL

90307-MCA-000

$5.58

PIN, COTTER (4.0X30)

94201-40300

$1.49
