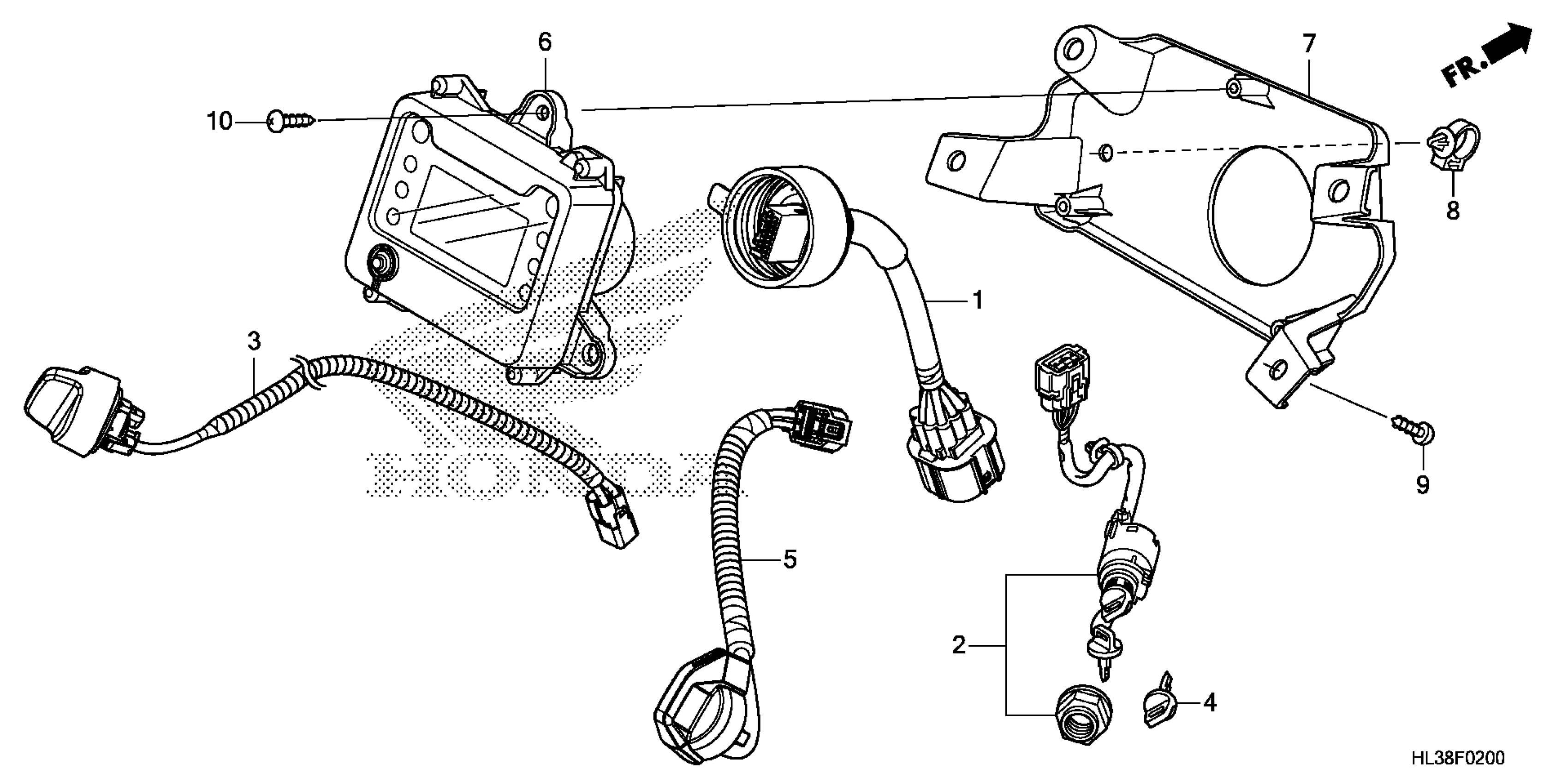

Honda SXS700M2DA (19) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE02E-K4500001 TO 1HFVE02E-K4599999 METER@SWITCH Diagram

#

Description

Price

1

SUB-HARNESS, METER

32105-HL3-600

$19.07

2

SWITCH ASSY., IGNITION

35100-HL3-A01

$81.04

3

SWITCH ASSY., HEADLIGHT

35120-HL3-601

$10.93

4

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional).

35121-HL1-A01

$7.38

4

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional).

35122-HL1-A01

$7.38

5

SWITCH ASSY., MODE SELECT

35300-HL3-611

$10.01

6

METER ASSY., COMBINATION (COO)

37200-HL3-307

$125.16

6

METER ASSY., COMBINATION (COO) This part replaces 37200-HL3-611.

37200-HL3-307

$125.16

7

COVER, METER

68108-HL3-A00

$2.23

8

CLAMP, HARNESS

90652-HC4-003

$5.54

9

SCREW, TAPPING (5X16)

93903-25310

$0.59

10

SCREW, TAPPING (5X16) (PO)

93913-25480

$0.83
