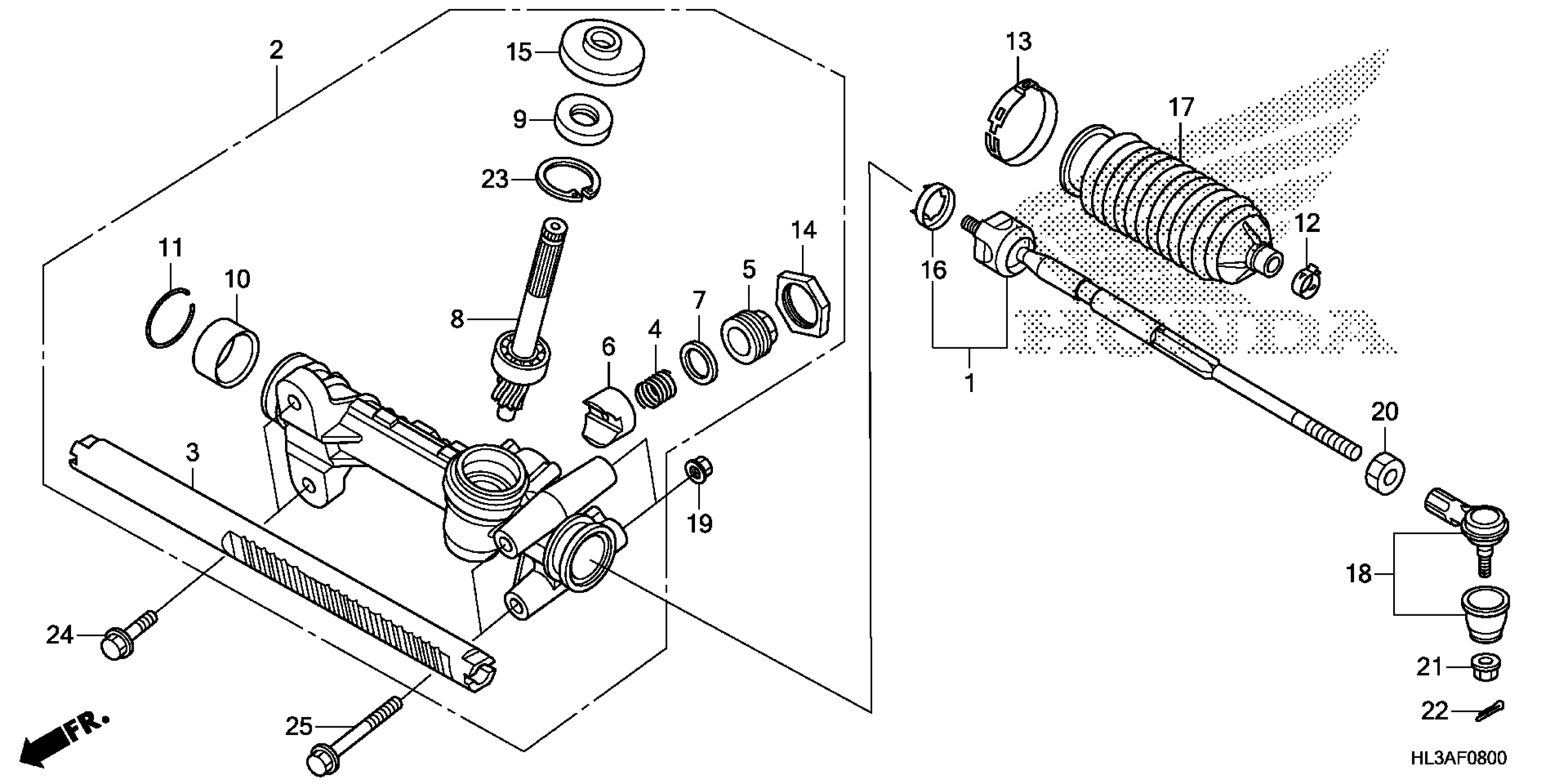

Honda SXS700M2DA (18) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE02E-J4400001 STEERING GEAR BOX@TIE ROD Diagram

END SET, TIE ROD

53010-HL3-A01

$34.80

BOX, STEERING GEAR

53040-HL3-A01

$404.16

RACK, STEERING

53402-HL3-A00

$104.40

SPRING, RACK GUIDE PRESSURE

53413-SH3-003

$7.62

SCREW, RACK GUIDE

53414-679-013

$37.66

GUIDE, STEERING RACK

53416-HL3-A00

$11.62

WASHER, DISK

53418-SC2-003

$7.90

PINION, STEERING

53421-HL3-A01

$48.72

DUST SEAL, STEERING PINION (ARAI)

53426-671-003

$12.20

BUSH, RACK END

53430-HL3-A00

$8.51

RING, SNAP

53431-HL3-A00

$3.46

BAND A, BELLOWS

53448-HL3-A00

$2.69

BAND B, BELLOWS

53449-HL3-A00

$3.92

NUT, LOCK This part replaces 53458-SE0-003.

53458-S01-A51

Unavailable

COVER, PINION DUST

53502-S3A-J01

$6.38

WASHER, TIE ROD LOCK

53536-SR3-000

$5.80

BOOT A, TIE ROD

53537-HL3-A00

$12.99

END, TIE ROD

53540-S47-951

$86.15

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.86

NUT, HEX. (14MM)

94001-14280-0S

$2.34

NUT, FLANGE (12MM)

94050-12080

$2.00

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$0.96

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$0.96

PIN, COTTER (2.5MM)

94201-25300

$0.96

CIRCLIP (INNER) (35MM)

94520-35000

$2.22

BOLT, FLANGE (10X32)

95701-10032-00

$1.34

BOLT, FLANGE (10X105)

95701-10105-08

$4.32
